ABRASION TESTING MACHINE for NATURAL STONES and CONCRETE TILES (R197)

Download DatasheetPrint

Product Code: R197

Category: AGGREGATE

Sub-Category: ABRASION RESISTANCE

• The Abrasion Tester for Natural Stones and Concrete Tiles is used to evaluate the abrasion resistance of natural stones and concrete tiles under standardized conditions.
• The test involves subjecting the specimen's surface to abrasive action using a rotating disc and specified abrasive material, simulating real-world wear scenarios.

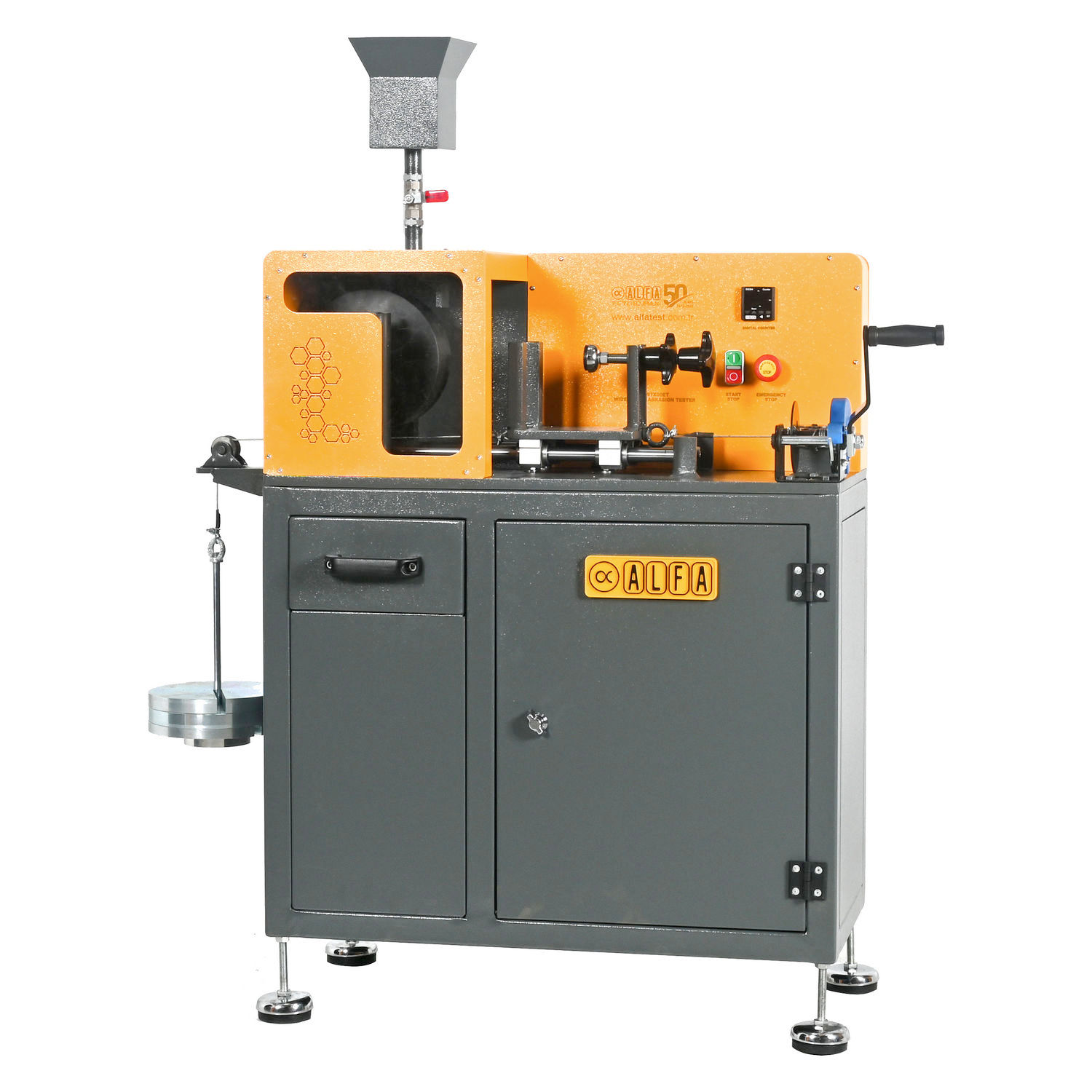

• The apparatus comprises a wide abrasion disc, a storage hopper for abrasive material, a clamping trolley to hold the specimen, and a counterweight system to apply consistent pressure.
• The abrasion disc, with a diameter of 200 mm and thickness of 70 mm, rotates at 75 revolutions per minute, ensuring uniform abrasion across the specimen surface.
• A mobile clamping trolley, mounted on bearings, is propelled towards the rotating disc by a 14 kgf counterweight, maintaining consistent contact during testing.
• The abrasive material used is white fused alumina (corundum) with a grit size of F80, providing reliable and repeatable test results, which should be ordered separately.

STANDARDS

EN 1338 • EN 1339 • EN 1340 • EN 1341 • EN 1342 • EN 12808-2 • EN 14157

TECHNICAL SPECIFICATIONS

• Abrasion Disc Diameter: 200 mm
• Abrasion Disc Thickness: 70 mm
• Rotation Speed: 75 rpm
• Counterweight Mass: 14 kgf
• Power Supply: 220 – 240 V / 50 or 60 Hz

EQUIPPED WITH

• Abrasion Disc
  • Diameter 200 ± 1 mm
  • Thickness 70 ± 1 mm
• Digital Revolution counter

ORDERING INFORMATION
