ABRASIVE CHARGES for R191 (R191 (AC))
Category: Aggregate
Product Code: R191 (AC)
Category: AGGREGATE
Sub-Category: PHYSICAL PROPERTIES

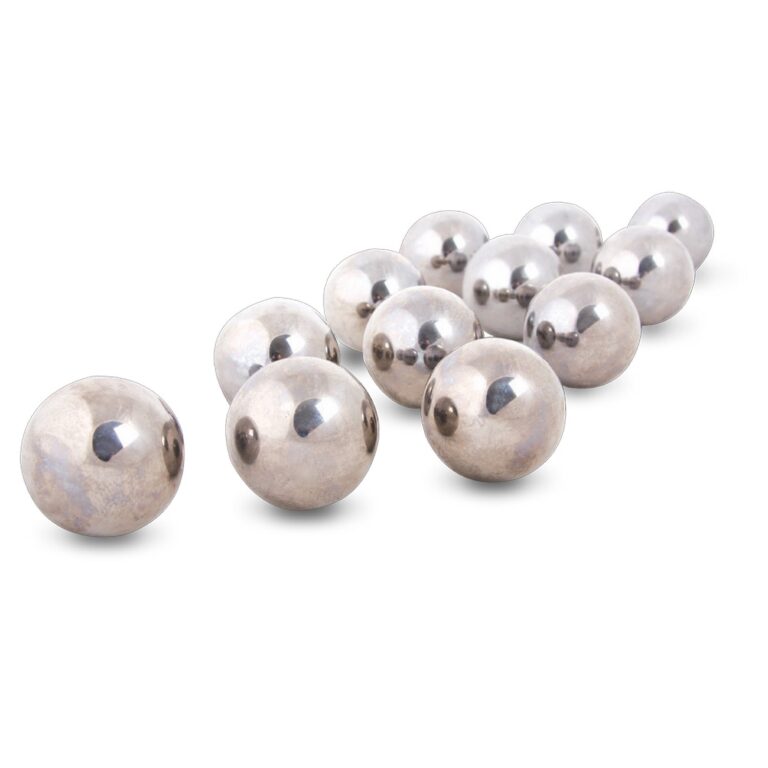

- The Abrasive Charges for the Los Angeles Abrasion Tester (R191) are precision-engineered steel spheres used to simulate the mechanical wear and impact experienced by aggregates in real-world applications.
- These spheres are integral to the Los Angeles Abrasion Test, where they facilitate the assessment of an aggregate's resistance to abrasion and degradation, ensuring the material's suitability for construction purposes.
- Manufactured to comply with international standards, the abrasive charges are available in different sizes and weights to meet specific testing requirements outlined in ASTM C131, ASTM C535, and EN 1097-2.
- The selection of the appropriate abrasive charge set is determined by the grading of the aggregate sample under examination, ensuring accurate and consistent test results.
- Each set of abrasive charges is crafted from high-quality steel, ensuring durability and longevity, even under rigorous testing conditions.
STANDARDS
ASTM C131 • ASTM C535 • EN 1097-2
TECHNICAL SPECIFICATIONS
| Item | ABRASIVE CHARGES SET for R191 – ASTM | ABRASIVE CHARGES SET for R191 – EN | ||
| Set Code | R191P001H | R191P002H | ||
| Standard | ASTM C131 | EN 1097-2 | ||
| Abrasive Charge | Diameter | Ø 47.6 mm | Ø 46.0 mm | Ø 47.6 mm |
| Weight | 440 g | 400 g | 440 g | |
| Individual Code | R191P005H | R191P004H | R191P005H | |
| Quantity | x 5 | x 7 | x 11 | |
ORDERING INFORMATION
| Item Name | Item Code |
| ABRASIVE CHARGES SET for R191 – ASTM | R191P001H |
| ABRASIVE CHARGES SET for R191 – EN | R191P002H |
| NOISE-REDUCTION and SAFETY CABINET for R191 | R191P003H |
| ABRASIVE CHARGE – Ø 46.0 mm / 400 g | R191P004H |
| ABRASIVE CHARGE – Ø 47.6 mm / 440 g | R191P005H |
| PULLEYS SET for R191 (60 Hz Model) | R191P006H |
| LOS ANGELES ABRASION TESTER [60 Hz] | R191X00XK |
| LOS ANGELES ABRASION TESTER [50 Hz] | R191X00XT |
