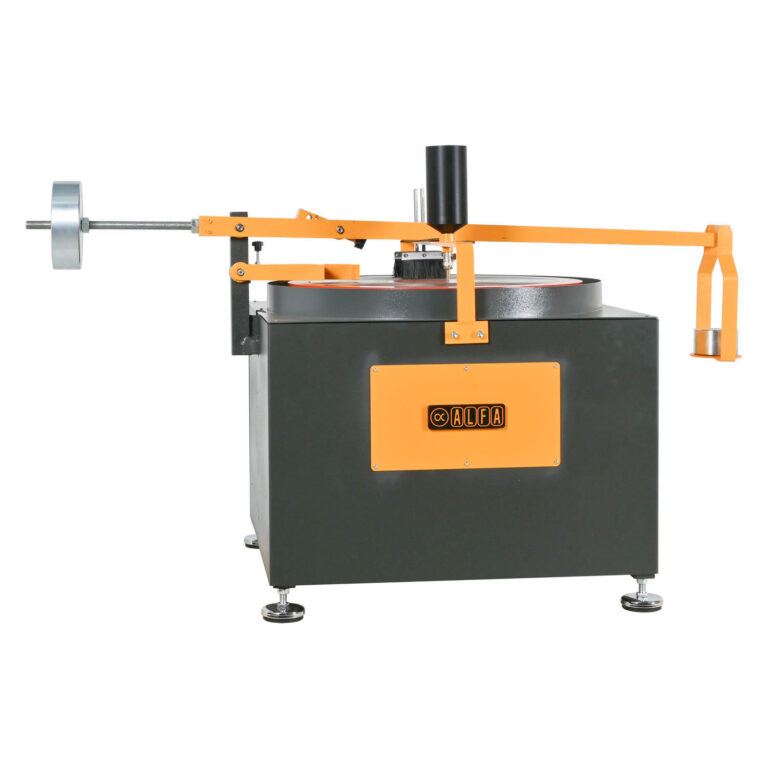

DORRY ABRASION TESTING MACHINE (BOHME) (R199)

Category: Aggregate

Product Code: R199

Category: AGGREGATE

Sub-Category: ABRASION RESISTANCE

  • The Dorry Abrasion Tester – Böhme is used to evaluate the abrasion resistance of aggregates, concrete slabs, natural stones, and paving units under standardized conditions.
  • The apparatus comprises a horizontally positioned steel disc with a 750 mm diameter, providing a defined test track for the abrasive material.
  • During testing, a specimen is subjected to a vertical load of 294 N while the disc rotates at 30 revolutions per minute, simulating real-world wear scenarios.
  • A specified quantity of standard abrasive material is distributed on the disc surface, and the specimen undergoes a set number of cycles to assess wear resistance.
  • The machine features an automatic digital counter that ceases operation upon reaching the predetermined number of revolutions, ensuring precise and repeatable results.
  • Test outcomes are determined by measuring the volume loss of the specimen, providing critical data for quality control and material performance assessment.
  • Abrasive Powder should be ordered separately.

STANDARDS

EN 1338 • EN 1339 • EN 1340 • EN 13748 • EN 13892-3 • EN 14157

TECHNICAL SPECIFICATIONS

  • Horizontal Abrasion Disc Diameter: 750 mm
    Rotation Speed: 30 rpm
    Applied Load: 294 N
    Power Supply: 220 – 240 V / 50 or 60 Hz

EQUIPPED WITH

  • Automatic digital counter
  • Specimen holder
  • Beam-loading device

ORDERING INFORMATION

Item Name Item Code
STANDARD ABRASIVE for R199xxxxx – 1 kg R199P001H
BÖHME ABRASION TESTER [60 Hz] R199X00EK
BÖHME ABRASION TESTER [50 Hz] R199X00ET
