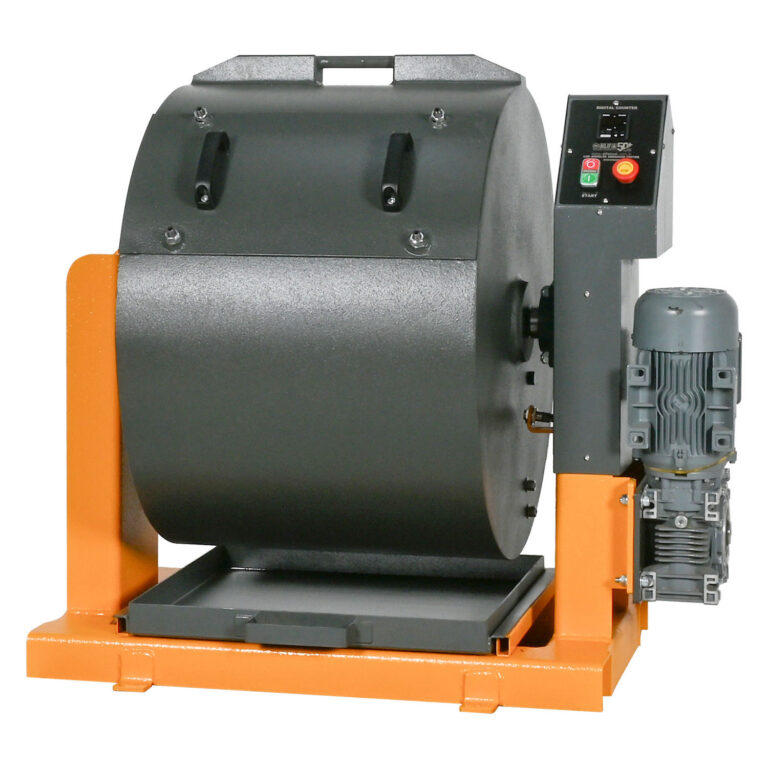

LOS ANGELES ABRASION TESTING MACHINE (R191)

Category: Aggregate

Product Code: R191

Category: AGGREGATE

Sub-Category: ABRASION RESISTANCE

  • The Los Angeles Abrasion Tester is used to evaluate the resistance of coarse aggregates to abrasion and impact, simulating real-world conditions that aggregates face in pavements and other structures.
  • This apparatus assesses the degradation of aggregates through a combination of abrasion, impact, and grinding actions within a rotating steel drum containing a specified number of steel spheres.
  • The test provides an indicator of the relative quality or competence of various sources of aggregate having similar mineral compositions, aiding in material selection for construction projects.
  • The machine features a robust steel cylinder with a wall thickness of 12 mm, an internal diameter of 711 mm, and a length of 508 mm, ensuring durability and compliance with international standards.
  • An automatic digital counter is integrated to display the number of drum revolutions and automatically stop the motor after the required number of revolutions, enhancing test accuracy and repeatability.
  • Abrasive Charges and Noise Reduction and Safety Cabinet should be ordered separately.

STANDARDS

ASTM C131 • ASTM C535 • EN 1097-2 • EN 12697-17 • EN 12697-43 • AASHTO T96

TECHNICAL SPECIFICATIONS

  • Drum Internal Diameter: 711 mm
  • Drum Internal Length: 508 mm
  • Wall Thickness: 12 mm
  • Rotation Speed: 31–33 rpm
  • Digital Counter: Displays drum revolutions; auto-stop feature
  • Power Supply: 220 – 240 V / 50 or 60 Hz

SUPPLIED WITH

  • Collecting tray for post-test material recovery

ORDERING INFORMATION

Item Name Item Code
ABRASIVE CHARGES SET for R191 – ASTM R191P001H
ABRASIVE CHARGES SET for R191 – EN R191P002H
NOISE-REDUCTION and SAFETY CABINET for R191 R191P003H
ABRASIVE CHARGE – Ø 46.0 mm / 400 g R191P004H
ABRASIVE CHARGE – Ø 47.6 mm / 440 g R191P005H
PULLEYS SET for R191 (60 Hz Model) R191P006H
LOS ANGELES ABRASION TESTER [60 Hz] R191X00XK
LOS ANGELES ABRASION TESTER [50 Hz] R191X00XT
