Product Code: R040M
Category: AGGREGATE
Sub-Category: GEOMETRICAL PROPERTIES

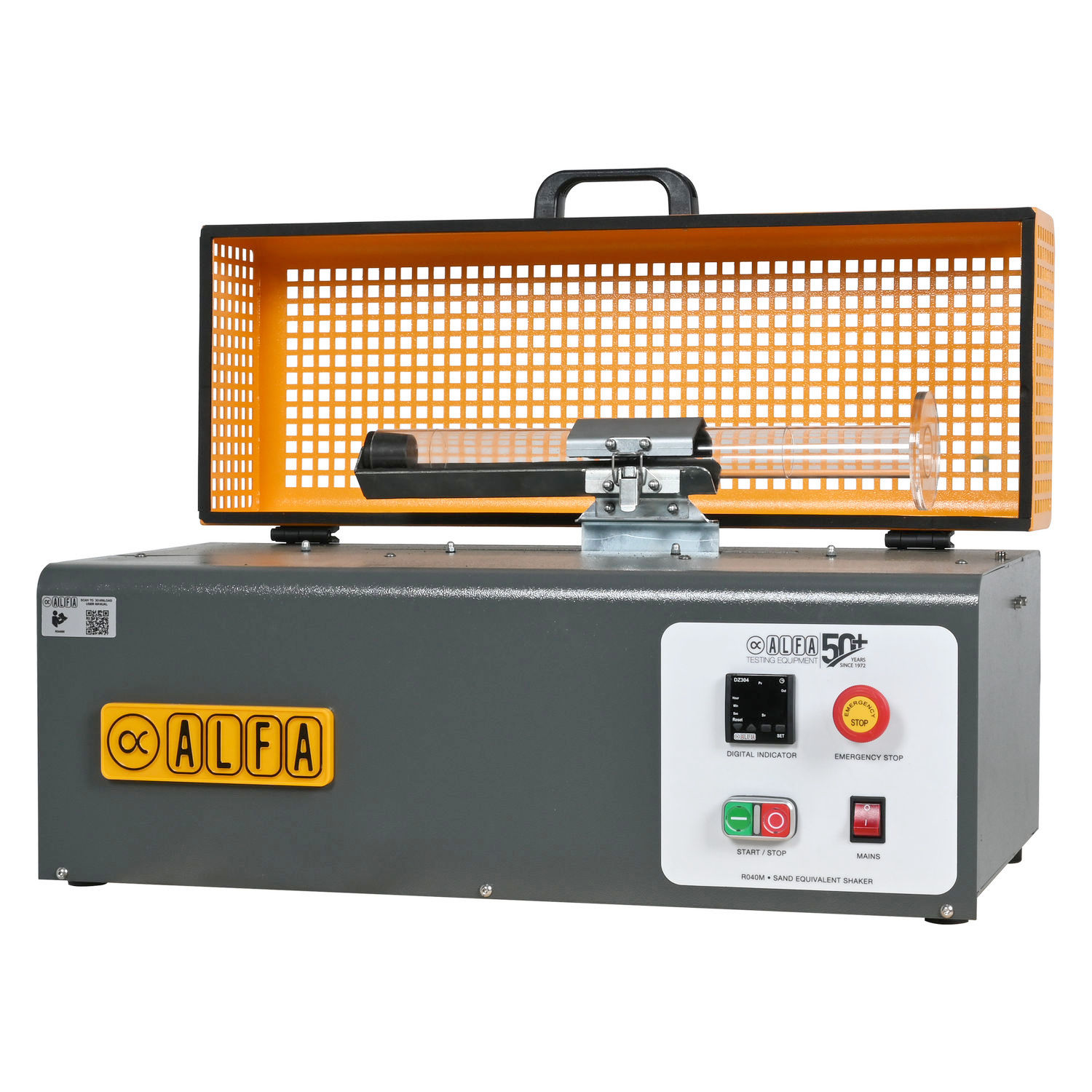

- The Sand Equivalent Shaker is used to provide consistent and uniform shaking of sand equivalent measuring cylinders, ensuring accurate assessment of fine aggregate cleanliness.
- By delivering a standardized reciprocating motion, the shaker minimizes operator-induced variability, enhancing the reliability of test results in both laboratory and field settings.
- The apparatus accommodates both ASTM and EN testing standards, offering adjustable stroke lengths and frequencies to meet specific procedural requirements.
- Equipped with a digital timer and stroke counter, the shaker allows precise control over test durations, automatically ceasing operation upon completion of the set time.
- Safety features include a hinged protective cover that halts operation when opened, ensuring user protection during testing procedures.
STANDARDS
ASTM D2419 • EN 933-8 • AASHTO T176
TECHNICAL SPECIFICATIONS
- Stroke: ~ 200 mm
- Shaking Frequency: ~ 175 strokes per minute
- Adjustable Digital Timer with automatic shut-off
- Safety Features: Hinged protective cover with automatic stop function
- Power Supply: 220 – 240 V / 50 or 60 Hz
ORDERING INFORMATION
| Item Name | Item Code |
| SAND EQUIVALENT SHAKER – Manual | R040H00XH |
| SAND EQUIVALENT SHAKER – Motorized [60 Hz] | R040M00XK |
| SAND EQUIVALENT SHAKER – Motorized [50 Hz] | R040M00XT |
| GRADUATED CYLINDER (Full Graduations) – ASTM | R040P001H |
| GRADUATED CYLINDER (Two Graduations) – EN | R040P002H |
| WEIGHT FOOT – ASTM | R040P003H |
| WEIGHT FOOT – EN | R040P004H |
| CLAMP STAND SET | R040P006H |
| SIPHON ASSEMBLY | R040P007H |
| MEASURING CAN (85 ml) – ASTM | R040P008H |
| MEASURING CAN (200 ml) – EN | R040P009H |

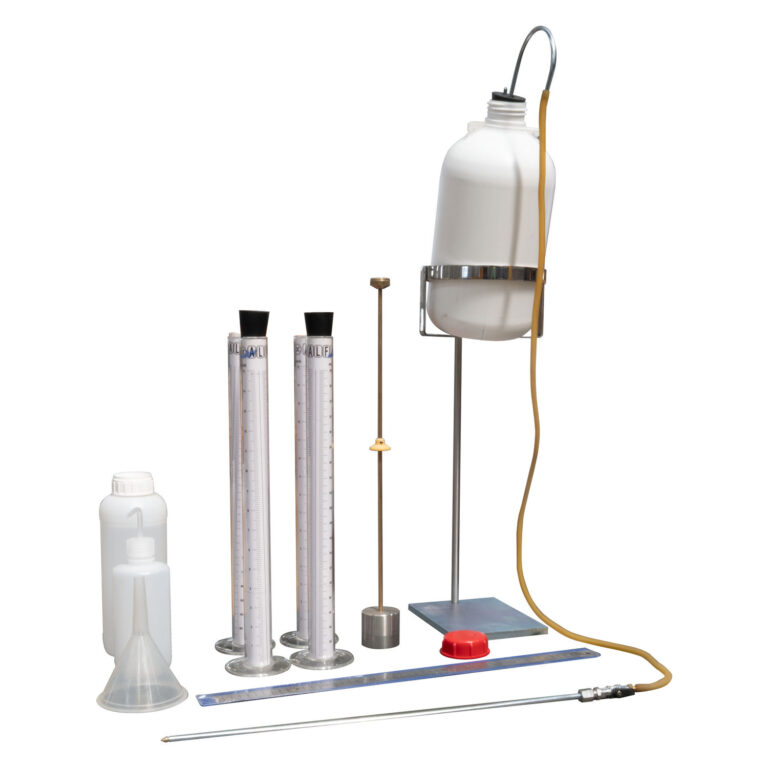

| SAND EQUIVALENT SET (Basic Set) – ASTM | R040X01AH |
| SAND EQUIVALENT SET (Basic Set) – EN | R040X01EH |
| SAND EQUIVALENT SET (Complete Set) – ASTM | R040X02AH |
| SAND EQUIVALENT SET (Complete Set) – EN | R040X02EH |
Keywords: Sand Equivalent Shaker, ASTM D2419, AASHTO T176, EN 933-8, fine aggregate testing, sand equivalent test, aggregate cleanliness, laboratory shaker, digital timer, construction materials testing
