Product Code: R032
Category: AGGREGATE
Sub-Category: PARTICLE SHAPE

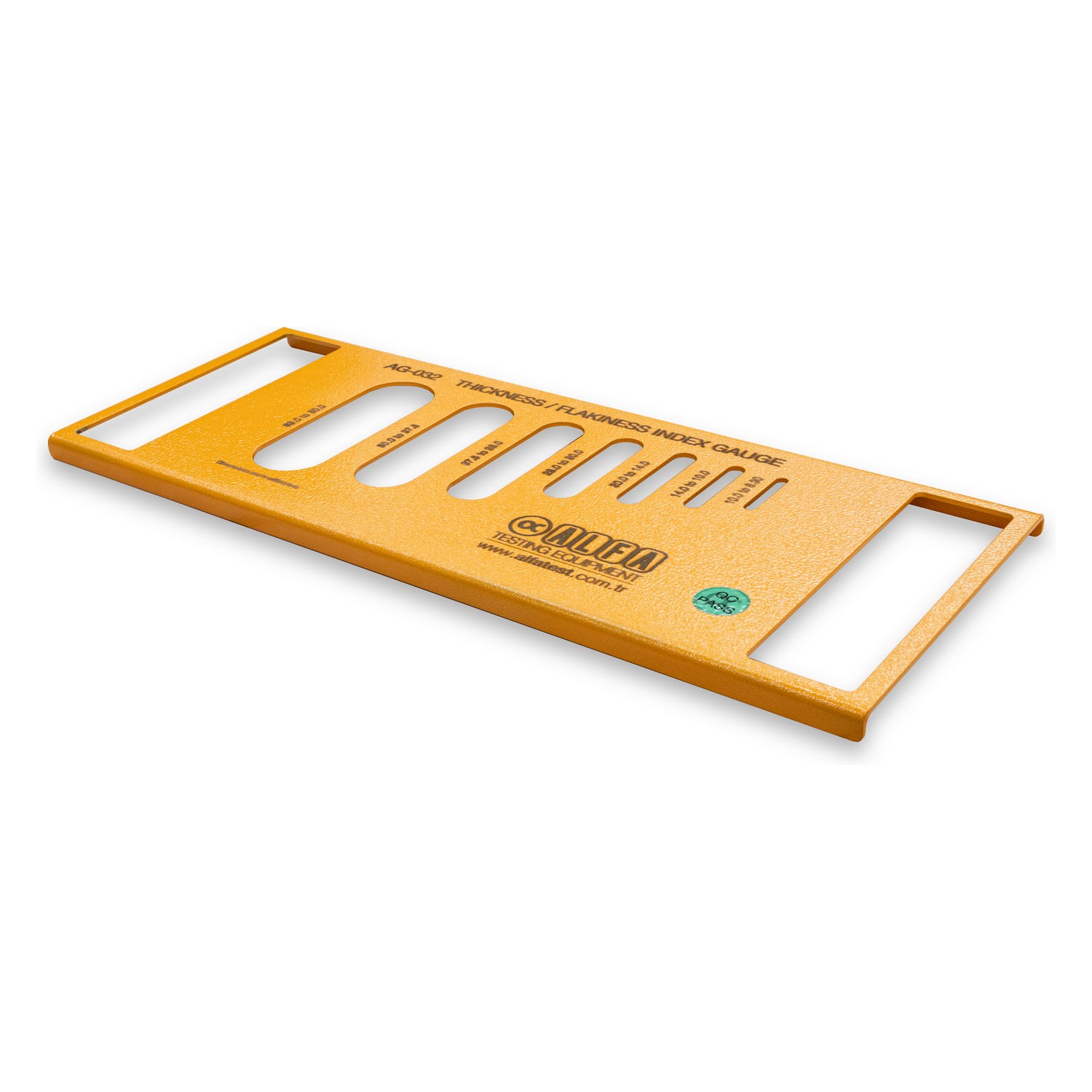

- The Thickness Gauge is utilized to assess the flakiness index of aggregate particles, identifying those with a thickness less than 0.6 times their mean sieve size.
- This evaluation is essential for determining the suitability of aggregates in construction applications, as flaky particles can adversely affect the strength and durability of concrete and asphalt mixtures.
- The gauge features seven precision-cut slots, each corresponding to specific sieve size ranges, facilitating accurate and efficient classification of aggregate samples.
- Constructed from heavy-gauge steel, the device ensures durability and compliance with BS 812-105.1 standards, providing reliable performance in laboratory settings.
STANDARDS
BS 812-105.1
TECHNICAL SPECIFICATIONS
- Slot Sizes (W x L):
- 4.9 x 30 mm
- 7.2 x 40 mm
- 10.2 x 50 mm
- 14.4 x 60 mm
- 19.7 x 80 mm
- 26.3 x 90 mm
- 33.9 x 100 mm
- Material: Heavy-gauge steel with powder-coating
ORDERING INFORMATION
| Item Name | Item Code |
| THICKNESS GAUGE (Flakiness Index) | R032X00BH |
