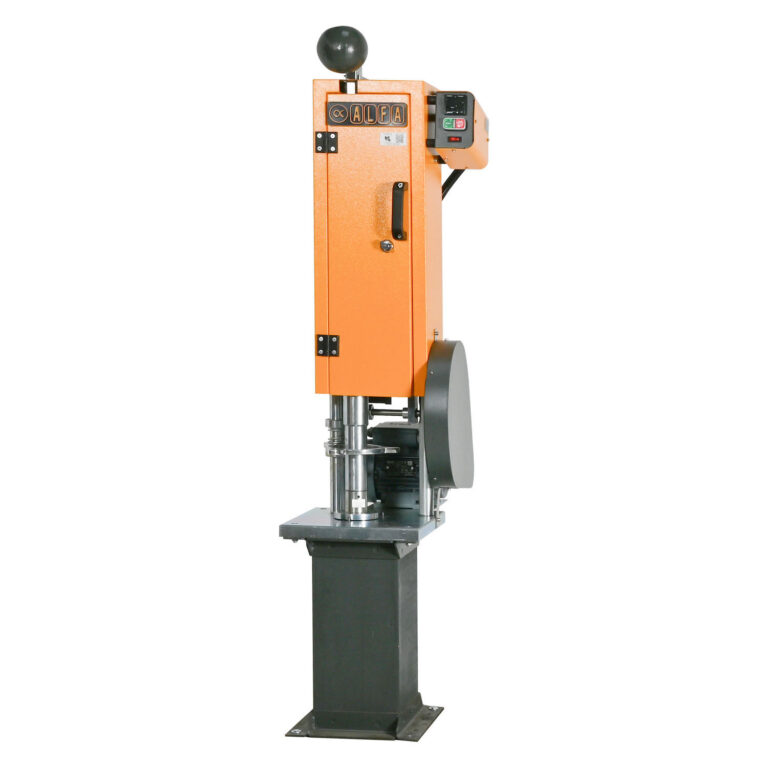

MARSHALL COMPACTOR, Automatic (A015)
Category: Asphalt
Product Code: A015
Category: ASPHALT
Sub-Category: MARSHALL STABILITY
- Used to determine the resistance of asphalt sample to plastic flow. The test is performed in a fully automatic mechanism and programmed to stop automatically at the required number of blows.
- Supplied with the standard height and rammer weight according to ASTM/EN standards.
- Equipped with a blow counter, wooden pedestal and quick action clamping.
STANDARDS
ASTM D6926 • EN 12697-10 • AASHTO t245
TECHNICAL SPECIFICATIONS
ASTM Model:
- Blow Rate: 55 ± 5 blows per minute
- Rammer Diameter: 100.33 mm ± 0.25 mm
- Rammer Weight: 4536 g ± 9 g
- Drop Height: 457.205 mm ± 0.635 mm
- 220 – 240 V / 50 – 60 Hz
EN Model:
- Equipped with safety guard
- Wooden pedestal: 200 x 200 x 450 (h) mm
- Concrete base: 450 x 450 x 200 (h) mm
- Blow Rate: 50 blows in 55/60 seconds
- Rammer Weight: 4535 g ± 15 g
- Drop Height: 460 ± 3 mm
- 220 – 240 V / 50 – 60 Hz
ORDERING INFORMATION
| Item | Code |
| MARSHALL COMPACTOR, AUTOMATIC, 4″ – ASTM | A015M04AT |
| MARSHALL COMPACTOR, AUTOMATIC, 4″ – ASTM [60 Hz] | A015M04AK |
| NOISE-REDUCTION and SAFETY CABINET for A015M04A | A015P001H |
| NOISE-REDUCTION and SAFETY CABINET for A015M04E | A015P002H |
| MARSHALL COMPACTOR, AUTOMATIC – EN | A015M04EU |
| MARSHALL COMPACTOR, AUTOMATIC, 4″ and 6″ – ASTM | A015M06AT |
| MARSHALL COMPACTOR, AUTOMATIC, 4″ and 6″ – ASTM [60 Hz] | A015M06AK |
| SPARE HAMMER for A015M – 4″ | A015P003H |
| SPARE CHAIN for A015M – 4″ | A015P004H |
