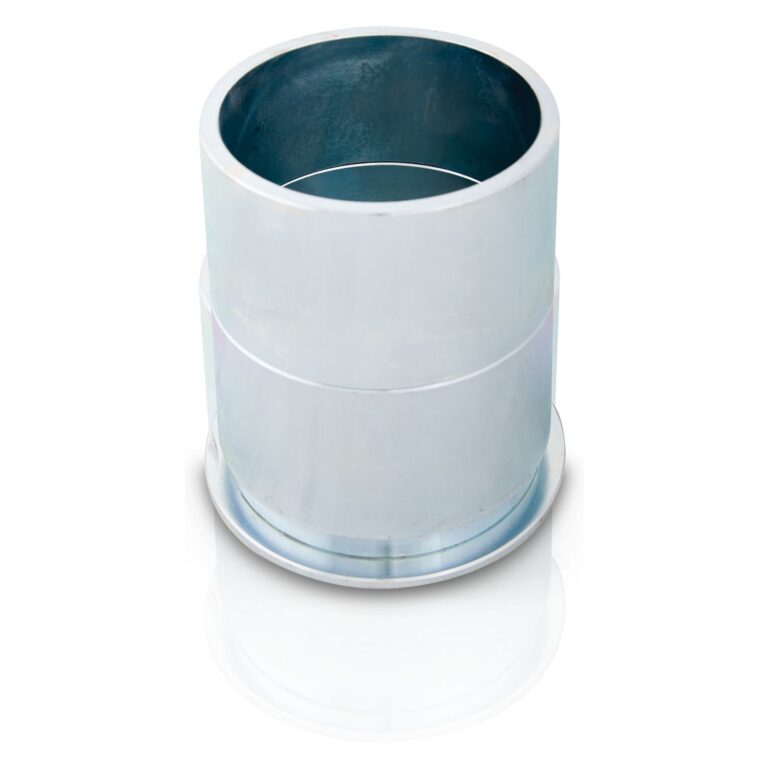

MARSHALL MOULD (A010)
Category: Asphalt
Product Code: A010
Category: ASPHALT
Sub-Category: MARSHALL STABILITY
- Used in preparing and compacting asphalt specimens. The prepared specimen is then used in Marshall Stability tests to determine the strength and flow of that specific Marshall Mix.
- The mould is made of a heavy-duty steel and protected against corrosion.
- The mould is supplied with base plate and collar.
STANDARDS
ASTM D6926 • EN 12697-10 • AASHTO t245
TECHNICAL SPECIFICATIONS
- Made of Galvanized Steel
- Diameter:
- Ø 4” B-010/4
- Ø 6” B-010/6
ORDERING INFORMATION
| Item | Code |
| MARSHALL MOULD – 4″ | A010X04AH |
| MARSHALL MOULD – 6″ | A010X06AH |
| COLLAR for MARSHALL MOULD – 4″ | A010P001H |
| MOULD BODY for MARSHALL MOULD – 4″ | A010P002H |
| BASE PLATE for MARSHALL MOULD – 4″ | A010P003H |
| COLLAR for MARSHALL MOULD – 6″ | A010P004H |
| MOULD BODY for MARSHALL MOULD – 6″ | A010P005H |
| BASE PLATE for MARSHALL MOULD – 6″ | A010P006H |
| FILTER PAPER for MARSHALL MOULD – 4″ | A010P007H |
| FILTER PAPER for MARSHALL MOULD – 6″ | A010P008H |
