Product Code: A047
Category: ASPHALT
Sub-Category: SURFACE PROPERTIES
- Used to measure individual irregularities that can be attributed to quality defects in both newly constructed surface courses of roads, airfields, and other trafficked surfaces.
- This test method cannot be used to gather information about the overall profile or general unevenness. Single irregularities are inherently random, and as a result, there are no specified routine sampling rates or precision data for them.

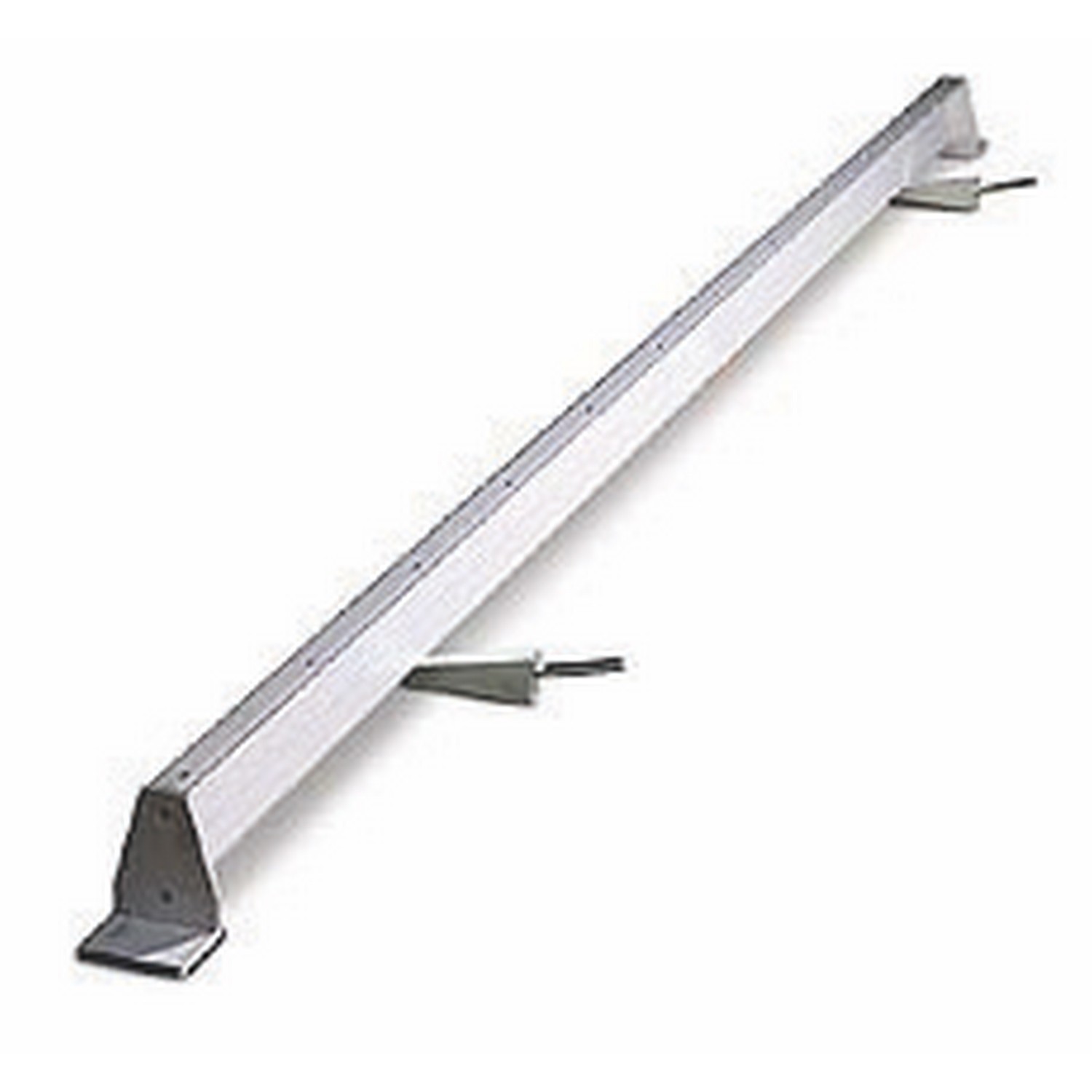

- A straightedge is utilized to determine the distance of a surface from the plane of its measuring edge. The measurement edge of the straightedge must be easily distinguishable.
- The straightedge has a length of 3 meters and a sturdy construction, ensuring that when suspended at its endpoints, its measuring edge remains within ±0.5 mm of a true plane at any point. Additionally, the straightedge must be perfectly straight along its entire length.
- To measure the distance between the measurement edge and the surface, a calibrated wedge of length (300 ± 1) mm and width (25 ± 1) mm shall be used. The wedge will have permanent markings on the slope plane, with increments of 1 mm for the first 10 mm and 2.5 mm increments beyond that point. The true height at each marked increment must be accurate to ±0.1 mm.
STANDARDS
EN 13036-7 • BS 8420
ORDERING INFORMATION
| Item | Code |
| MOT STRAIGHTEDGE, EN – 3 m | A 047 X03E H |
| MOT STRAIGHTEDGE, BS – 4 m | A 047 X04B H |
| WEDGE for MOT STRAIGHT EDGE | A 047 P001 H |
