Product Code: A035
Category: ASPHALT
Sub-Category: BITUMEN PROPERTIES
- Used to determine the percentage of bitumen in the asphalt pavement mixtures.

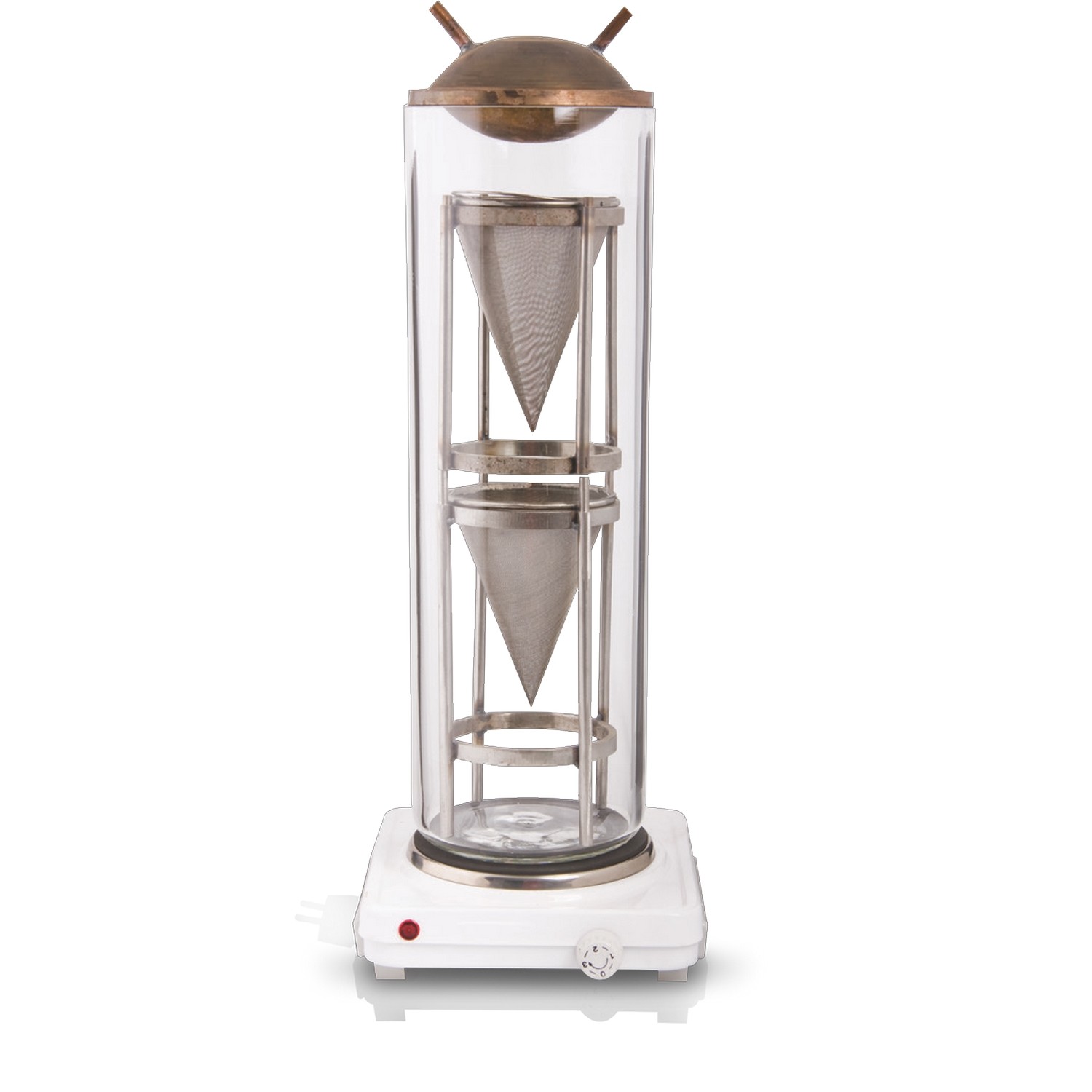

- Equipped with a glass cylinder, two wire mesh cones and brass condenser.
- Filter Papers should be ordered separately
STANDARDS
ASTM D2172 • AASHTO T-164
TECHNICAL SPECIFICATIONS
| Code | A-035/1 | A-035/4 |
| Capacity | 1000 g | 4000 g |
| Glass Jar Cylinder | A-035/1/G | A-035/4/G |
| Wire Mesh Cone (Set of 2) | ● | ● |
| Thermometer | ● | ● |
| Hotplate | GL-11/S1 | GL-11/S1 |
| Brass Condenser | ● | ● |
ORDERING INFORMATION
| Item | Code |
| REFLUX BITUMEN EXTRACTOR – 1000 g | A035X10XU |
| REFLUX BITUMEN EXTRACTOR – 4000 g | A035X40XU |
| CONDENSER for A-035/1 | A035P001H |
| REFLUX BITUMEN EXTRACTOR GLASS – 1000 g | A035P002H |
| MESH CONES SET for REFLUX BITUMEN EXTRACTOR – 1000 g | A035P003H |
| CONDENSER for A-035/4 | A035P004H |
| REFLUX BITUMEN EXTRACTOR GLASS – 4000 g | A035P005H |
| MESH CONES SET for REFLUX BITUMEN EXTRACTOR – 4000 g | A035P006H |
| FILTER PAPER – Ø 40 cm | A035P007H |
