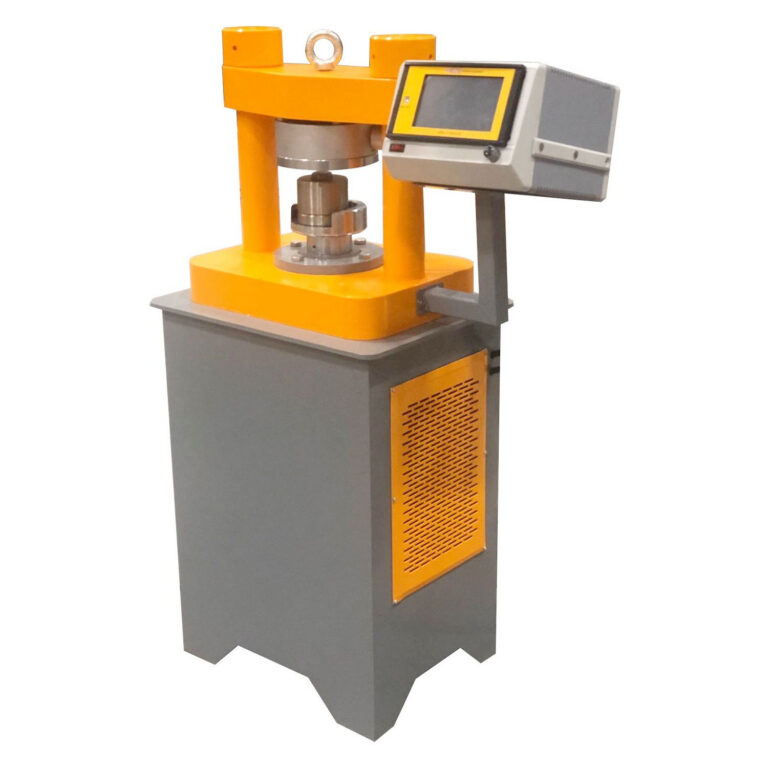

CEMENT COMPRESSION TESTING MACHINE (C002)

Category: Cement

Product Code: C002

Category: CEMENT

Sub-Category: STRENGTH

  • The Cement Compression Tester is engineered for accurate determination of compressive strength in cement and mortar cube specimens, ensuring adherence to international testing standards.
  • Features a robust two-column frame design that provides stability and uniform load distribution during testing procedures.
  • Incorporates a Digital Touch Screen Controlling Unit, facilitating real-time monitoring, automatic load rate adjustments based on specimen dimensions, and user-friendly calibration.
  • Offers automatic test termination upon specimen failure, enhancing operator safety and preserving equipment integrity.
  • Capable of testing various cube specimen sizes, including 40 mm, 50 mm and 70 mm, accommodating diverse laboratory requirements (jigs should be ordered separately).

STANDARDS

ASTM C109 • ASTM C348 • ASTM C349 • ASTM C1194 • EN 196-1 • EN 1015-11 • EN 13892-2 • BS 4550 • EN ISO 13503-2

TECHNICAL SPECIFICATIONS

  • Frame Type: Rigid 2-Column
  • Test Type: Compression
  • Operation: Full Automatic
  • Control System: Digital Touch Screen Controlling Unit
  • Load Rate Control: Automatic, based on specimen dimensions
  • Test Termination: Automatic upon specimen failure
  • Display: Real-time graph with maximum load and stress indicators
  • Calibration: User-friendly, password protected
  • Power Supply: 220–240 V / 50–60 Hz

EQUIPPED WITH

  • Digital Touch Screen Controlling Unit

ORDERING INFORMATION

Item Name Item Code
CEMENT COMPRESSION TESTER – 250 kN C002A25XU
CEMENT COMPRESSION TESTER – 600 kN C002A60XU
