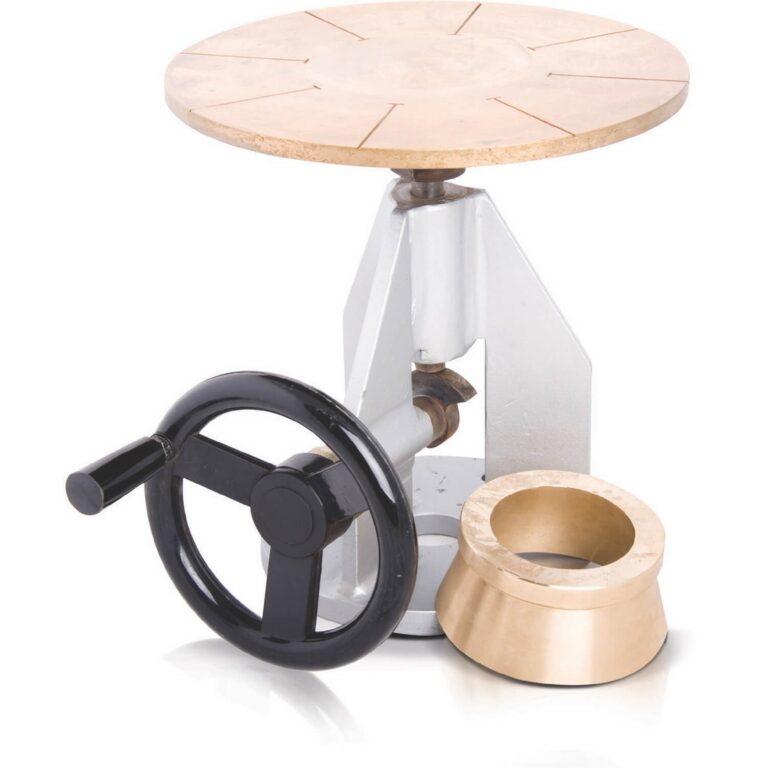

CEMENT FLOW TABLE (Manual) (C021)

Category: Cement

Product Code: C021

Category: CEMENT

Sub-Category: WORKABILITY & CONSISTENCY

  • The Cement Flow Table is designed to assess the consistency and workability of cement mortars and hydraulic cement pastes by measuring their flow characteristics under standardized conditions.
  • This apparatus is essential for quality control in construction materials testing, ensuring that cementitious mixtures meet the required performance criteria for various applications.
  • Constructed with a robust brass or stainless steel table top, the flow table provides a durable and stable platform for conducting flow tests, minimizing variability in results.
  • The inclusion of a conical brass mould and a standardized tamper allows for the preparation of uniform specimens, facilitating accurate and repeatable measurements of flow diameter.
  • Available in both manual and motorized versions, the flow table accommodates different testing needs, with the motorized model offering automated lifting and dropping cycles for enhanced efficiency and consistency.
  • The motorized version of the Cement Flow Table enhances testing efficiency by automating the lifting and dropping cycles. Equipped with a control unit, it allows for precise programming of the number of drops, ensuring consistent and repeatable results. This automation minimizes operator variability and is particularly beneficial for high-throughput laboratories where uniformity and time efficiency are paramount. By reducing manual intervention, the motorized model not only improves accuracy but also enhances safety during testing procedures.

STANDARDS

ASTM C230 • ASTM C1437 • ASTM C109 • EN 459-2 • EN 1015-3 • EN 13279-2 • AASHTO T132

TECHNICAL SPECIFICATIONS

Standard ASTM C230 • ASTM C1437 • ASTM C109 • AASHTO T132 EN 459-2 • EN 1015-3 • EN 13279-2
Operation Manual or Motorized Manual or Motorized
Top Table Brass
Ø 10″ (Ø 254 mm)		 Stainless Steel
Ø 300 mm
Drop height 1/2″ (12.7 mm) 10 mm
Brass conical mould Ø 2.75″ / Ø 4.00″ x 2″
Ø 70 mm / Ø 100 mm x 50 mm		 Ø 70 mm / Ø 100 mm x 60 mm
Tamper Wood
1/2″ x 1″ x 5″		 Metal
Ø 40 mm, 250 g

SUPPLIED WITH

  • Conical mould
  • Tamper
  • Motorized models include a control unit for automated operation

ORDERING INFORMATION

Item Name Item Code
CEMENT FLOW TABLE – ASTM C021H00AH
CEMENT FLOW TABLE – EN C021H00EH
MOTORIZED CEMENT FLOW TABLE – ASTM [60 Hz] C021M00AK
MOTORIZED CEMENT FLOW TABLE – ASTM [50 Hz] C021M00AT
MOTORIZED CEMENT FLOW TABLE – EN [60 Hz] C021M00EK
MOTORIZED CEMENT FLOW TABLE – EN [50 Hz] C021M00ET
BRASS CONICAL MOULD – ASTM C021P001H
BRASS CONICAL MOULD – EN C021P002H
TAMPER – ASTM C021P003H
TAMPER – EN C021P006H
