CEMENT VIBRATING MACHINE (C126)

Category: Cement

Product Code: C126

Category: CEMENT

Sub-Category: SPECIMEN PREPARATION

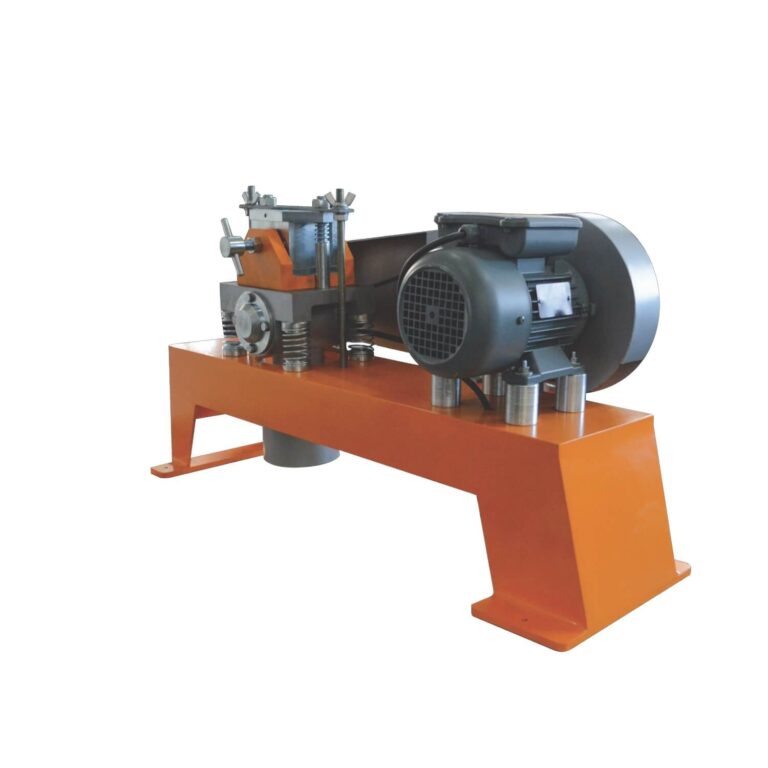

  • The Cement Vibrating Machine is engineered for the compaction of cement mortar cubes measuring 70.7 mm, ensuring uniform density and eliminating air voids for accurate compressive strength testing.
  • Operating at a frequency of 12,000 cycles per minute, the machine provides consistent vibration, facilitating the preparation of high-quality mortar specimens in compliance with international standards.
  • The robust construction includes a steel bed and a vibrator mounted on coiled springs, housing a revolving eccentric shaft driven by a motor through an endless belt, delivering reliable performance over extended use.
  • A mould clamp is integrated into the design, allowing secure placement and filling of the cube moulds during the compaction process.
  • Moulds should be ordered separately.

STANDARDS

BS 4550

TECHNICAL SPECIFICATIONS

  • Vibration Frequency: 12,000 cycles per minute
  • Mould Size Compatibility: 70.7 mm cube moulds
  • Power Supply: 220 – 240 V / 50 – 60 Hz

ORDERING INFORMATION

Item Name Item Code
VIBRATING MACHINE for 70.7 mm CUBE MOULDS [60 Hz] C126X00BK
VIBRATING MACHINE for 70.7 mm CUBE MOULDS [50 Hz] C126X00BT
