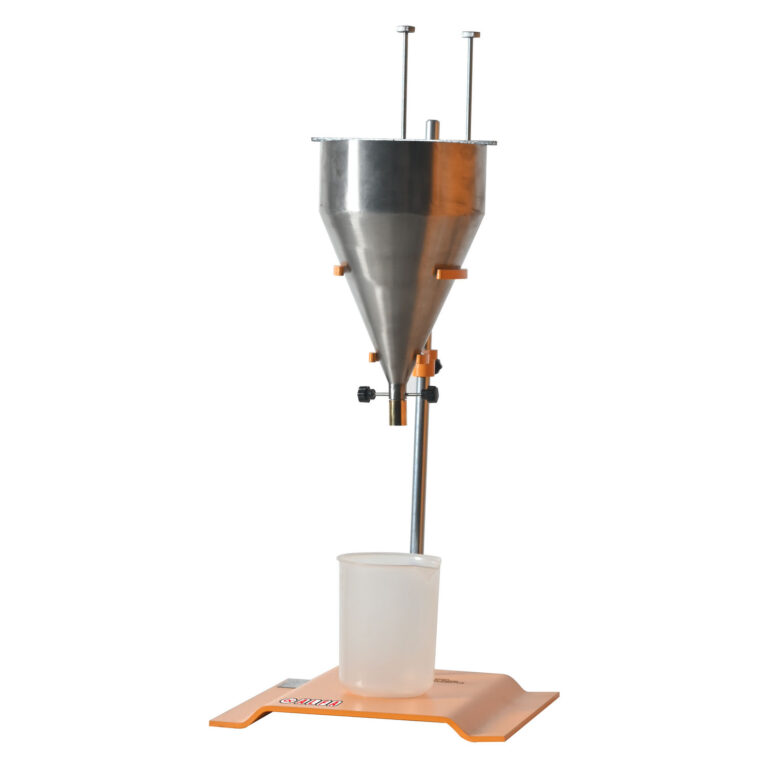

GROUT FLOW CONE APPARATUS (C024)
Category: Cement
Product Code: C024
Category: CEMENT
Sub-Category: FLUIDITY
- The Grout Flow Cone Apparatus is engineered to determine the flowability of fluid hydraulic cement grouts by measuring the time of efflux through a standardized cone.
- This method is crucial for evaluating the consistency of grouts used in preplaced-aggregate concrete and other applications, ensuring optimal performance and workability.
- Constructed from durable materials, the apparatus features a precision-machined cone with a replaceable orifice, facilitating accurate and repeatable measurements.
- The design includes a stable stand and a graduated beaker for collecting effluxed grout, allowing for efficient testing in both laboratory and field environments.
- Compliance with international standards ensures the apparatus's suitability for quality control and specification compliance in various construction projects.
STANDARDS
ASTM C939 • EN 445
TECHNICAL SPECIFICATIONS
| Standard | ASTM C939 | EN 445 |
| Upper Diameter | Ø 7” (178 mm) | Ø 152 mm |
| Cone Height | 7.5″ (190 mm) | 280 mm |
| Discharge Opening | Ø 1/2” (12.7 mm) | 10 mm |
| Level Indicator | x2 | N/A |
| Volume of Grout | 1725 ml | 1700 ml |
| Mesh | N/A | Aperture ≤ 2 mm |
SUPPLIED WITH
- 1000 ml graduated beaker
- Stable stand
ORDERING INFORMATION
| Item Name | Item Code |
| GROUT FLOW CONE APPARATUS – ASTM C939 | C024X00AH |
| GROUT FLOW CONE APPARATUS – EN 445 | C024X00EH |
| GROUT FLOW CONE APPARATUS – ASTM D6449 | C024X01AH |
