Product Code: C018
Category: CEMENT
Sub-Category: PHYSICAL PROPERTIES

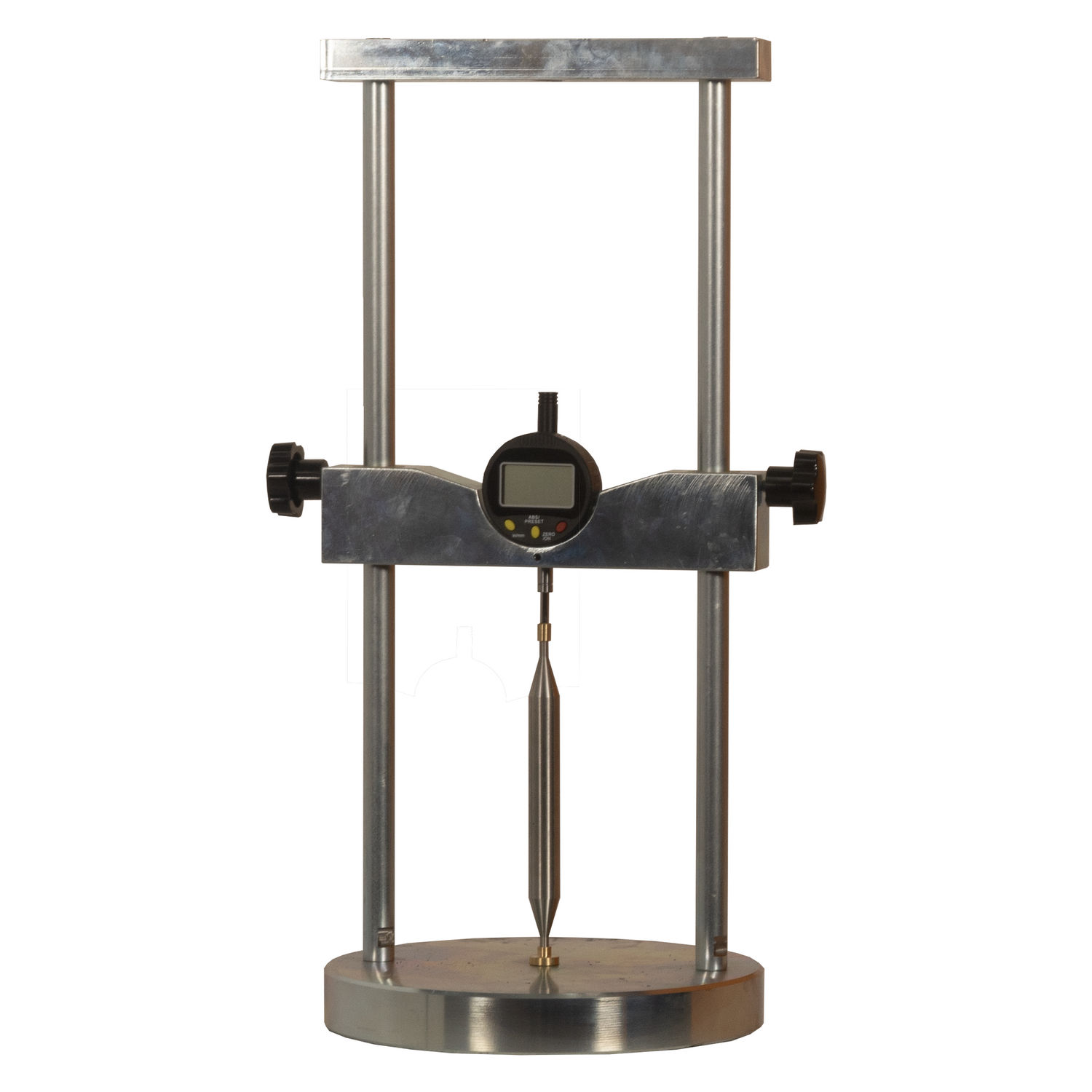

- The Length Comparator is a precision instrument designed to measure length changes in hardened cement paste, mortar, and concrete prisms, essential for assessing dimensional stability and potential expansion or shrinkage.
- Equipped with a high-resolution gauge (12.7 mm travel), it ensures accurate and repeatable measurements, facilitating compliance with stringent testing standards.
- The apparatus features a sturdy two-column steel frame with an adjustable top anvil, accommodating specimens of varying lengths up to 300 mm, enhancing versatility in testing applications.
- A reference bar is utilized for calibration, providing a stable baseline for precise length change measurements over time.
- The comparator is compatible with various specimen sizes and configurations, aligning with international standards for evaluating the dimensional stability of cementitious materials.
- Reference Rods should be ordered separately.
STANDARDS
ASTM C151 • ASTM C490 • EN 12617-4 • EN 12808-4 • EN 1367-4 • EN 680
TECHNICAL SPECIFICATIONS
- Maximum Specimen Length: 300 mm
- Frame: Two-column steel with adjustable top anvil
AVAILABLE MODELS
- Digital Length Comparator:
- Gauge Type: Digital
- Gauge Travel: 12.7 mm
- Resolution: 0.001 mm
- Analog Length Comparator:
- Gauge Type: Mechanical
- Gauge Travel: 12.7 mm
- Resolution: 0.002 mm
ORDERING INFORMATION
| Item Name | Item Code |
| REFERENCE ROD – 160 mm | C018P001H |
| REFERENCE ROD – 200 mm | C018P002H |
| REFERENCE ROD – 250 mm | C018P003H |
| REFERENCE ROD – 254 mm | C018P004H |
| REFERENCE ROD – 280 mm | C018P005H |
| LENGTH COMPARATOR wıth DIGITAL DIAL | C018X01XB |
| LENGTH COMPARATOR wıth ANALOG DIAL | C018X02XH |
| LENGTH COMPARATOR wıth LPDT | C018X03XH |
