Product Code: B185
Category: CONCRETE
Sub-Category: FRESH CONCRETE TESTS
- Used to determine the compacting factor of concrete of low, medium, and high workability.

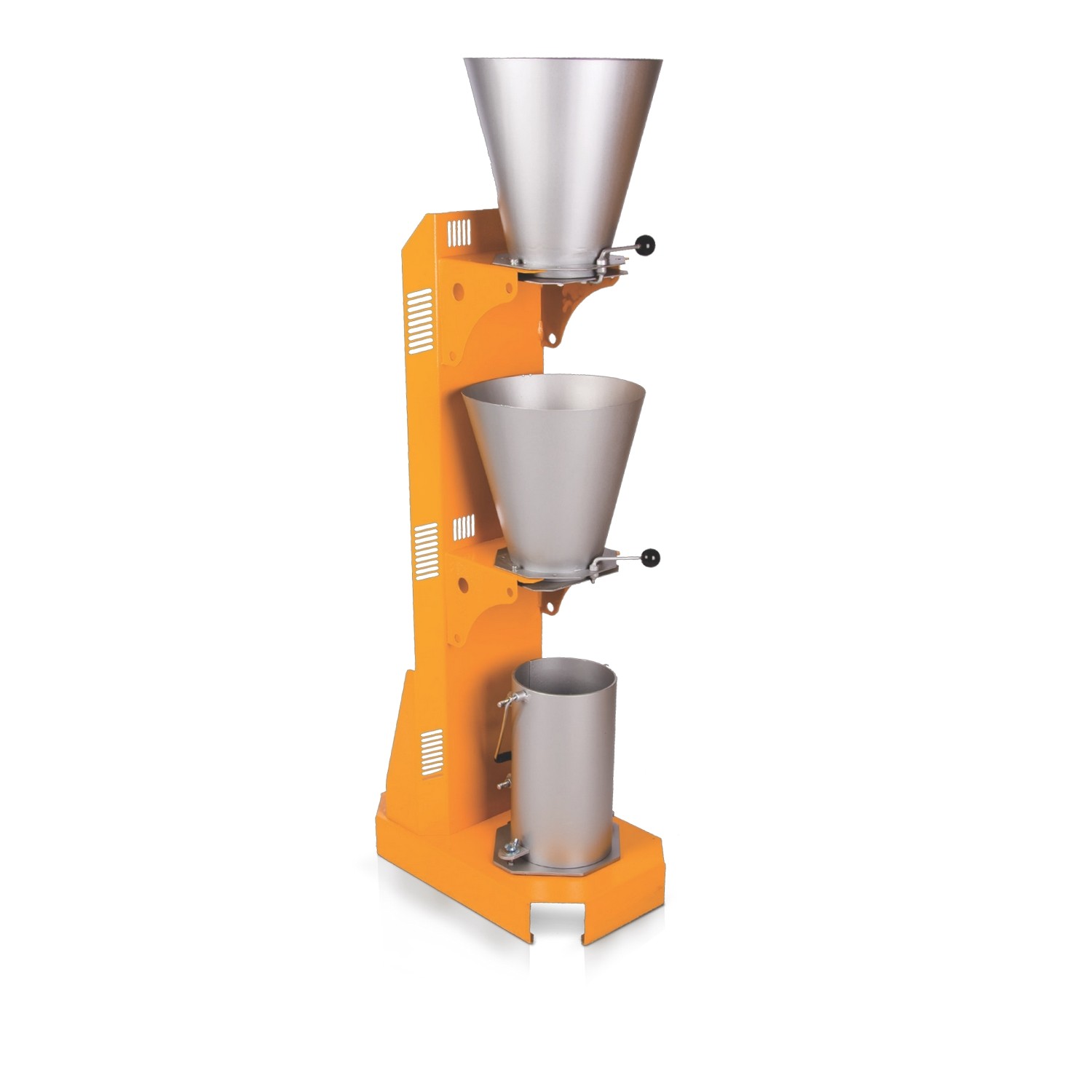

- The apparatus consists of two conical hoppers attached above a cylinder, that are aligned on a robust steel frame.
- Each hopper is equipped with a hinge for a Quick Release mechanism.
- The compacting factor is the ratio between the weight of the concrete, which is partially compacted in the cone, to the weight of the fully compacted concrete in the cylinder.
- Both the hoppers and cylinder are of rigid construction and made of metal not readily attacked by cement paste.
STANDARDS
BS 1881-103
TECHNICAL SPECIFICATIONS
| B185 | Upper Hopper | Lower Hopper | Bottom Cylinder Mould |
| Upper Diameter | Ø 260 mm | Ø 240 mm | Ø 150 |
| Lower Diameter | Ø 130 mm | Ø 130 mm | – |
| Internal Height | 280 mm | 240 mm | 285 mm |
SUPPLIED WITH
- Tamping Rod
- A round, smooth, straight steel rod
- Both ends rounded to a hemispherical tip
- Ø16 mm x 600 mm
ORDERING INFORMATION
| Item | Code |
| COMPACTING FACTOR APPARATUS | B 185 X00B H |
