Product Code: B008
Category: CONCRETE
Sub-Category: STRENGTH
- Supplied with a graphical LCD Data Acquisition Control System and an ability to store and report the results.
- The calibration for the equipment can be easily done on 5 pts.
- Pipe length and diameter should be specified at the time of inquiry.
STANDARDS
ASTM C301 • ASTM C497 • EN 1916
TECHNICAL SPECIFICATIONS
| Capacity (kN) | 400 | 600 | 1000 |
| Pipe Diameter (mm) | 200 – 1500 | 200 – 2000 | 200 – 3700 |
| Pipe Length (mm) | 500 – 1500 | 500 – 2000 | 1000 – 3000 |
ORDERING INFORMATION
| Item | Code |

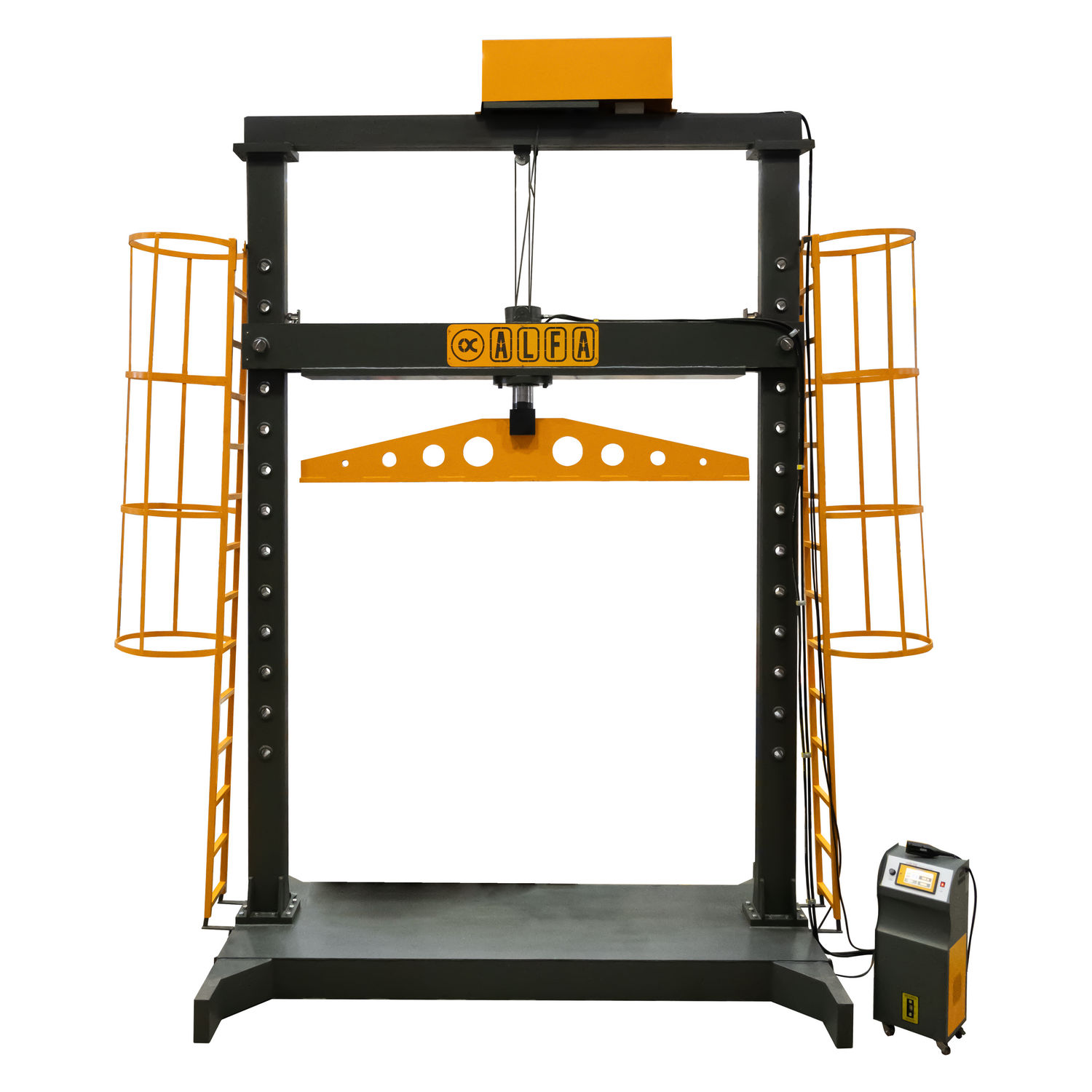

| CONCRETE PIPE TESTING MACHINE – 400 kN | B008A04XU |
| CONCRETE PIPE TESTING MACHINE – 600 kN | B008A06XU |
| CONCRETE PIPE TESTING MACHINE – 1000 kN | B008A10XU |
| V-SHAPED SUPPORT – 1 m | B008P001H |
