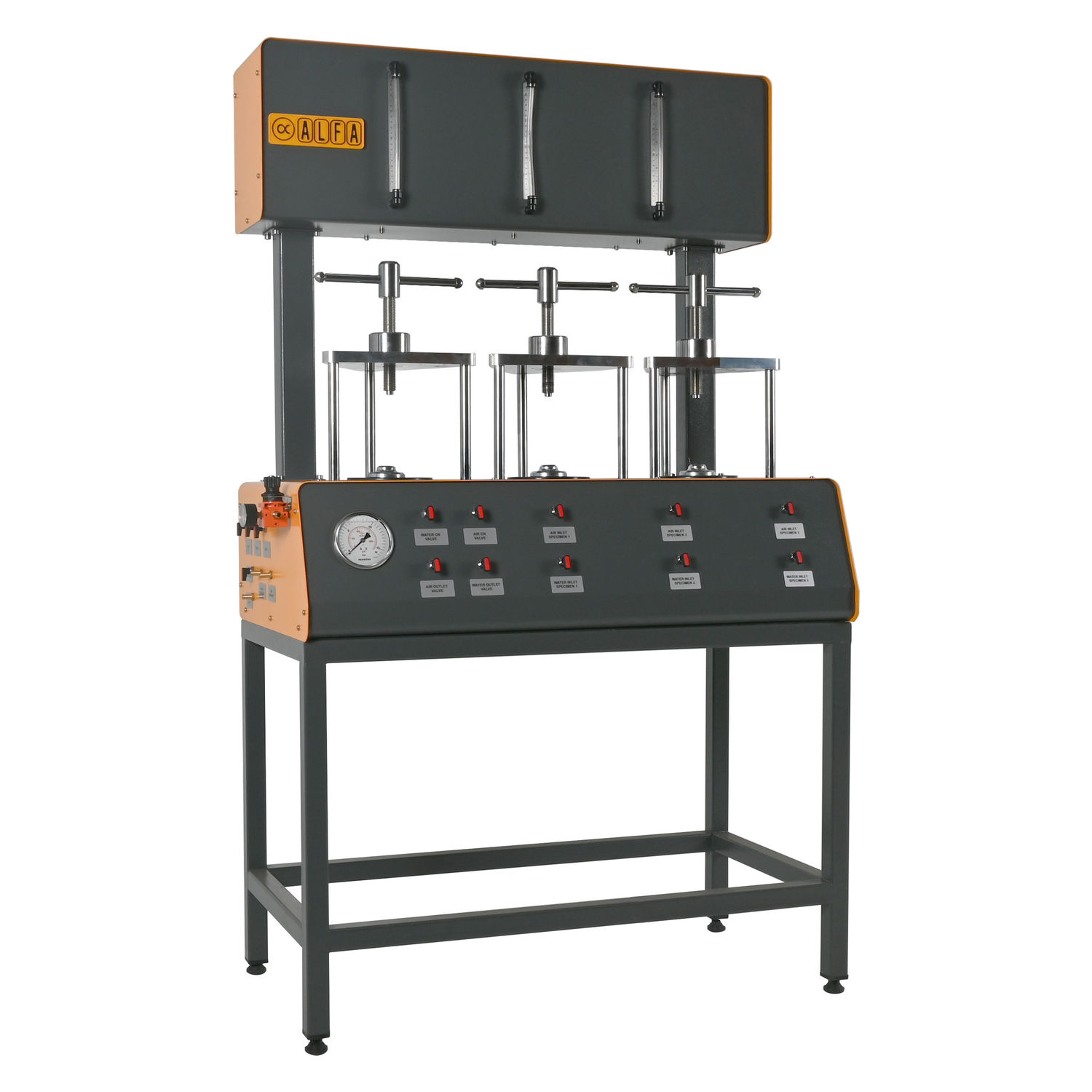

Product Code: B245
Category: CONCRETE
Sub-Category: PERMEABILITY
- Used for determining the depth of penetration of water under pressure in hardened concrete specimens.
- Once the concrete specimens are clamped, the water under known pressure is applied.
- The water penetrated to the specimen is measured either by taking the reading through the graduated burette or by breaking the specimen.
- Manometer on the front panel is fixed to check water pressure.
- Air compressor should be ordered separately.
STANDARDS
EN 12390-8
TECHNICAL SPECIFICATIONS
- Suitable for:
- Cubes (100 mm, 4”)
- Cubes (150 mm, 6”)
- Cylinders (Ø 150 mm, Ø 160 mm, Ø 6”)
- Equipped with graduated burettes to measure the water penetration
ORDERING INFORMATION
| Item | Code |
| CONCRETE WATER IMPERMEABILITY TESTER – 3 Place | B245X03XH |
| CONCRETE WATER IMPERMEABILITY TESTER – 6 Place | B245X06XH |
