Product Code: B061
Category: CONCRETE
Sub-Category: CORING
- Used to take core samples from irregular rocks or to extrude the core from specimens for test purposes.
- Standard 1 ¼” thread
- Core Bits should be ordered separately
TECHNICAL SPECIFICATIONS
- Power input : 2500 W
- Rated Speed : 450 rpm
- Max. drill : Ø 162 mm
- Water inlet
- B-061/R model can rotate from 0° to 89°
- Standard 1 ¼” thread for bits
- 220 – 240 V / 50 – 60 Hz
ORDERING INFORMATION
| Item Name | Item Code |

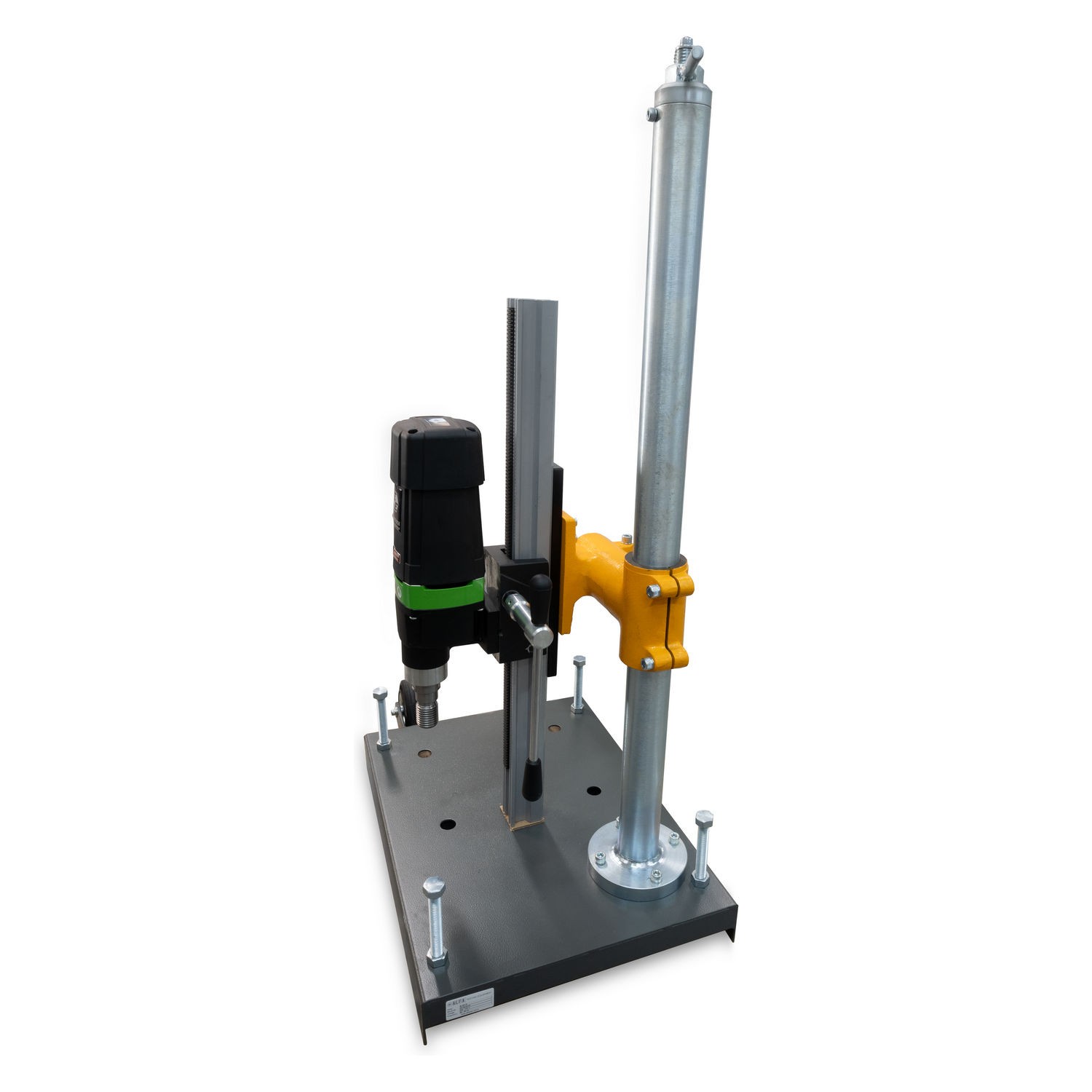

| CORING MACHINE | B061M01XU |

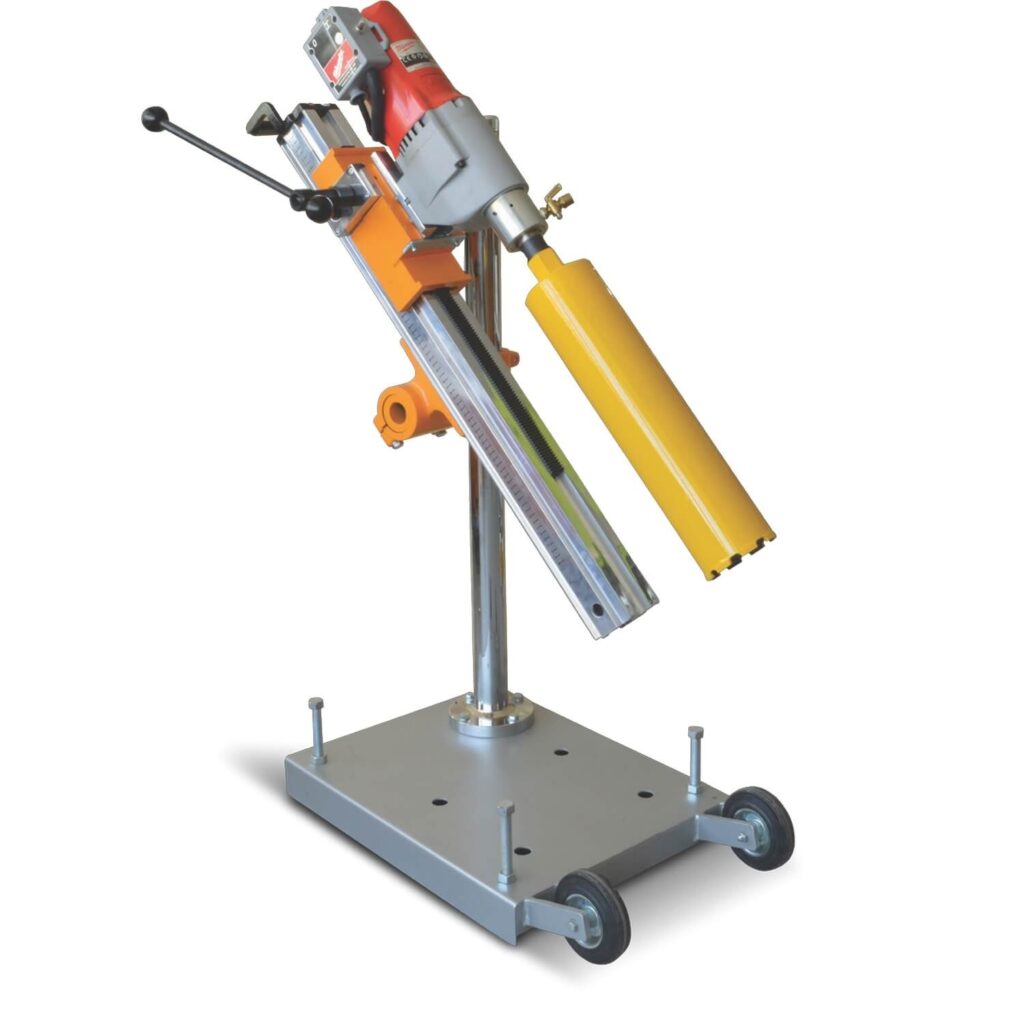

| ROTATABLE CORING MACHINE | B061M02XU |

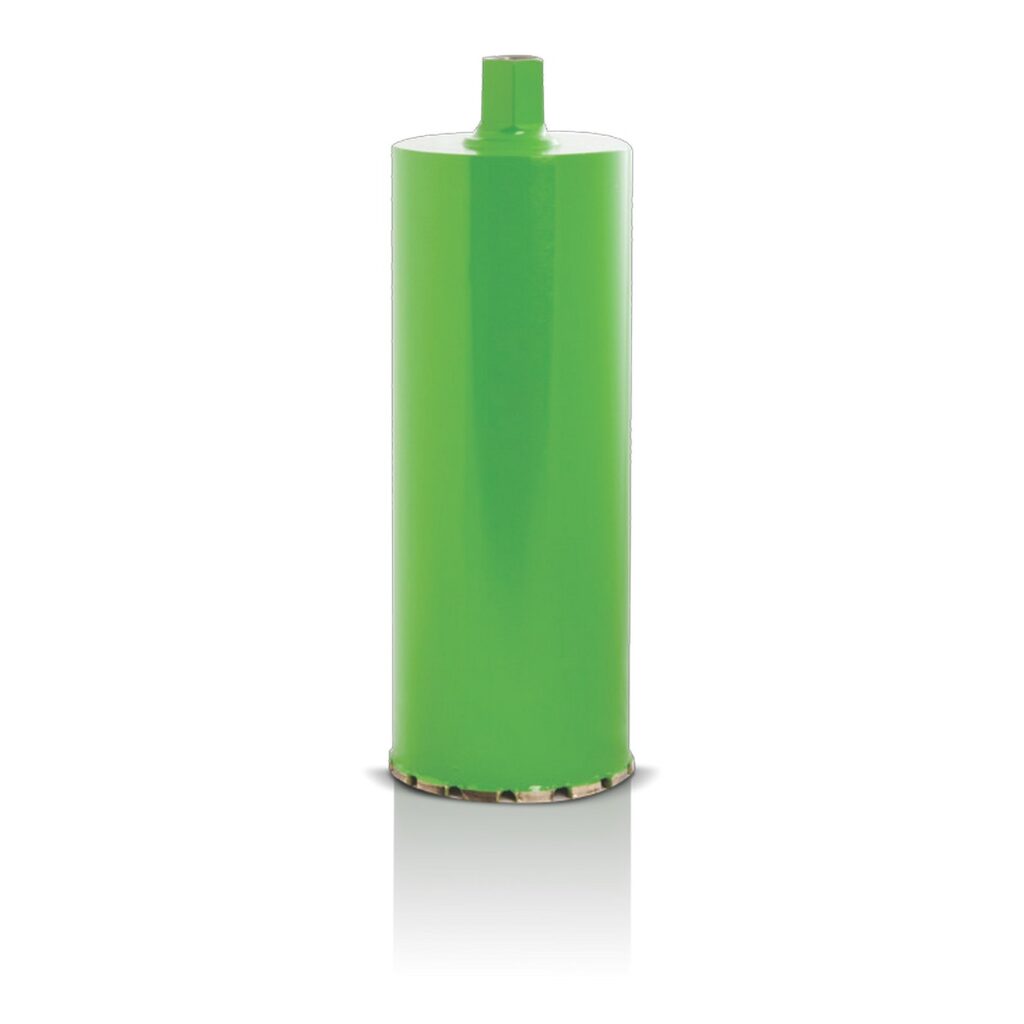

| CORE BIT for CONCRETE – ø 50 mm x 400 mm | B061P001H |
| CORE BIT for CONCRETE – ø 75 mm x 400 mm | B061P002H |
| CORE BIT for CONCRETE – ø 100 mm x 400 mm | B061P003H |
| CORE BIT for CONCRETE – ø 150 mm x 400 mm | B061P004H |

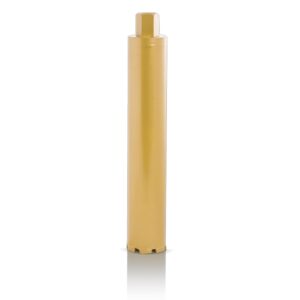

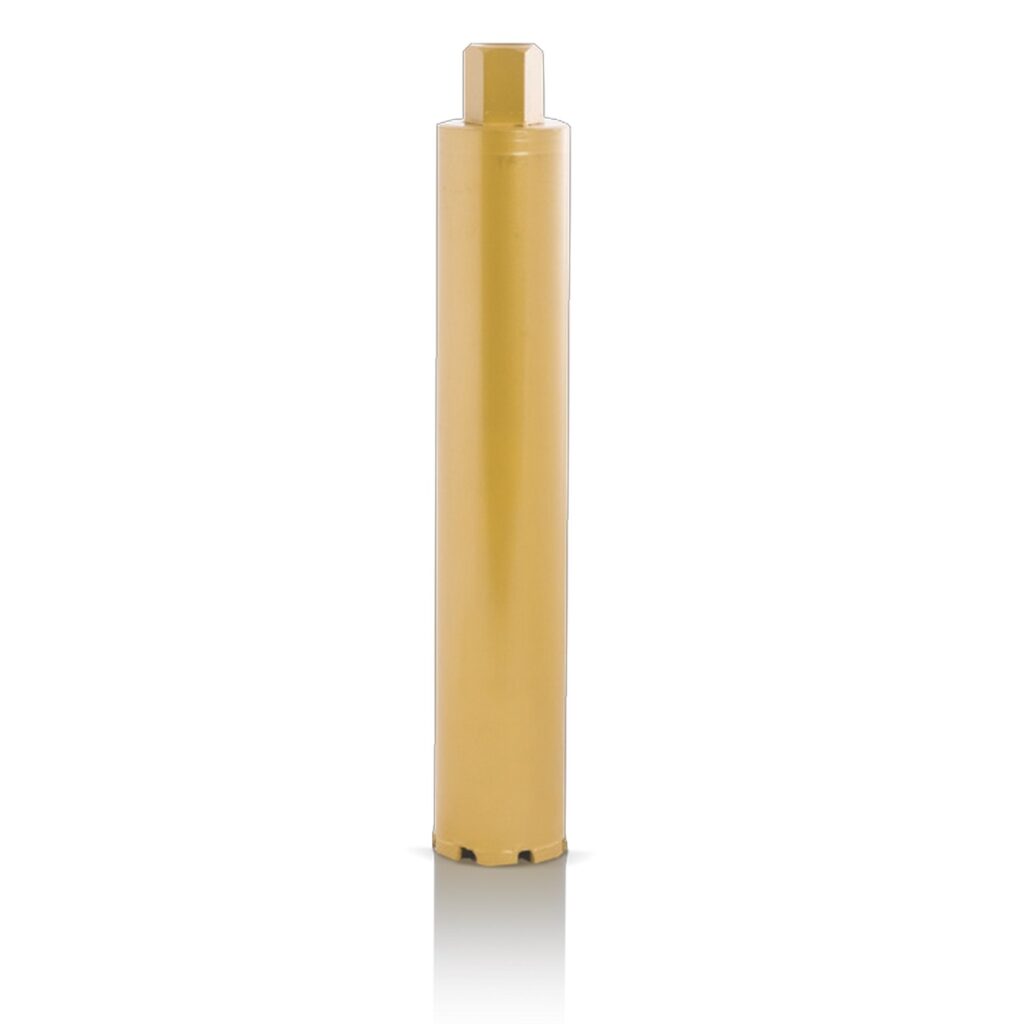

| CORE BIT – Ø 22 mm x 500 mm | B061P005H |
| CORE BIT – Ø 24 mm x 500 mm | B061P006H |
| CORE BIT – Ø 26 mm x 500 mm | B061P007H |
| CORE BIT – Ø 28 mm x 500 mm | B061P008H |
| CORE BIT – Ø 30 mm x 500 mm | B061P009H |
| CORE BIT – Ø 32 mm x 500 mm | B061P010H |
| CORE BIT – Ø 35 mm x 500 mm | B061P011H |
| CORE BIT – Ø 38 mm x 500 mm | B061P012H |
| CORE BIT – Ø 45 mm x 500 mm | B061P013H |
| CORE BIT – Ø 52 mm x 500 mm | B061P014H |
