Product Code: B105
Category: CONCRETE
Sub-Category: BOND-STRENGTH

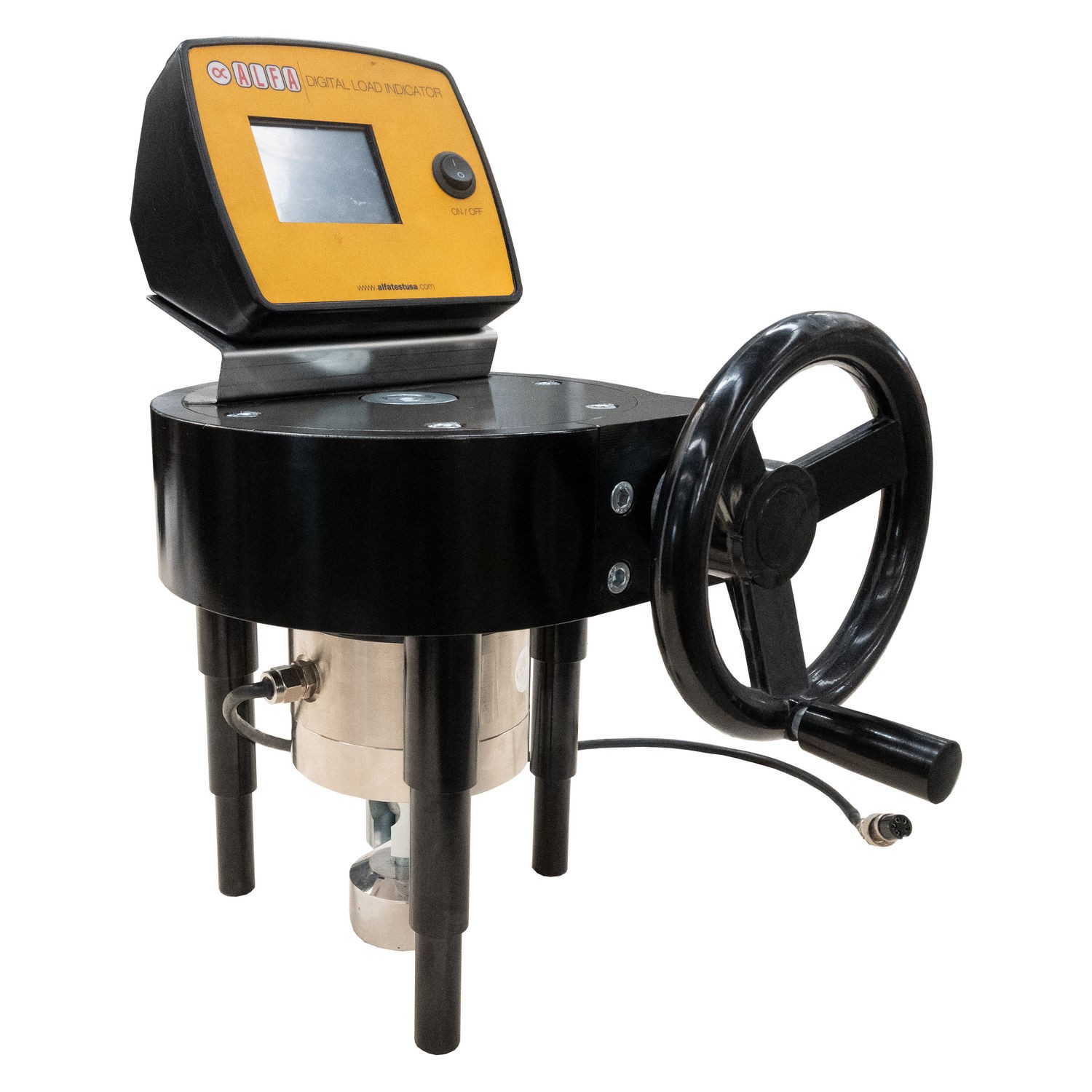

- Used to measure the adhesive force / bond tensile strength of two layers of concrete, facing plasters, mortars, building
- plasters, lime etc. to its base.
- Manually-operated, compact, light and suitable for use in any location
- Fitted with a load cell and high resolution large digital display unit.
- Suitable for measurements from low loads up to 16 kN, granting a wide working range
STANDARDS
EN 1015-12
TECHNICAL SPECIFICATIONS
- Load capacity: 16 kN
- Working range: 0,25 to 16 kN
- Seat ball assuring axial/central load application
- Battery operated
SUPPLIED WITH
- Tensile pin
- Aluminum test plate – Ø 50 mm x 30 mm (10 ea)
- Drill bit (Ø 50 mm)
ORDERING INFORMATION
| Item | Code |
| PULL-OFF TESTER | B105H16XD |
| ALUMINUM TEST PLATE – Ø 20 mm x 30 mm | B105P001H |
| STAINLESS STEEL TEST PLATE – Ø 50 mm x 20 mm | B105P002H |
| CYLINDRICAL CUTTING RING – Ø 50 mm | B105P003H |
| DRILL BIT – Ø 20 mm | B105P004H |
| DRILL BIT – Ø 50 mm | B105P005H |
| ALUMINUM TEST PLATE – 50 mm x 50 mm x 30 mm | B105P006H |
| ALUMINUM TEST PLATE – Ø 75 mm x 30 mm | B105P007H |
| ALUMINUM TEST PLATE – Ø 100 mm x 30 mm | B105P008H |
| ALUMINUM TEST PLATE – 50 mm x 50 mm x 20 mm | B105P009H |
| ALUMINUM TEST PLATE – Ø 50 mm x 20 mm | B105P010H |
