Product Code: B106
Category: CONCRETE
Sub-Category: BOND-STRENGTH
Used to determine the pullout strength of hardened concrete by measuring the force required to pull an anchor steel rebar from a concrete test specimen or structure. The insert or rebar is either cast into fresh concrete or installed in hardened concrete.

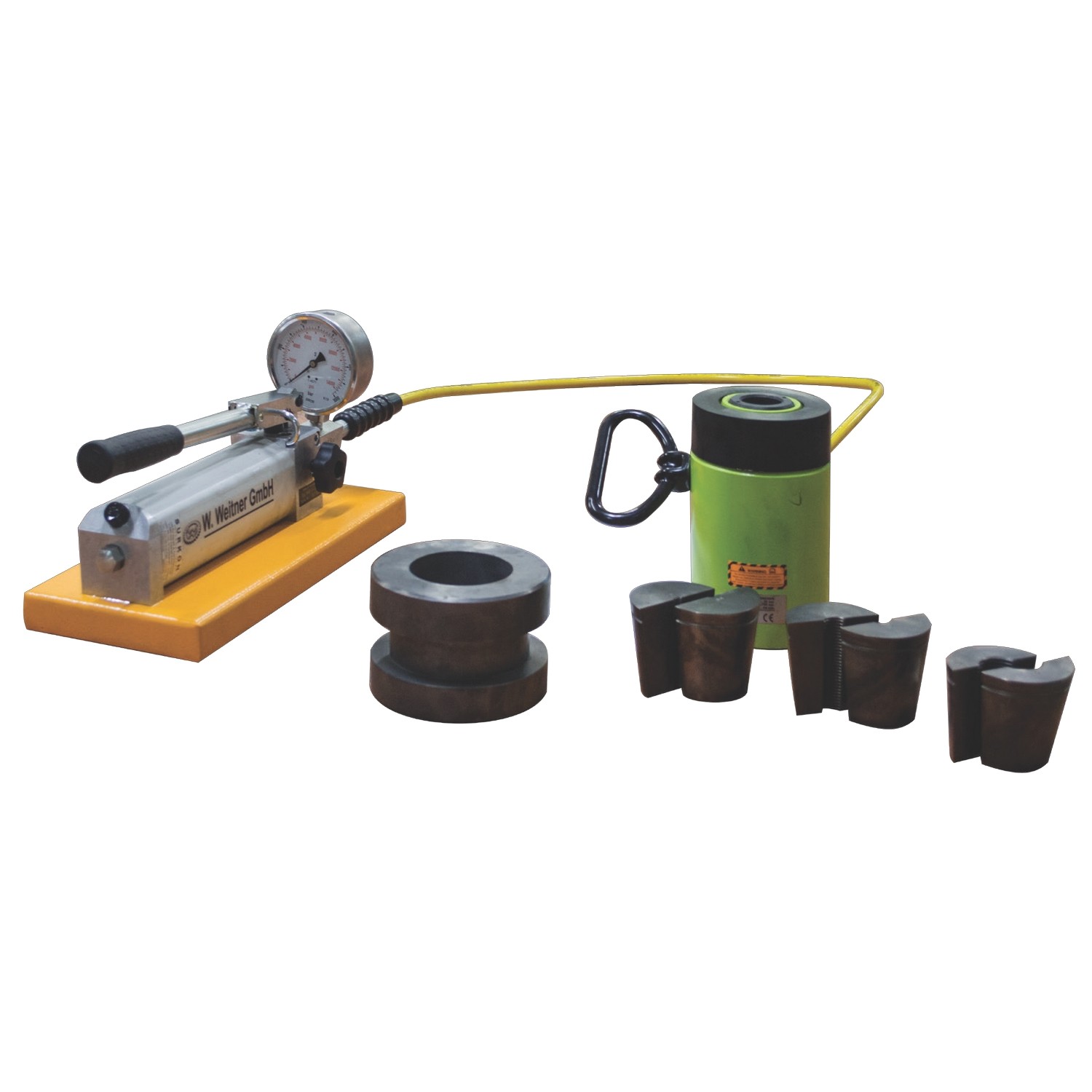

SUPPLIED WITH
- Hydraulic extraction unit (jack and piston assembly)
- Digital display
- Three sets of grippers, suitable to test:
- Ø 4 mm – Ø 8 mm
- Ø 10 mm – Ø 20 mm
- Ø 20 mm – Ø 30 mm
ORDERING INFORMATION
| Item | Code |
| PULL-OUT TESTER – 100 kN | B106H10XD |
| PULL-OUT TESTER – 300 kN | B106H30XD |
| PULL-OUT TESTER – 500 kN | B106H50XD |
| GRIPPERS for PULL-OUT TEST – Ø 4-8 mm | B106P001H |
| GRIPPERS for PULL-OUT TEST – Ø 10-20 mm | B106P002H |
| GRIPPERS for PULL-OUT TEST – Ø 20-30 mm | B106P003H |
