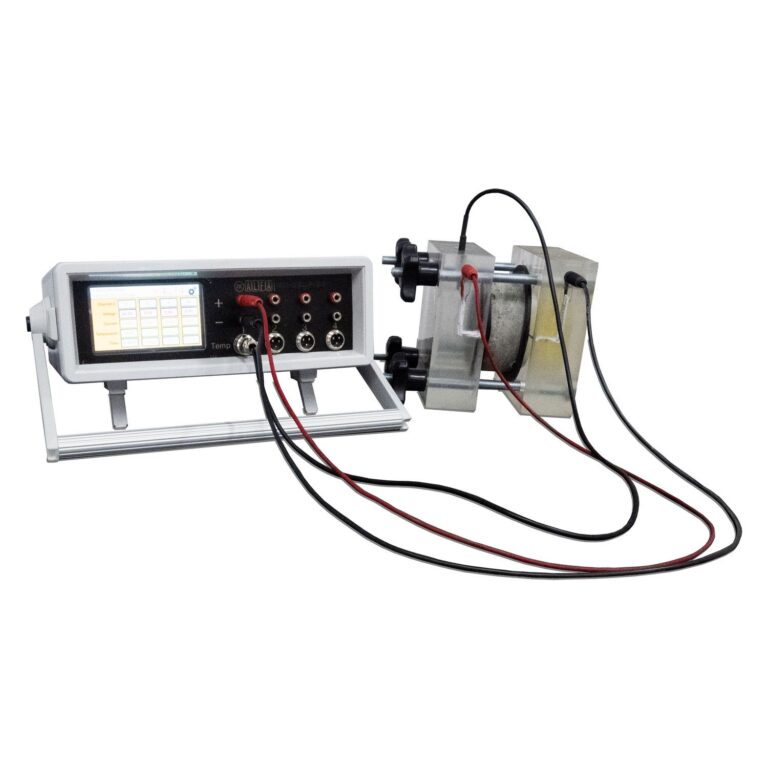

RAPID-CHLORIDE PENETRATION TESTER (RCP) (B500)
Category: Concrete
Product Code: B500
Category: CONCRETE
Sub-Category: PERMEABILITY
- The Rapid Chloride Permeability Test (RCPT) is an essential evaluation method in civil engineering, used to measure the permeability of concrete and other construction materials.
- This test offers important information regarding the durability and quality of concrete structures.
STANDARDS
ASTM C1202 • ASTM C1760
TECHNICAL SPECIFICATIONS
- Standalone 4-Channel Rapid Chloride Penetration Tester Device
- Full-featured user interface with a touch screen display
- Independent 4 channels allowing separate test execution and finalization for each channel
- Automatic test finalization and result calculation according to ASTM C1202-12 standard
- Automatic test termination if cell temperature exceeds 90°C
- Automatic test termination if current exceeds 400mA
- ±0.1mA up to 600mA current measurement range
- 0-125°C temperature sensors for each of the 4 channels
- Internal 60V 2.5Ah regulated power supply
- Cells and Temperature Sensors must be ordered separately
ORDERING INFORMATION
| Item Name | Item Code |
| CELL for RCP TEST – ASTM C1202 | B500P001H |
| TEMPERATURE SENSOR for RCP TEST | B500P002H |
| SPARE RUBBER GASKET for RCP TEST | B500P003H |
| CELL for CHLORIDE MIGRATION COEFFICIENT TEST (With Heat-Sync) – NT 492 | B500P004H |
| BANANA JACK (4mm / Male) | B500P005H |
| RAPID CHLORIDE PENETRATION TEST (RCP) 4-Channel | B500X04AU |
| RAPID CHLORIDE PENETRATION TEST (4-Channel with Independent Voltage Adjustment) | B500X04XU |
| RAPID CHLORIDE PENETRATION TEST (RCP) 8-Channel | B500X08AU |
| RAPID CHLORIDE PENETRATION TEST (8-Channel with Independent Voltage Adjustment) | B500X08XU |
| RAPID CHLORIDE PENETRATION TEST (9-Channel with Independent Voltage Adjustment) | B500X09XU |
| RAPID CHLORIDE PENETRATION TEST (12-Channel with Independent Voltage Adjustment) | B500X12XU |
