Product Code: B020
Category: CONCRETE
Sub-Category: FRESH CONCRETE TESTS
- Used to determine the consistency of fresh hydraulic-cement concrete, both in the laboratory and in the field by the slump test, where Consistency is a measure of the wetness of the concrete mixture, which is commonly evaluated in terms of slump. The test gives an indication of the ease with which the concrete flows.
- The fresh concrete is compacted into a mold in the shape of a frustum of a cone. When the cone is withdrawn upwards, the distance the concrete has slumped provides a measure of the consistency of the concrete.
- Available in galvanized or stainless steel.
STANDARDS
ASTM C143 • EN 123350-2
TECHNICAL SPECIFICATIONS
- Slump Cone
- Made of metal not readily attacked by cement paste
- In the form of a hollow frustum of a cone:
- Diameter of base : 200 mm
- Diameter of top : 100 mm
- Height : 300 mm
- Tamping Rod
- A round, smooth, straight steel rod
- Both ends rounded to a hemispherical tip
- Ø16 mm x 600 mm
- Base Plate
- Made of metal
- Rigid, flat plate on which to place the mould
- 600 mm x 600 mm
- Slump Cone Funnel
- Made of metal not readily attacked by cement paste and having a collar to enable the funnel to be located on top of the mould

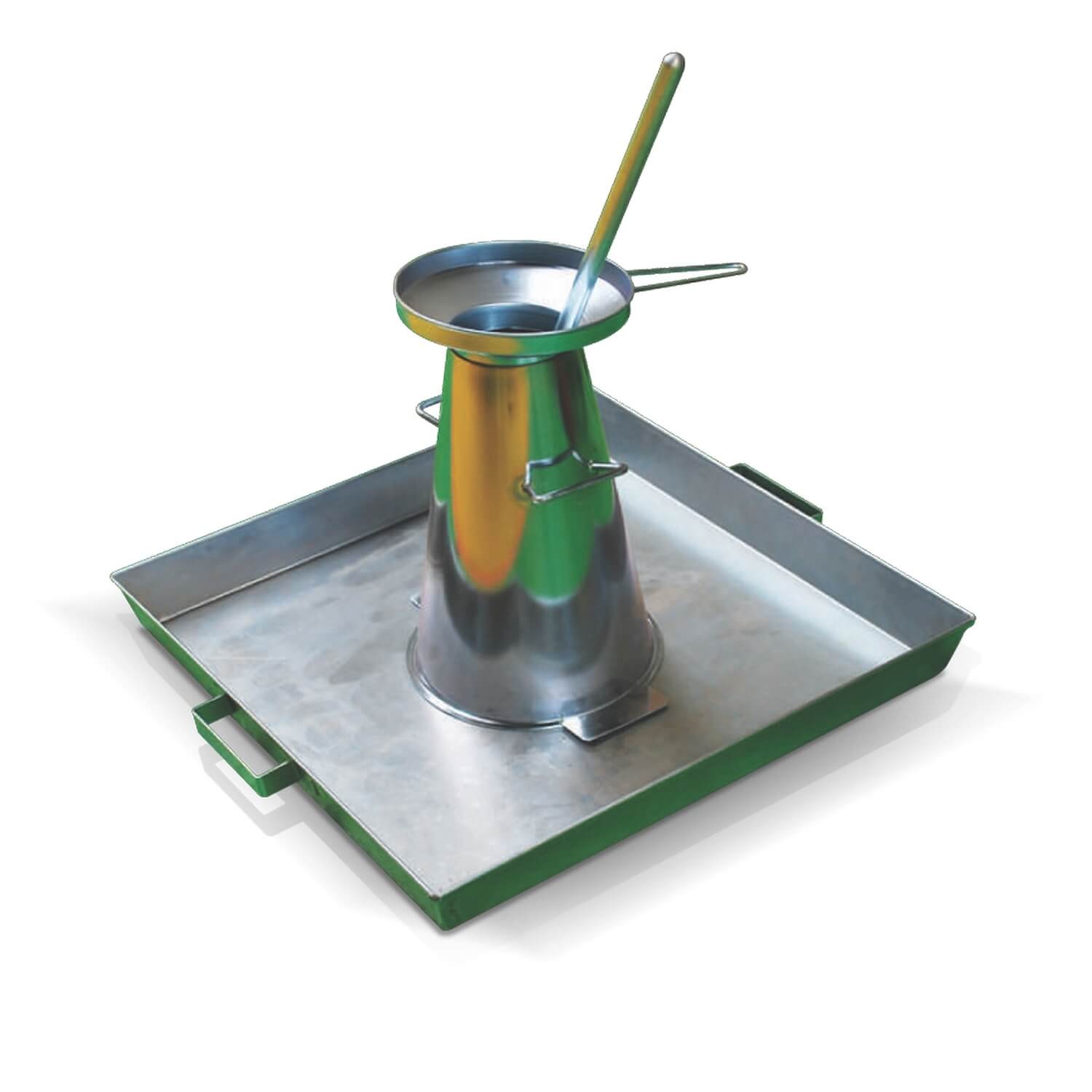

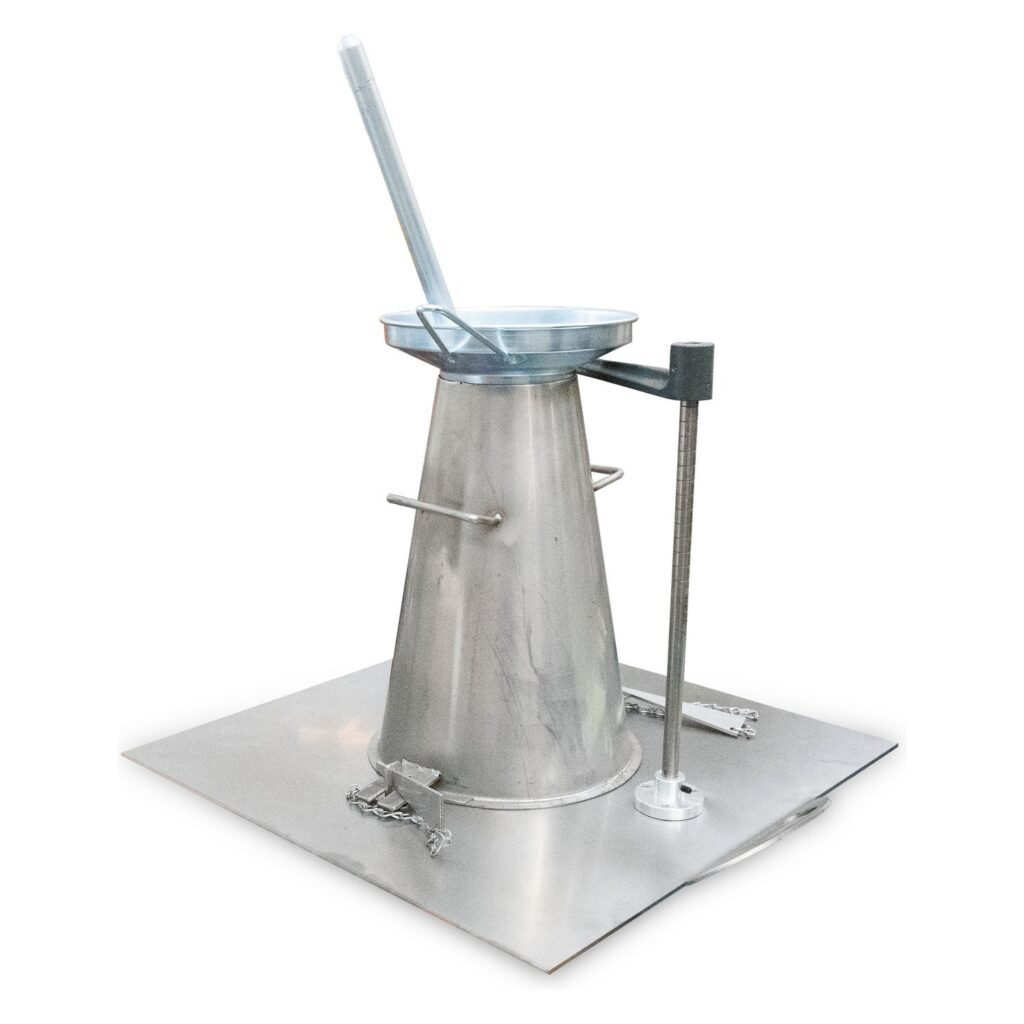

SET
- Slump Cone
- Tamping Rod
- Base Plate
- Slump Cone Funnel
ORDERING INFORMATION
| Item | Code |
| SLUMP BASE PLATE – Stainless Steel | B 020 P005 H |
| SLUMP BASE PLATE (G) | B 020 P001 H |
| SLUMP CONE – Stainless Steel | B 020 P006 H |
| SLUMP CONE (G) | B 020 P002 H |
| SLUMP FUNNEL | B 020 P003 H |
| SLUMP SET (G) | B 020 X001 H |
| SLUMP SET (SS) | B 020 X002 H |
| TAMPING ROD | B 020 P004 H |
