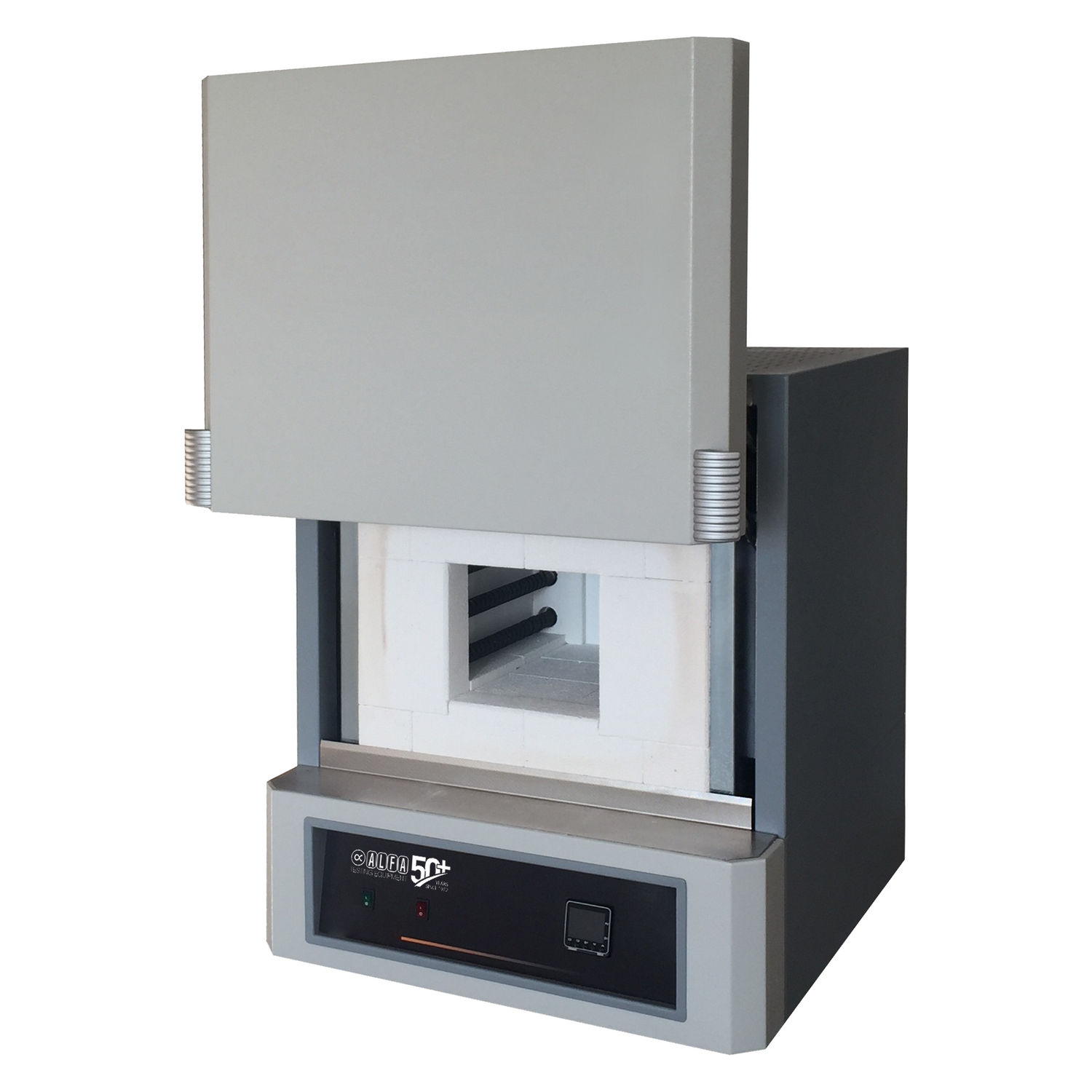

MUFFLE FURNACE (G050)

Download DatasheetPrint

Product Code: G050

Category: GENERAL

Sub-Category: LOSS ON IGNITION

• The ALFA Muffle Furnace is engineered for high-temperature applications such as determining non-combustible and non-volatile content, loss on ignition, and ashing of organic and inorganic samples. Its robust design ensures precise and consistent performance in laboratory environments.
• Featuring a front-loading design, the furnace allows easy access to the chamber for convenient loading and retrieval of specimens. The high-grade ceramic fiber insulation minimizes thermal loss, enhancing energy efficiency and ensuring rapid heating cycles.
• Equipped with a Proportional Integral Derivative (PID) controller, the furnace offers accurate temperature regulation, allowing users to monitor current temperatures and set target temperatures with ease. A safety door switch is integrated to shut off control circuits when the door is opened, ensuring user safety during operation.
• Maintenance is streamlined with accessible heating elements and internal components, facilitating effortless servicing. ALFA also offers customization options to meet specific laboratory requirements.

STANDARDS

ASTM D4218 • ASTM D5630 • AASHTO T 267 • EN 12697-1

TECHNICAL SPECIFICATIONS

• Temperature Range: Up to 1500°C
• Control System: PID
• Insulation: High-grade ceramic fiber
• Loading Mechanism: Front-loading
• Power Supply Options: 220–240 V / 50–60 Hz or 380 V / 50–60 Hz

EQUIPPED WITH

• Safety door switch
• PID controller

ORDERING INFORMATION
