Product Code: G080
Category: GENERAL
Sub-Category: SAMPLE PREPARATION

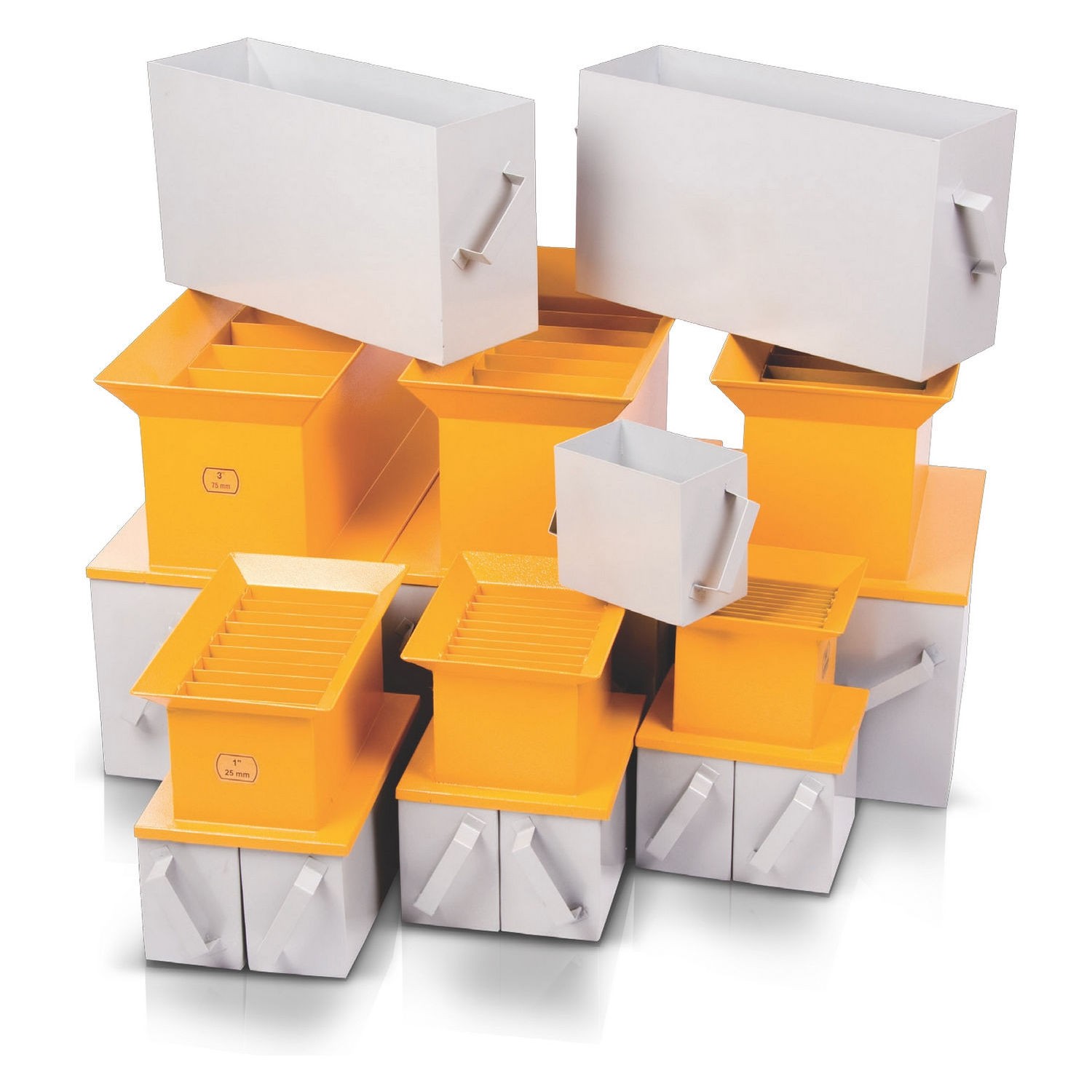

- The Sample Splitter, also known as a Riffle Box, is an essential laboratory instrument designed to divide bulk aggregates, soils, sands, and gravel into two representative and equal portions for testing purposes. This ensures that each subsample accurately reflects the characteristics of the original material, facilitating reliable and consistent analytical results.
- Constructed with a series of chutes, the splitter directs material alternately into separate collection pans, effectively halving the sample. The design includes an even number of equal-width chutes, with a minimum of eight for coarse aggregates and twelve for fine aggregates, as specified by international standards. The chute width is approximately 1.5 times the size of the largest particles in the sample, preventing clogging and ensuring smooth material flow without loss or contamination.
- Manufactured from durable, powder-coated enameled steel, the Sample Splitter is built for longevity and resistance to laboratory conditions. It is supplied with three collecting pans, facilitating immediate use upon setup.
- The Sample Splitter complies with several international standards, ensuring its suitability for use in various testing protocols.
STANDARDS
ASTM C136 • EN 933-3 • AASHTO T27 • AASHTO T87 • BS 812:1 • BS 1377:2 • BS 1924:1 • NF P18-553 • UNI 8520 • UNE 83120 • AS 1141.2
TECHNICAL SPECIFICATIONS
| Code | Chute / Slot Width (mm) | Number of Chutes / Slots |
| G080X07XH | 7.0 | 12 |
| G080X09XH | 9.0 | 12 |
| G080X12XH | 12.5 | 12 |
| G080X15XH | 15.0 | 12 |
| G080X19XH | 19.0 | 10 |
| G080X25XH | 25.0 | 10 |
| G080X30XH | 30.0 | 10 |
| G080X37XH | 37.5 | 8 |
| G080X45XH | 45.0 | 8 |
| G080X50XH | 50.0 | 8 |
| G080X62XH | 62.5 | 8 |
| G080X75XH | 75.0 | 8 |
SUPPLIED WITH
- Three collecting pans
ORDERING INFORMATION
| Item Name | Item Code |
| SAMPLE SPLITTER (Stainless Steel) – 5 mm | G080J05XH |
| COLLECTING PAN for G080X07X | G080P001H |
| COLLECTING PAN for G080X09X | G080P002H |
| COLLECTING PAN for G080X12X | G080P003H |
| COLLECTING PAN for G080X15X | G080P004H |
| COLLECTING PAN for G080X19X | G080P005H |
| COLLECTING PAN for G080X25X | G080P006H |
| COLLECTING PAN for G080X30X | G080P007H |
| COLLECTING PAN for G080X37X | G080P008H |
| COLLECTING PAN for G080X45X | G080P009H |
| COLLECTING PAN for G080X50X | G080P010H |
| COLLECTING PAN for G080X62X | G080P011H |
| COLLECTING PAN for G080X75X | G080P012H |
| SAMPLE SPLITTER – 7 mm | G080X07XH |
| SAMPLE SPLITTER – 9.5 mm | G080X09XH |
| SAMPLE SPLITTER – 12.5 mm | G080X12XH |
| SAMPLE SPLITTER – 15 mm | G080X15XH |
| SAMPLE SPLITTER – 19 mm | G080X19XH |
| SAMPLE SPLITTER – 25 mm | G080X25XH |
| SAMPLE SPLITTER – 31.5 mm | G080X30XH |
| SAMPLE SPLITTER – 37.5 mm | G080X37XH |
| SAMPLE SPLITTER – 45 mm | G080X45XH |
| SAMPLE SPLITTER – 50 mm (AS) | G080X50SH |
| SAMPLE SPLITTER – 50 mm | G080X50XH |
| SAMPLE SPLITTER – 62.5 mm | G080X62XH |
| SAMPLE SPLITTER – 75 mm | G080X75XH |
