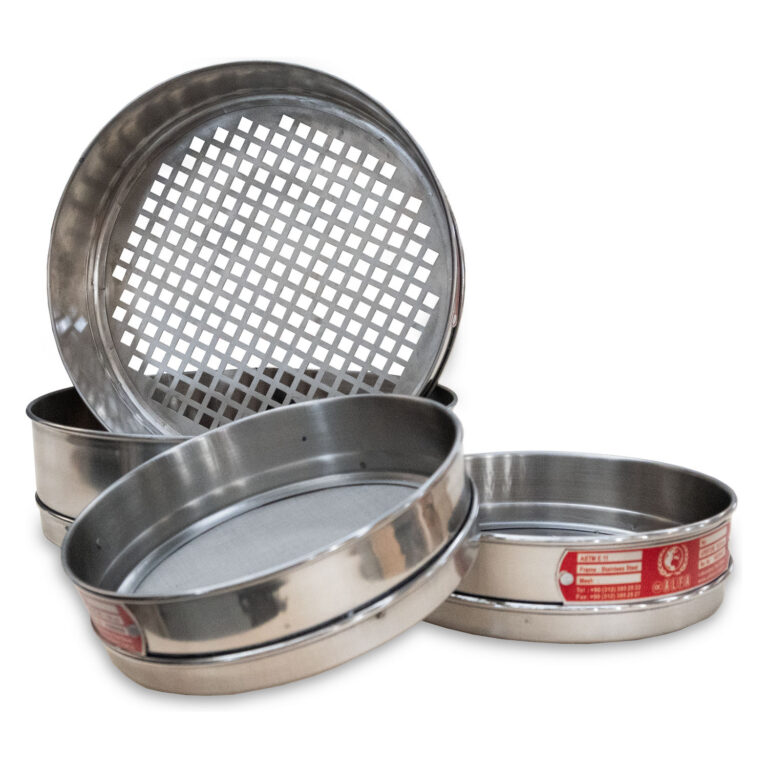

SIEVE (S)
Category: General
Product Code: S
Category: GENERAL
Sub-Category: PARTICLE SIZE ANALYSIS
- Test sieves are essential instruments for determining the particle size distribution of fine and coarse materials, such as aggregates and soils, for particles larger than 63 µm (For particles smaller than 63 µm, Hydrometer Test (T251) is recommended).
- They are utilized to assess compliance with applicable specifications and to provide necessary data for controlling the production of various aggregate products and mixtures containing aggregates.
- The sieves are constructed with woven wire or perforated plates, with both the mesh and frame made of stainless steel to ensure durability and resistance to corrosion.
- Each sieve is clearly labeled with its aperture size for easy identification and is designed to nest perfectly with others of the same diameter, facilitating efficient stacking and storage.
- Available in two standard diameters (200 mm and 300 mm) to accommodate various testing requirements.
STANDARDS
ASTM E11 • ASTM E232 • ISO 3310-1 • ISO 3310-2
TECHNICAL SPECIFICATIONS
- Frame Material: Stainless steel
- Mesh Material: Stainless steel woven wire or perforated plate
- Diameter Options: 200 mm and 300 mm
- Aperture Sizes: Range from 0.063 mm to 125 mm, clearly labeled on each sieve
- Nesting Capability: Designed for secure stacking with sieves of the same diameter
ACCESSORIES
- PC Software (ALFA Utilities – Particle Size Analysis):
- Draw Particle Size Distribution Curve
- Coefficient of Uniformity (Cu) and Coefficient of Curvature (Cc) which can be directly used in Soil Classification
- Plot Upper and Lower limits for the curve
- Unlimited Save / Recall Old Curve Data
- Export Data to PDF, Image, CSV, Excel, Text File
- ALFA Cloud ® Compatible
- ALFA Cloud ® Subscription
ORDERING INFORMATION
| Item | Code |
| SIEVE SET – Concrete | S2XSET02Y |
| SIEVE SET – Soil | S2XSET03Y |
| SIEVE SET – Asphalt | S2XSET01Y |
| PAN & COVER – Ø 200 mm | S2XXP003Y |
| COVER (Lid) – Ø 200 mm | S2XXP001Y |
| PAN (Receiver)- Ø 200 mm | S2XXP002Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.063 mm (No.230) | S2W00063Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.075 mm (No.200) | S2W00075Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.080 mm | S2W00080Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.090 mm (No.170) | S2W00090Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.100 mm | S2W00100Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.106 mm (No.140) | S2W00106Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.125 mm (No.120) | S2W00125Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.150 mm (No.100) | S2W00150Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.160 mm | S2W00160Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.180 mm (No.80) | S2W00180Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.200 mm | S2W00200Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.212 mm (No.70) | S2W00212Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.250 mm (No.60) | S2W00250Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.300 mm (No.50) | S2W00300Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.315 mm | S2W00315Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.355 mm (No.45) | S2W00355Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.400 mm | S2W00400Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.425 mm (No.40) | S2W00425Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.500 mm (No.35) | S2W00500Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.600 mm (No.30) | S2W00600Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.630 mm | S2W00630Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.710 mm (No.25) | S2W00710Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.800 mm | S2W00800Y |
| SIEVE (Woven Wire), Ø 200 mm , 0.850 mm (No.20) | S2W00850Y |
| SIEVE (Woven Wire), Ø 200 mm , 1.00 mm (No.18) | S2W01000Y |
| SIEVE (Woven Wire), Ø 200 mm , 1.18 mm (No.16) | S2W01180Y |
| SIEVE (Woven Wire), Ø 200 mm , 1.25 mm | S2W01250Y |
| SIEVE (Woven Wire), Ø 200 mm , 1.40 mm (No.14) | S2W01400Y |
| SIEVE (Woven Wire), Ø 200 mm , 1.60 mm | S2W01600Y |
| SIEVE (Woven Wire), Ø 200 mm , 1.70 mm (No.12) | S2W01700Y |
| SIEVE (Woven Wire), Ø 200 mm , 2.00 mm (No.10) | S2W02000Y |
| SIEVE (Woven Wire), Ø 200 mm , 2.36 mm (No.8) | S2W02360Y |
| SIEVE (Woven Wire), Ø 200 mm , 2.50 mm | S2W02500Y |
| SIEVE (Woven Wire), Ø 200 mm , 2.80 mm | S2W02800Y |
| SIEVE (Woven Wire), Ø 200 mm , 3.15 mm | S2W03150Y |
| SIEVE (Woven Wire), Ø 200 mm , 3.35 mm (No.6) | S2W03350Y |
| SIEVE (Perforated), Ø 200 mm , 4.00 mm (No.5) | S2P04000Y |
| SIEVE (Perforated), Ø 200 mm , 4.75 mm (No.4) | S2P04750Y |
| SIEVE (Perforated), Ø 200 mm , 5.00 mm | S2P05000Y |
| SIEVE (Perforated), Ø 200 mm , 5.60 mm (No.3 1/2) | S2P05600Y |
| SIEVE (Perforated), Ø 200 mm , 6.30 mm (1/4″) | S2P06300Y |
| SIEVE (Perforated), Ø 200 mm , 6.70 mm (.265″) | S2P06700Y |
| SIEVE (Perforated), Ø 200 mm , 7.10 mm | S2P07100Y |
| SIEVE (Perforated), Ø 200 mm , 8.00 mm (5/16″) | S2P08000Y |
| SIEVE (Perforated), Ø 200 mm , 9.00 mm | S2P09000Y |
| SIEVE (Perforated), Ø 200 mm , 9.50 mm (3/8″) | S2P09500Y |
| SIEVE (Perforated), Ø 200 mm , 10.00 mm | S2P10000Y |
| SIEVE (Perforated), Ø 200 mm , 11.20 mm (7/16″) | S2P11200Y |
| SIEVE (Perforated), Ø 200 mm , 12.50 mm (1/2″) | S2P12500Y |
| SIEVE (Perforated), Ø 200 mm , 13.20 mm (.530″) | S2P13200Y |
| SIEVE (Perforated), Ø 200 mm , 14.00 mm | S2P14000Y |
| SIEVE (Perforated), Ø 200 mm , 16.00 mm (5/8″) | S2P16000Y |
| SIEVE (Perforated), Ø 200 mm , 18.00 mm | S2P18000Y |
| SIEVE (Perforated), Ø 200 mm , 19.00 mm (3/4″) | S2P19000Y |
| SIEVE (Perforated), Ø 200 mm , 20.00 mm | S2P20000Y |
| SIEVE (Perforated), Ø 200 mm , 22.40 mm (7/8″) | S2P22400Y |
| SIEVE (Perforated), Ø 200 mm , 25.00 mm (1″) | S2P25000Y |
| SIEVE (Perforated), Ø 200 mm , 26.50 mm (1.06″) | S2P26500Y |
| SIEVE (Perforated), Ø 200 mm , 28.00 mm | S2P28000Y |
| SIEVE (Perforated), Ø 200 mm , 31.50 mm (1 1/4″) | S2P31500Y |
| SIEVE (Perforated), Ø 200 mm , 37.50 mm (1 1/2″) | S2P37500Y |
| SIEVE (Perforated), Ø 200 mm , 40.00 mm | S2P40000Y |
| SIEVE (Perforated), Ø 200 mm , 45.00 mm (1 3/4″) | S2P45000Y |
| SIEVE (Perforated), Ø 200 mm , 50.00 mm (2″) | S2P50000Y |
| SIEVE (Perforated), Ø 200 mm , 53.00 mm (2.12″) | S2P53000Y |
| SIEVE (Perforated), Ø 200 mm , 56.00 mm | S2P56000Y |
| SIEVE (Perforated), Ø 200 mm , 63.00 mm (2 1/2″) | S2P63000Y |
| SIEVE (Perforated), Ø 200 mm , 75.00 mm (3″) | S2P75000Y |
| SIEVE (Perforated), Ø 200 mm , 80.00 mm | S2P80000Y |
| SIEVE (Perforated), Ø 200 mm , 90.00 mm (3 1/2″) | S2P90000Y |
| SIEVE (Perforated), Ø 200 mm , 100.00 mm | S2P0100KY |
| SIEVE (Perforated), Ø 200 mm , 125.00 mm | S2P0125KY |
| WET SIEVING APPARATUS – Ø 200 mm | S2TXP001Y |
| WASHING SIEVE , Ø 200 mm , 0.063 mm | S2T00063Y |
| WASHING SIEVE , Ø 200 mm , 0.075 mm | S2T00075Y |
| SIEVE SET – Concrete | S3XSET02Y |
| SIEVE SET – Soil | S3XSET03Y |
| SIEVE SET – Asphalt | S3XSET01Y |
| SUPER PAVE SIEVE SET (300 mm) | S3XSET04Y |
| PAN & COVER – Ø 300 mm | S3XXP003Y |
| COVER (Lid) – Ø 300 mm | S3XXP001Y |
| PAN (Receiver)- Ø 300 mm | S3XXP002Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.063 mm (No.230) | S3W00063Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.075 mm (No.200) | S3W00075Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.080 mm | S3W00080Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.090 mm (No.170) | S3W00090Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.100 mm | S3W00100Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.106 mm (No.140) | S3W00106Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.125 mm (No.120) | S3W00125Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.150 mm (No.100) | S3W00150Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.160 mm | S3W00160Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.180 mm (No.80) | S3W00180Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.200 mm | S3W00200Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.212 mm (No.70) | S3W00212Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.250 mm (No.60) | S3W00250Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.300 mm (No.50) | S3W00300Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.315 mm | S3W00315Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.355 mm (No.45) | S3W00355Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.400 mm | S3W00400Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.425 mm (No.40) | S3W00425Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.500 mm (No.35) | S3W00500Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.600 mm (No.30) | S3W00600Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.630 mm | S3W00630Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.710 mm (No.25) | S3W00710Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.800 mm | S3W00800Y |
| SIEVE (Woven Wire), Ø 300 mm , 0.850 mm (No.20) | S3W00850Y |
| SIEVE (Woven Wire), Ø 300 mm , 1.00 mm (No.18) | S3W01000Y |
| SIEVE (Woven Wire), Ø 300 mm , 1.18 mm (No.16) | S3W01180Y |
| SIEVE (Woven Wire), Ø 300 mm , 1.25 mm | S3W01250Y |
| SIEVE (Woven Wire), Ø 300 mm , 1.40 mm (No.14) | S3W01400Y |
| SIEVE (Woven Wire), Ø 300 mm , 1.60 mm | S3W01600Y |
| SIEVE (Woven Wire), Ø 300 mm , 1.70 mm (No.12) | S3W01700Y |
| SIEVE (Woven Wire), Ø 300 mm , 2.00 mm (No.10) | S3W02000Y |
| SIEVE (Woven Wire), Ø 300 mm , 2.36 mm (No.8) | S3W02360Y |
| SIEVE (Woven Wire), Ø 300 mm , 2.50 mm | S3W02500Y |
| SIEVE (Woven Wire), Ø 300 mm , 2.80 mm | S3W02800Y |
| SIEVE (Woven Wire), Ø 300 mm , 3.15 mm | S3W03150Y |
| SIEVE (Woven Wire), Ø 300 mm , 3.35 mm (No.6) | S3W03350Y |
| SIEVE (Perforated), Ø 300 mm , 4.00 mm (No.5) | S3P04000Y |
| SIEVE (Perforated), Ø 300 mm , 4.75 mm (No.4) | S3P04750Y |
| SIEVE (Perforated), Ø 300 mm , 5.00 mm | S3P05000Y |
| SIEVE (Perforated), Ø 300 mm , 5.60 mm (No.3 1/2) | S3P05600Y |
| SIEVE (Perforated), Ø 300 mm , 6.30 mm (1/4″) | S3P06300Y |
| SIEVE (Perforated), Ø 300 mm , 6.70 mm (.265″) | S3P06700Y |
| SIEVE (Perforated), Ø 300 mm , 7.10 mm | S3P07100Y |
| SIEVE (Perforated), Ø 300 mm , 8.00 mm (5/16″) | S3P08000Y |
| SIEVE (Perforated), Ø 300 mm , 9.00 mm | S3P09000Y |
| SIEVE (Perforated), Ø 300 mm , 9.50 mm (3/8″) | S3P09500Y |
| SIEVE (Perforated), Ø 300 mm , 10.00 mm | S3P10000Y |
| SIEVE (Perforated), Ø 300 mm , 11.20 mm (7/16″) | S3P11200Y |
| SIEVE (Perforated), Ø 300 mm , 12.50 mm (1/2″) | S3P12500Y |
| SIEVE (Perforated), Ø 300 mm , 13.20 mm (.530″) | S3P13200Y |
| SIEVE (Perforated), Ø 300 mm , 14.00 mm | S3P14000Y |
| SIEVE (Perforated), Ø 300 mm , 16.00 mm (5/8″) | S3P16000Y |
| SIEVE (Perforated), Ø 300 mm , 18.00 mm | S3P18000Y |
| SIEVE (Perforated), Ø 300 mm , 19.00 mm (3/4″) | S3P19000Y |
| SIEVE (Perforated), Ø 300 mm , 20.00 mm | S3P20000Y |
| SIEVE (Perforated), Ø 300 mm , 22.40 mm (7/8″) | S3P22400Y |
| SIEVE (Perforated), Ø 300 mm , 25.00 mm (1″) | S3P25000Y |
| SIEVE (Perforated), Ø 300 mm , 26.50 mm (1.06″) | S3P26500Y |
| SIEVE (Perforated), Ø 300 mm , 28.00 mm | S3P28000Y |
| SIEVE (Perforated), Ø 300 mm , 31.50 mm (1 1/4″) | S3P31500Y |
| SIEVE (Perforated), Ø 300 mm , 37.50 mm (1 1/2″) | S3P37500Y |
| SIEVE (Perforated), Ø 300 mm , 40.00 mm | S3P40000Y |
| SIEVE (Perforated), Ø 300 mm , 45.00 mm (1 3/4″) | S3P45000Y |
| SIEVE (Perforated), Ø 300 mm , 50.00 mm (2″) | S3P50000Y |
| SIEVE (Perforated), Ø 300 mm , 53.00 mm (2.12″) | S3P53000Y |
| SIEVE (Perforated), Ø 300 mm , 56.00 mm | S3P56000Y |
| SIEVE (Perforated), Ø 300 mm , 63.00 mm (2 1/2″) | S3P63000Y |
| SIEVE (Perforated), Ø 300 mm , 75.00 mm (3″) | S3P75000Y |
| SIEVE (Perforated), Ø 300 mm , 80.00 mm | S3P80000Y |
| SIEVE (Perforated), Ø 300 mm , 90.00 mm (3 1/2″) | S3P90000Y |
| SIEVE (Perforated), Ø 300 mm , 100.00 mm | S3P0100KY |
| SIEVE (Perforated), Ø 300 mm , 125.00 mm | S3P0125KY |
| SIEVE (Perforated), Ø 300 mm , 150.00 mm | S3P0150KY |
| WET SIEVING APPARATUS – Ø 300 mm | S3TXP001Y |
