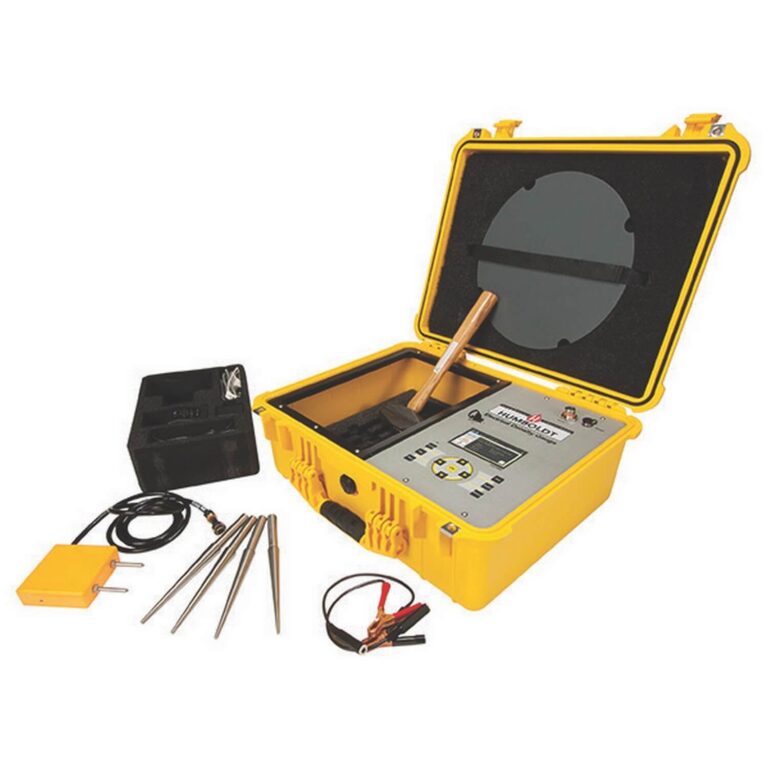

ELECTRICAL DENSITY GAUGE (EDG) (G851)

Category: Monitoring

Product Code: G851

Category: MONITORING

Sub-Category: DENSITY DETERMINATION

  • The Electrical Density Gauge (EDG) is a non-nuclear, portable instrument used for rapid, in-situ determination of soil compaction quality, measuring wet and dry density, gravimetric moisture content, and percent compaction.
  • Utilizing high-frequency electromagnetic waves, the EDG assesses the dielectric properties of compacted soils, providing accurate measurements without the regulatory concerns associated with nuclear devices.
  • The device features a user-friendly interface with a step-by-step menu, guiding operators through the testing procedure and alerting when values deviate from established calibration curves.
  • Equipped with GPS functionality, the EDG records geolocation data alongside test results, facilitating comprehensive documentation and quality control in construction projects.
  • The EDG's lightweight and battery-powered design ensures ease of transport and operation in various field conditions, making it ideal for monitoring day-to-day compaction activities.
  • Test results from the EDG correlate well with traditional methods such as the sand cone test and nuclear density gauges, offering a reliable alternative for field compaction assessment.
  • Data management is streamlined with the ability to store, download, and delete project data via USB, enhancing efficiency in reporting and analysis.

STANDARDS

ASTM D7698 • AASHTO T343

TECHNICAL SPECIFICATIONS

  • Measurement Parameters: Wet density, dry density, gravimetric moisture content, percent compaction
  • Measurement Method: Electromagnetic wave-based dielectric assessment
  • Data Storage: Internal memory with USB download capability
  • GPS Functionality: Integrated for geolocation tagging of test results
  • Power Supply: Rechargeable Li-ion battery
  • Operating Temperature Range: 0°C to 50°C
  • Humidity Range: 5% to 90% RH

EQUIPPED WITH

  • Main Console with Touch Screen Display
  • Soil Sensor and Cables
  • Temperature Probe
  • GPS Module
  • Battery Charger

SUPPLIED WITH

  • Set of 4 Tapered Darts (6″)
  • Dart Template
  • Field Verifier
  • Carrying Case

ORDERING INFORMATION

Item Name Item Code
ELECTRICAL DENSITY GAUGE (EDG) G851X00AB
