Product Code: K120
Category: ROCK MECHANICS
Sub-Category: PHYSICAL PROPERTIES
- Used to determine the strength value of the rock specimens either in the field or in the laboratory.
- Designed to be light and easily ported from place to another.

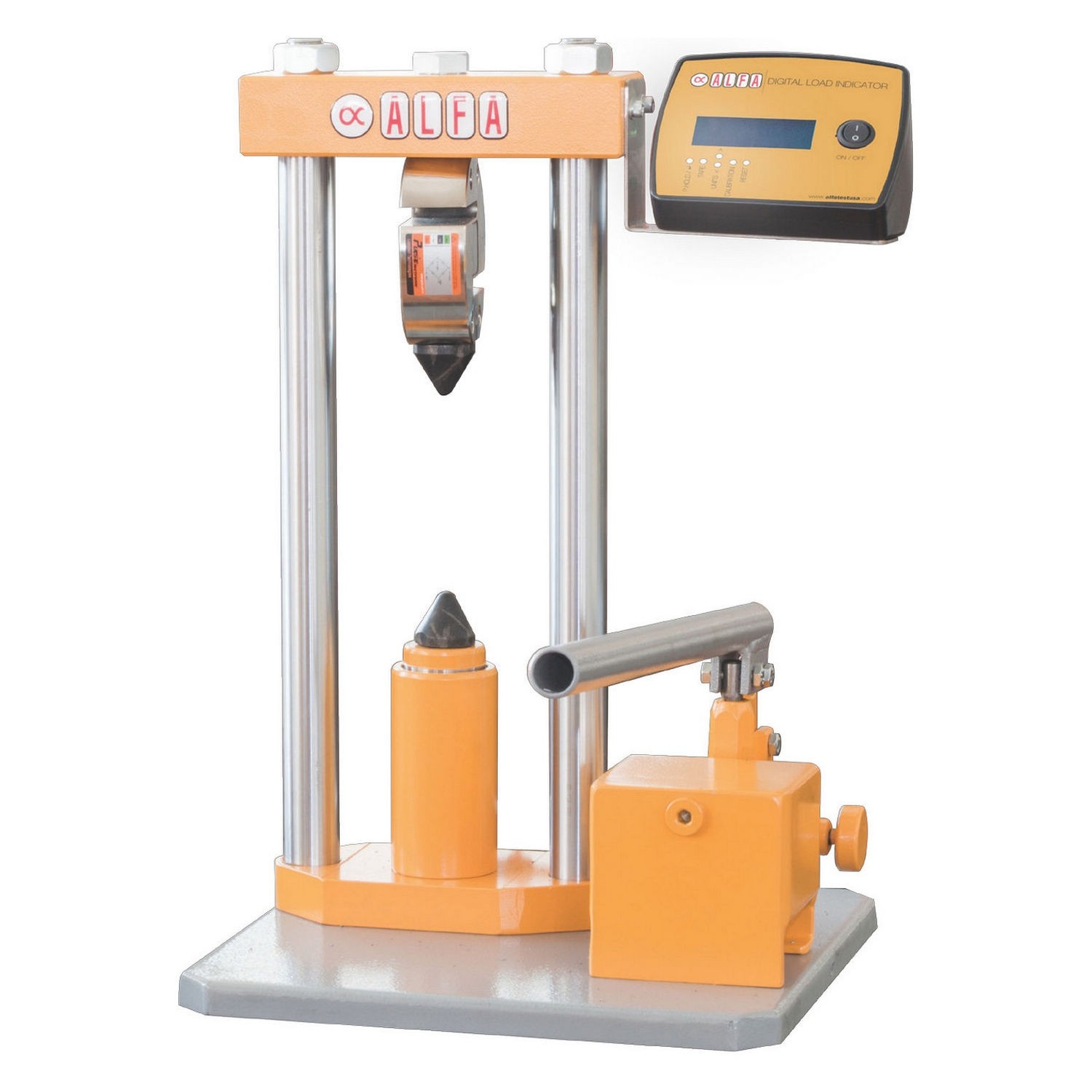

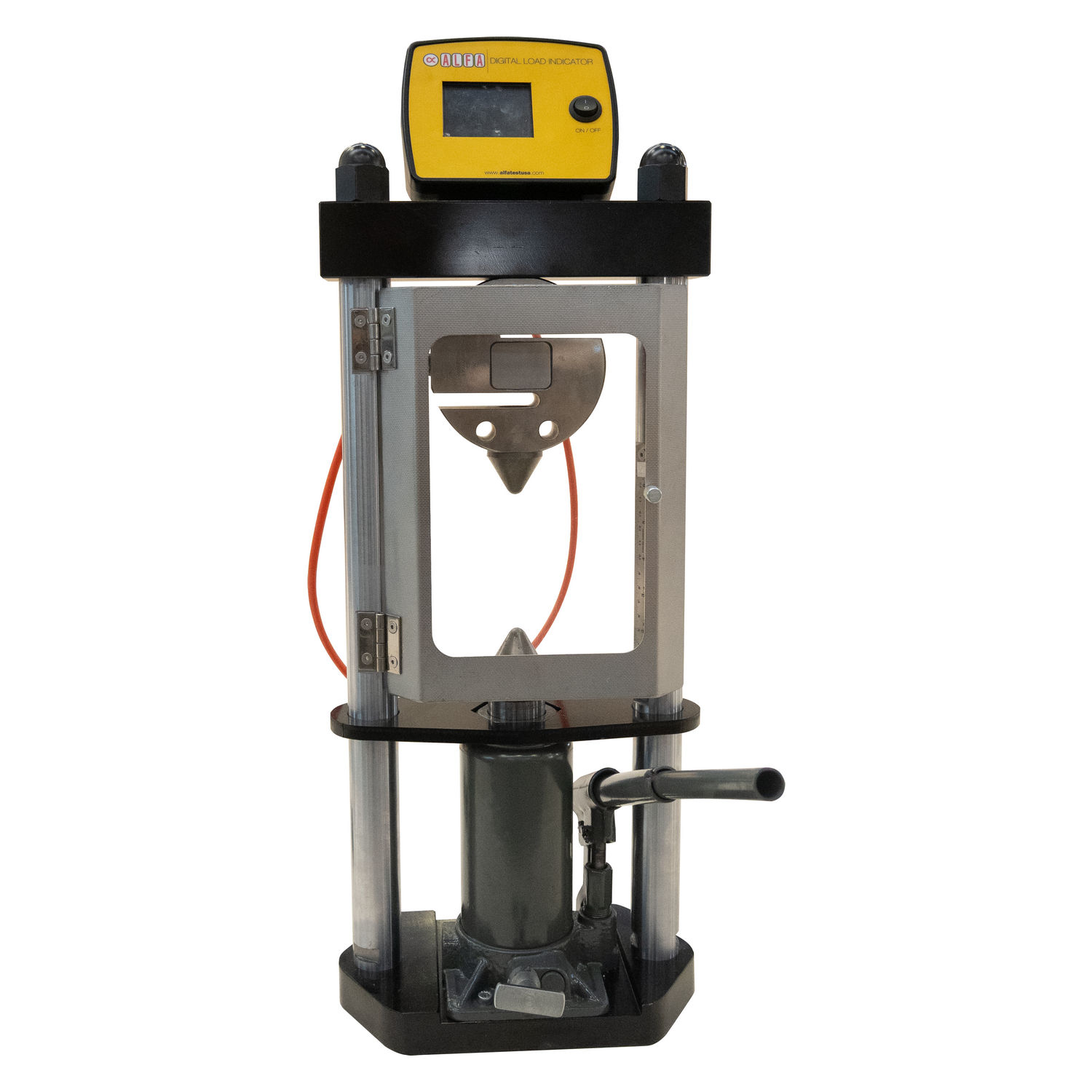

- Consists of two-column crosshead frame and a hand operated hydraulic jack, and the load is measured either by a digital manometer (RM-120) or by a precise load cell and a digital readout unit (RM-120/LC).
- The samples to be tested do not need to be regular in shape since the equipment can perform the test on irregular specimens too.
- Equipped with a digital indicator to measure the result.
- Provided with manual-hydraulic loading.
TECHNICAL SPECIFICATIONS
- Light and portable
- Max. Sample size : 102 mm
- Can test irregular shaped samples
- Force Reading Unit:
- Load Cell with Digital Indicator
- Manual – Hydraulic Loading
ORDERING INFORMATION
| Item | Code |
| DIGITAL POINT LOAD APPARATUS – 50 kN | K120H50AD |
| DIGITAL POINT LOAD APPARATUS – 100 kN | K120H01AD |
| SPARE CONE SET for K120 | K120P001H |
| JACK (50 kN) for K120 | K120P002H |
