Product Code: K110
Category: ROCK MECHANICS
Sub-Category: NON-DESTRUCTIVE TESTS

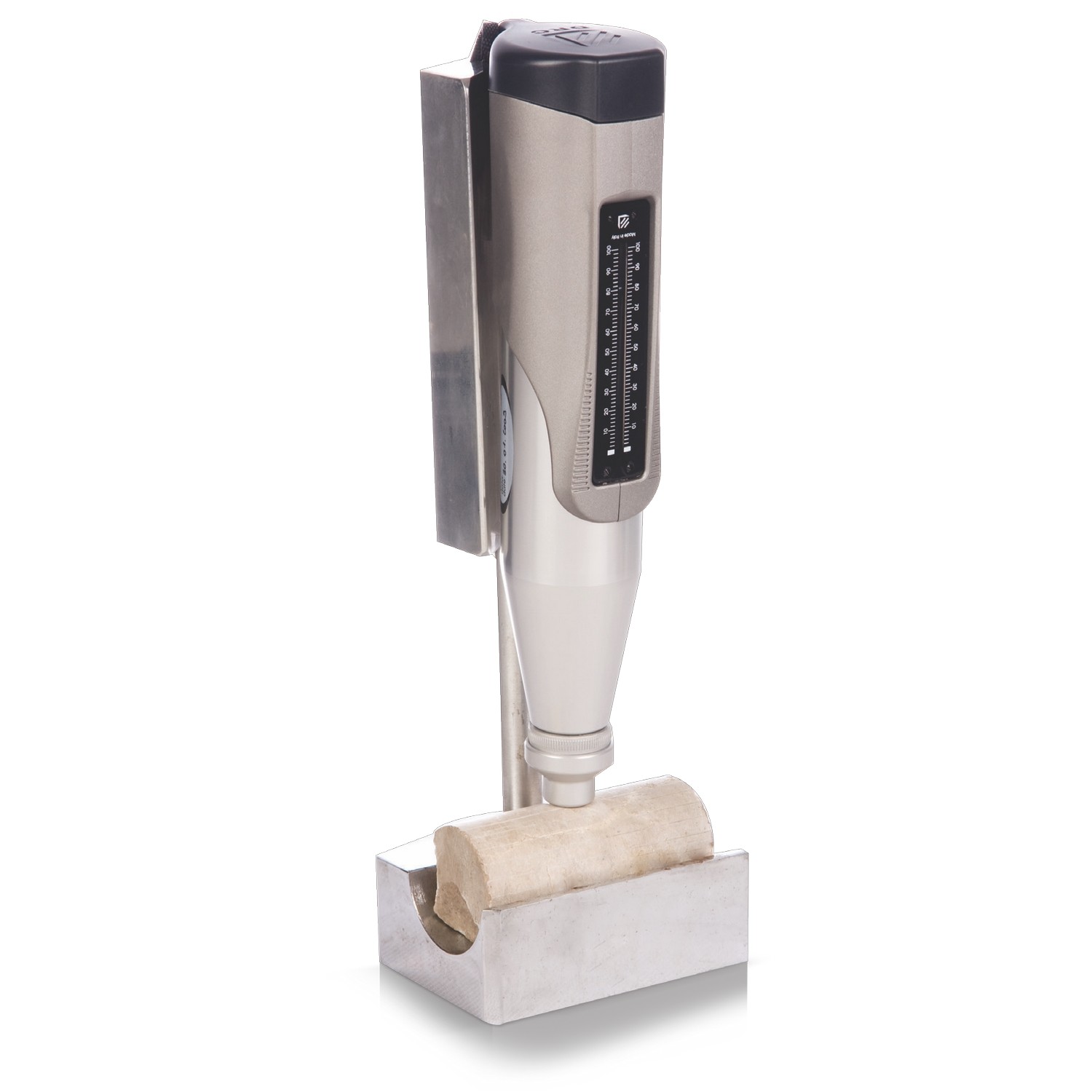

- The Rock Classification Hammer is a portable, spring-loaded impact device used to evaluate the surface hardness of rock specimens by measuring rebound values.
- The hammer is applied perpendicularly to the surface of horizontally positioned rock cores, typically of NX or NW size, to obtain rebound readings.
- Multiple measurements are taken along the length of the core to calculate an average rebound number, providing a rapid and non-destructive assessment of rock hardness.
- This method is particularly useful for preliminary site investigations, rock mass classification, and quality control in both field and laboratory settings.
- The device is supplied with a carrying case for ease of transport. A rock cradle, which facilitates consistent positioning during testing, is available separately.
STANDARDS
ASTM D5873 • ASTM C805 • EN 12504-2
TECHNICAL SPECIFICATIONS
- Impact Energy: 0.74 Nm
- Measurement Range: 10 to 60 N/mm²
- Hammer Body: Aluminum with integrated indicator scale
- Plunger: Spring-loaded steel mechanism
ORDERING INFORMATION
| Item Name | Item Code |
| ROCK CRADLE | K110P001H |
| ROCK CLASSIFICATION HAMMER | K110X00XH |
| ROCK CLASSIFICATION HAMMER – Proceq RS8000 | K110X01XH |
Keywords: Rock Classification Hammer, Rebound Hammer, ASTM D5873, ISRM Suggested Methods, Rock Hardness Testing, Non-Destructive Testing, Geotechnical Equipment, Rock Mechanics, Surface Hardness Tester, Field Testing Apparatus
