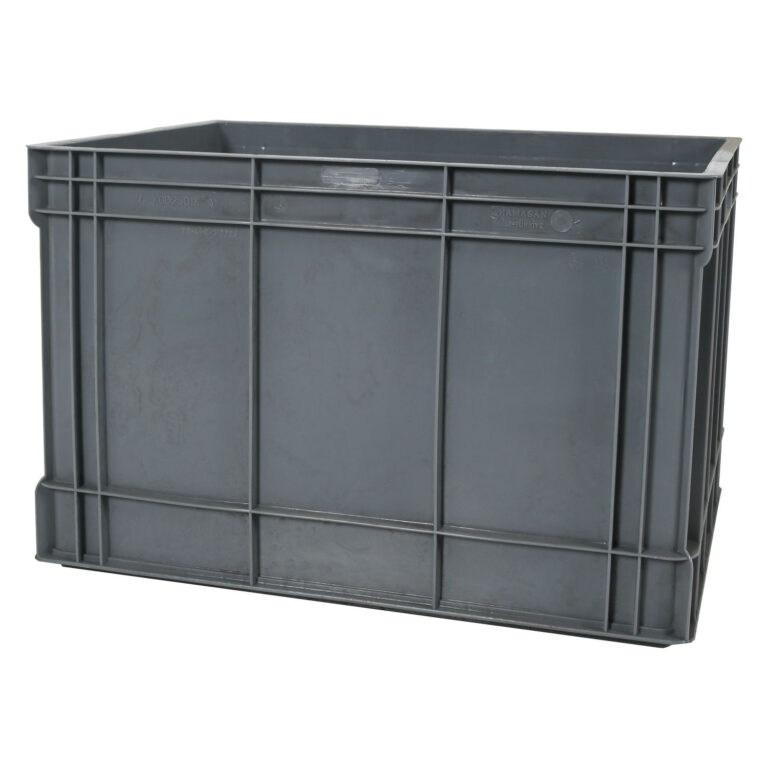

CBR SOAKING TANK (T019)
Category: Soil
Product Code: T019
Category: SOIL
Sub-Category: CALIFORNIA BEARING RATIO
- A CBR (California Bearing Ratio) mold and accessories set in engineering testing laboratories is used to determine the strength and bearing capacity of soil samples, typically for road construction and pavement design.
- The set includes the mold, a plunger, and other accessories necessary for compacting the soil sample, applying load, and measuring the penetration to assess the soil's resistance to deformation under stress.
- This test helps engineers design pavements and evaluate the suitability of soils for construction projects.
- Parts can be ordered as set or in pieces
STANDARDS
ASTM 1883 • BS 1377-4 • EN 13286-47
TECHNICAL SPECIFICATIONS
- Made of galvanized steel
ORDERING INFORMATION
| Item | Code |
| CBR EQUIPMENT SET – ASTM | T01XX00AH |
| CBR EQUIPMENT SET – BS | T01XX00BH |
| CBR EQUIPMENT SET – EN | T01XX00EH |
| COLLAR for CBR MOULD – ASTM | T010P001H |
| COLLAR for CBR MOULD – BS | T010P002H |
| COLLAR for CBR MOULD – EN | T010P003H |
| CUTTING EDGE for CBR – ASTM | T010P004H |
| CBR MOULD BODY – ASTM | T010P005H |
| CBR MOULD BODY – BS | T010P006H |
| CBR MOULD BODY – EN | T010P007H |
| FILTER PAPER – CBR | T010P008H |
| FILTER SCREEN – CBR | T010P009H |
| CBR MOULD – ASTM | T010X00AH |
| CBR MOULD – BS | T010X00BH |
| CBR MOULD – EN | T010X00EH |
| CBR MOULD – NF | T010X00FH |
| CBR MOULD – AS | T010X00SH |
| CBR SOLID BASE PLATE – ASTM | T011X00AH |
| CBR SOLID BASE PLATE – BS | T011X00BH |
| CBR SOLID BASE PLATE – EN | T011X00EH |
| CBR PERFORATED BASE PLATE – ASTM | T012X00AH |
| CBR PERFORATED BASE PLATE – BS | T012X00BH |
| CBR PERFORATED BASE PLATE – EN | T012X00EH |
| CBR SPACER DISC w/ T-HANDLE – ASTM | T013X00AH |
| CBR SPACER PLUG w/ T-HANDLE – BS | T013X00BH |
| CBR SPACER DISC w/ T-HANDLE – EN | T013X00EH |
| CBR SLOTTED SURCHARGE WEIGHT – ASTM | T014X00AH |
| CBR SPLIT SURCHARGE WEIGHT – BS | T014X00BH |
| CBR SPLIT SURCHARGE WEIGHT – EN | T014X00EH |
| CBR SLOTTED SURCHARGE WEIGHT – AS | T014X00SH |
| CBR ANNULAR SURCHARGE WEIGHT – ASTM | T015X00AH |
| CBR ANNULAR SURCHARGE WEIGHT – BS | T015X00BH |
| CBR ANNULAR SURCHARGE WEIGHT – EN | T015X00EH |
| CBR ANNULAR SURCHARGE WEIGHT – NF | T015X00FH |
| CBR ANNULAR SURCHARGE WEIGHT – AS | T015X00SH |
| CBR SWELL PLATE – ASTM | T016X00AH |
| CBR SWELL PLATE – BS | T016X00BH |
| CBR SWELL PLATE – EN | T016X00EH |
| CBR SWELL PLATE – AS | T016X00SH |
| CBR TRIPOD – ASTM | T017X00AH |
| CBR TRIPOD – BS | T017X00BH |
| CBR TRIPOD – EN | T017X00EH |
| CBR SOAKING TANK | T019X00XH |
