CBR TESTING MACHINE (Digital) (T001M)

Download DatasheetPrint

Product Code: T001M

Category: SOIL

Sub-Category: CALIFORNIA BEARING RATIO

• The Laboratory CBR Tester is used to determine the California Bearing Ratio (CBR) of soil specimens, a critical parameter for evaluating the mechanical strength of road subgrades and base layers in pavement design.
• Available in Fully Automatic, Digital, and Load-Ring models, the apparatus caters to varying levels of automation and data acquisition requirements, ensuring adaptability to diverse laboratory needs.
• The Fully Automatic model features a 7″ touch screen interface and integrated software, enabling automatic test execution, real-time data visualization, and generation of comprehensive reports, thereby enhancing efficiency and reducing operator intervention.

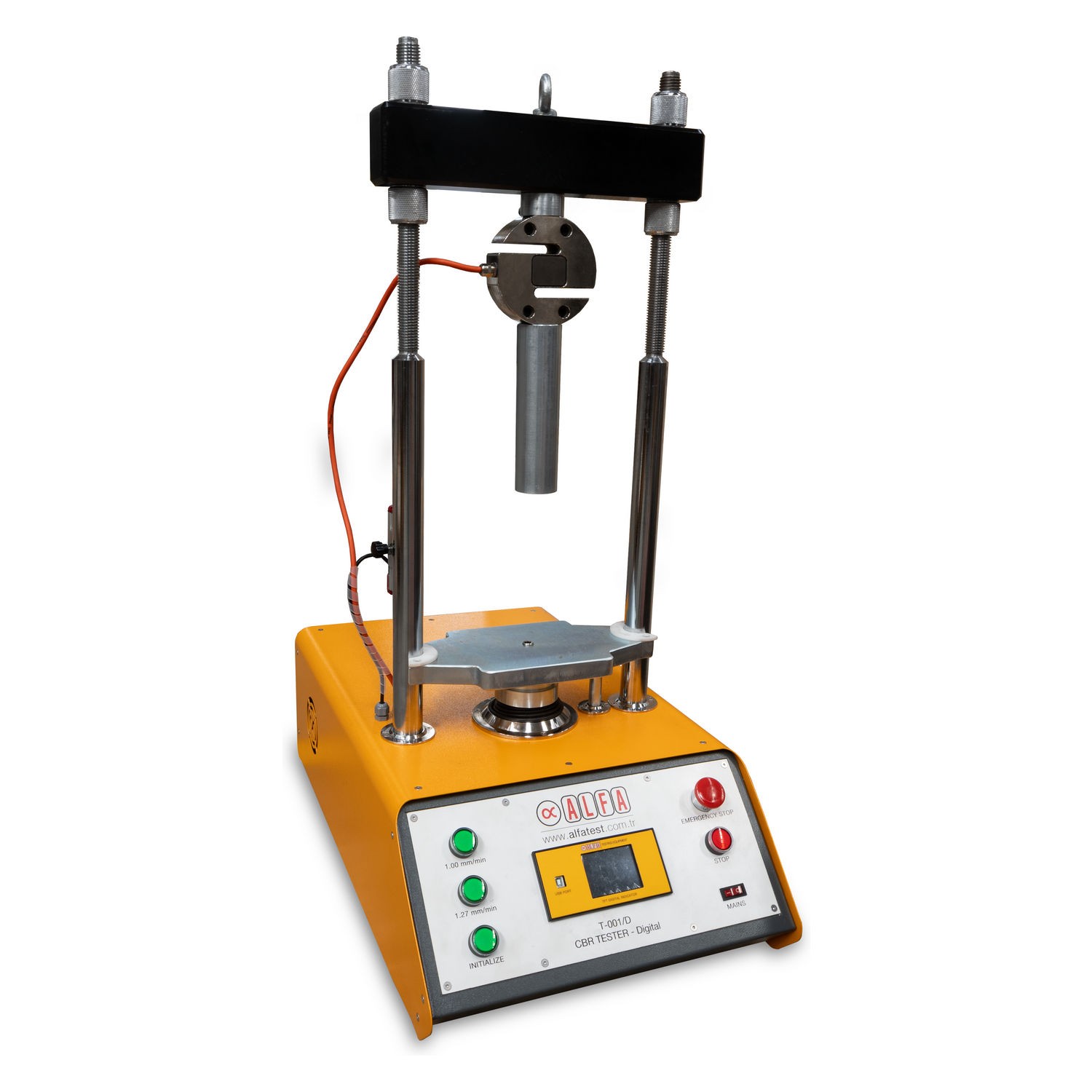

• The Digital model is equipped with a touch screen load/flow indicator and PC connectivity, facilitating real-time data transfer and plotting of load versus penetration graphs, essential for detailed analysis and documentation.

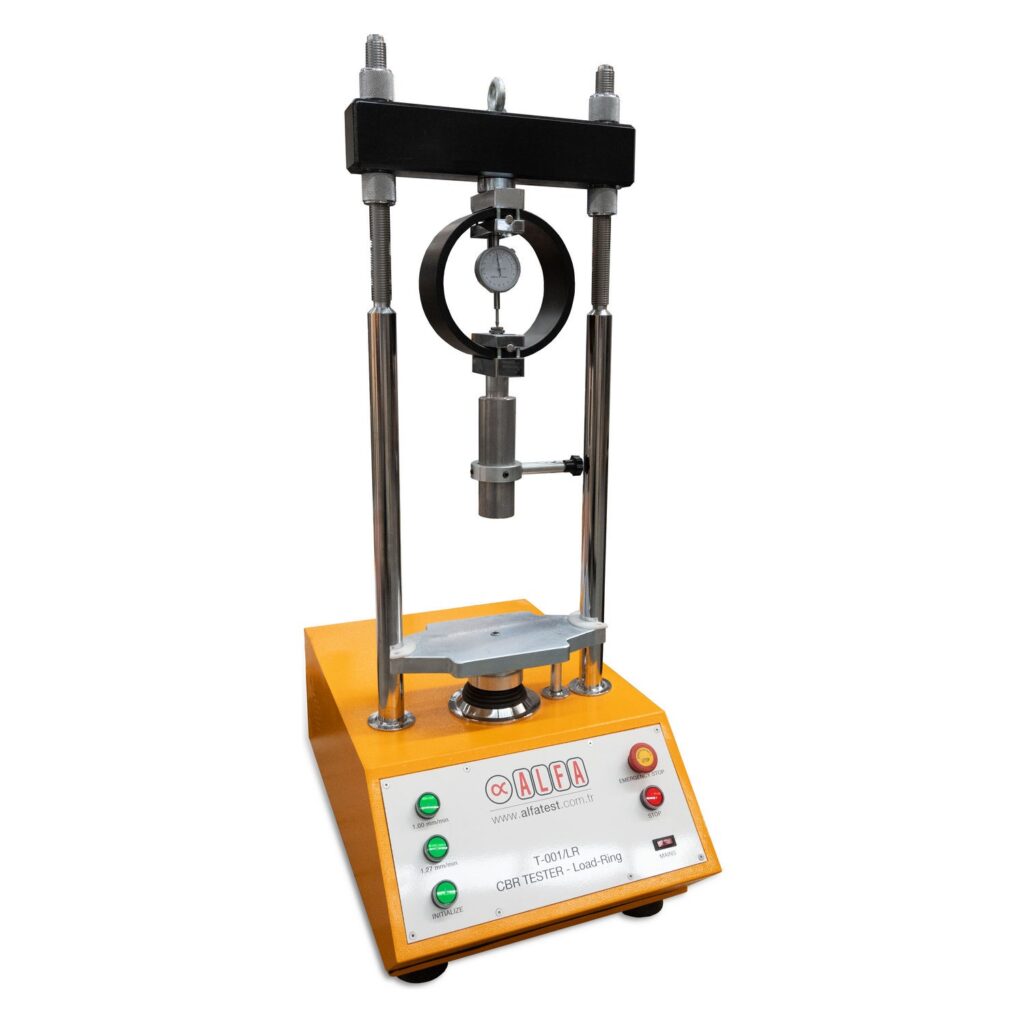

• The Load-Ring model incorporates a mechanical load ring and dial indicators, providing a cost-effective solution for laboratories preferring manual data recording while maintaining compliance with international testing standards.
• All models are designed to apply loads at standardized rates of 1.00 mm/min and 1.27 mm/min, conforming to ASTM D1883, BS 1377-4, and EN 13286-47 specifications, ensuring consistency and reliability in test results.
• Constructed with high-quality materials and components, the CBR Tester ensures durability and long-term performance in rigorous laboratory environments.

STANDARDS

ASTM D1883 • EN 13286-47 • BS 1377-4

TECHNICAL SPECIFICATIONS

• Capacity: 50 kN
• Load Rates: 1.00 mm/min and 1.27 mm/min
• Power Supply: 220 – 240 V / 50 – 60 Hz

• Fully Automatic Model:
  • Control Interface: 7″ Touch Screen with PC Software for Reporting and Automatic Calculations & Corrections
  • Load Measurement: High Precision Load Cell
  • Penetration Measurement: Electronic Measurement with Peak Hold Function
• Digital Model:
  • Display: Touch Screen Load/Flow Indicator with PC Software for Data Collection
  • Load Measurement: High Precision Load Cell
  • Penetration Measurement: Electronic Measurement with Peak Hold Function
• Load-Ring Model:
  • Load Measurement: Mechanical Load Ring
  • Penetration Measurement: Dial Indicator

EQUIPPED WITH

• CBR Penetration Piston
• USB Connectivity for Data Transfer (Fully Automatic and Digital Models)

ORDERING INFORMATION
