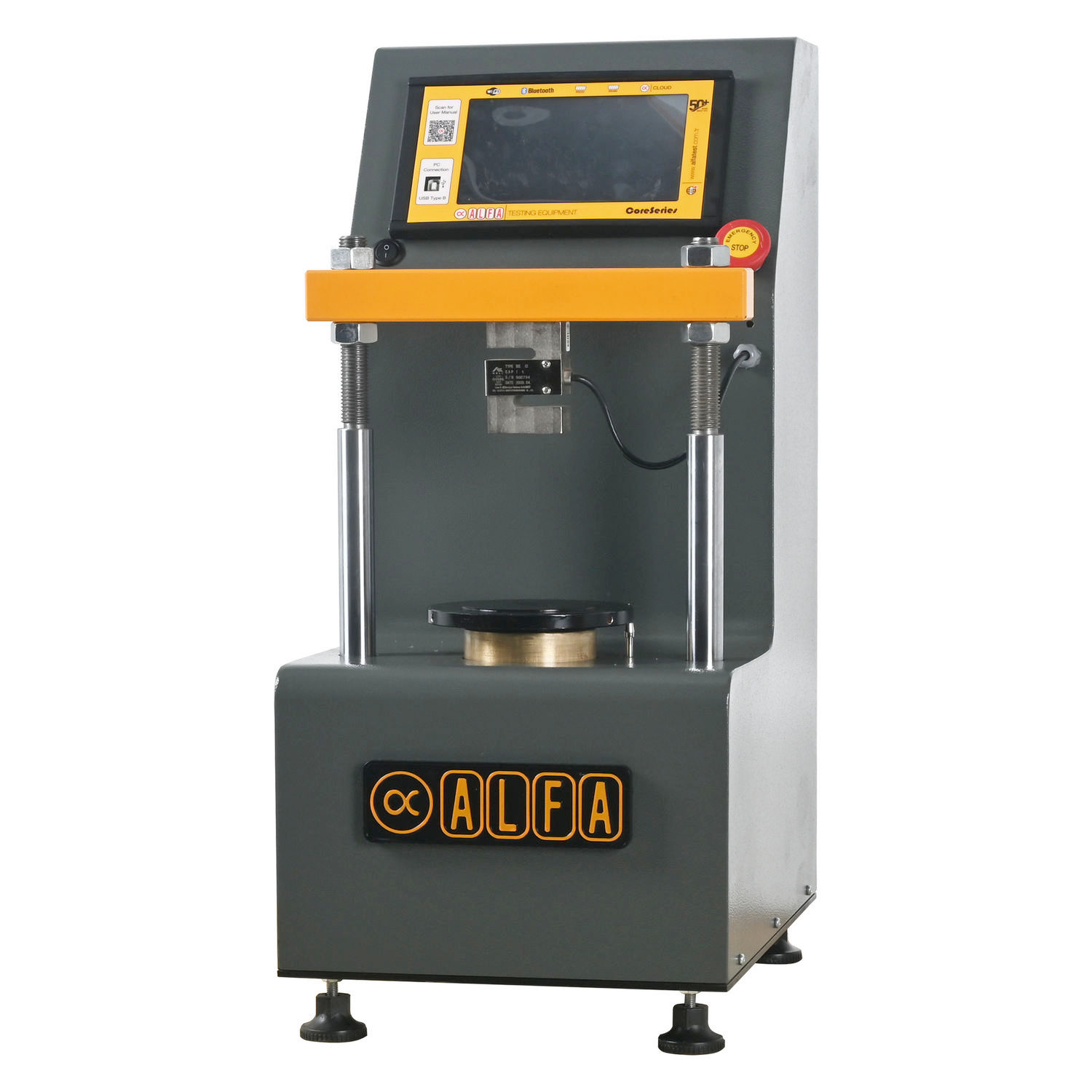

CONSOLIDATION APPARATUS (Automatic, Oedometer) (T210A)

Download DatasheetPrint

Product Code: T210A

Category: SOIL

Sub-Category: CONSOLIDATION

• The Automatic Consolidation Device is designed for fully automated execution of one-dimensional consolidation and swell tests in accordance with international standards. The system ensures high accuracy, repeatability, and efficiency in soil compressibility evaluation.
• Combines servo-controlled loading with real-time data acquisition to perform incremental consolidation, constant rate of strain, swelling, CHG, and optional unconfined compression tests without manual intervention.
• Available in 10 kN, 20 kN, and 50 kN configurations, offering flexibility for a broad range of specimen stiffness and expected load profiles.
• Utilizes closed-loop PID control and precision transducers for reliable application and monitoring of axial displacement and load.
• Features compact, bench-top design with integrated actuators and modular electronics, eliminating the need for dead weights or hydraulic systems.
• Supports networked operation with USB connectivity for centralized control, and includes touchscreen interface for standalone use.
• Compatible with Windows-based software for automated test management, result plotting, and report generation in multiple international formats.
• Includes test cells for 50 mm diameter samples as standard, with options for alternative specimen sizes and back-pressure saturation.

STANDARDS

ASTM D2435 • ASTM D3877 • ASTM D4546 • EN 17892-5 • AASHTO T216 • BS 1377-5

TECHNICAL SPECIFICATIONS

• Load capacity options: 10 kN / 20 kN / 50 kN
• Load application: Servo-controlled
• Displacement transducer travel: 10 mm
• Speed: Adjustable up to 10 mm/min
• Sample diameter: Ø 50 mm standard (other dimensions are available and should be ordered separately)
• Control interface: Digital Touch Screen Controlling Unit with USB Connection to PC
• Data acquisition: Integrated, multi-channel, real-time logging
• Power Supply: 220 – 240 V /  50 – 60 Hz


EQUIPPED WITH

• Precision load cell and LVDT-type displacement transducer
• Automated load and displacement control via PID feedback
• Digital Touch Screen Controlling Unit with USB Connection to PC

SUPPLIED WITH

• Consolidation Cell (Ø 50 mm)
• Porous Stones (Ø 50 mm)
• Cutting Ring (Ø 50 mm)

ORDERING INFORMATION

Keywords: automated oedometer, consolidation test machine, swell test system, 50 kN oedometer, ASTM D2435, BS 1377-5, PID load control, servo oedometer, soil compressibility test, laboratory soil equipment
