Product Code: T221
Category: SOIL
Sub-Category: SHEAR STRENGTH

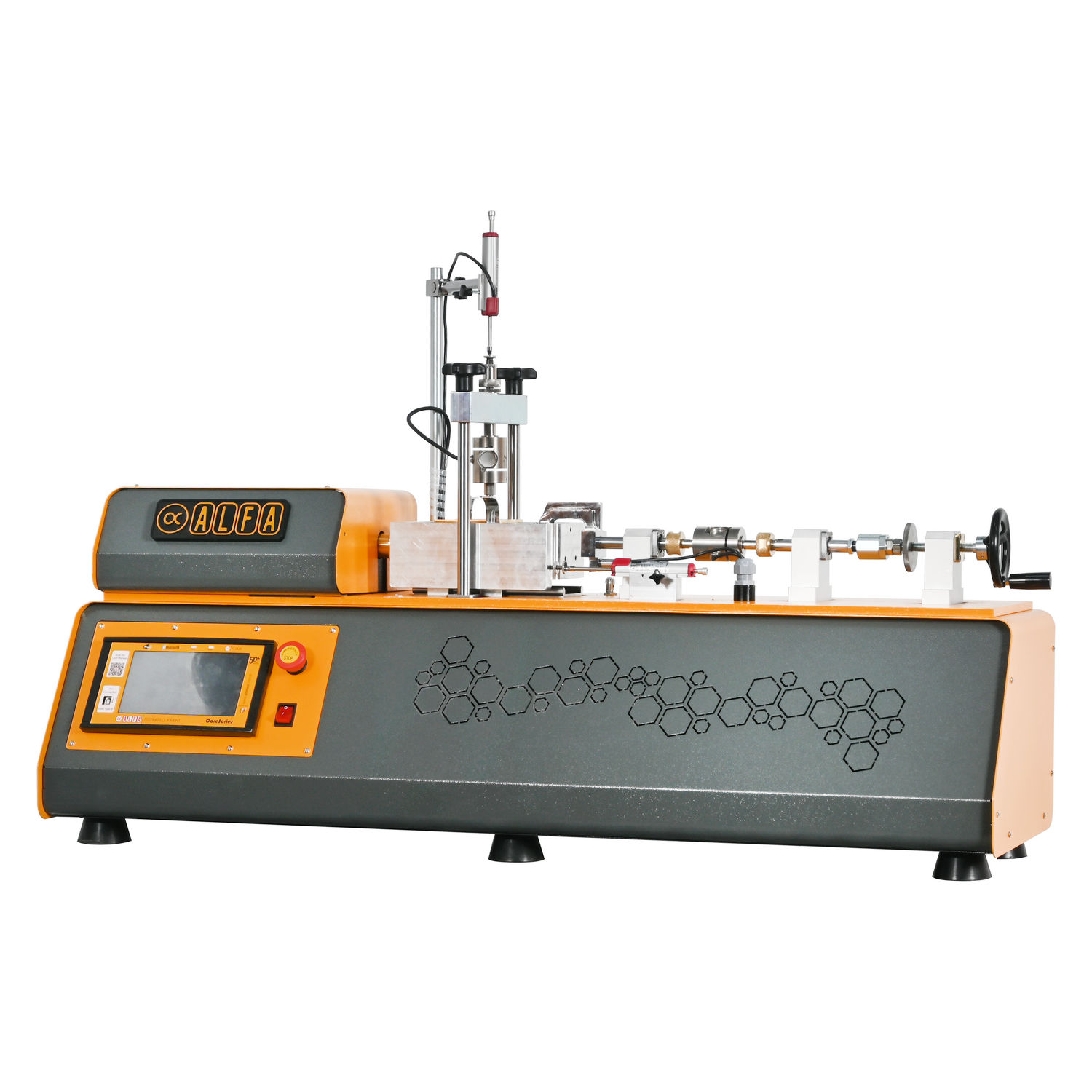

- Used to determine the resistance of soil against shear forces applied on it.
- The device is equipped with a TFT touch screen, load cell with a capacity of 5 kN.
- The loading speed varies from 5 – 0.00001 mm/min.
- Supplied with vertical and horizontal LVDTs, automatic vertical loading assembly, shear box and weight set.
STANDARDS
ASTM D3080 • BS 1377-7
ORDERING INFORMATION
| Item Name | Item Code |
| DIRECT SHEAR TESTER (Electromechanical Model) | T221A10XU |
