Product Code: T301
Category: SOIL
Sub-Category: SOIL CLASSIFICATION
- The Lightweight Dynamic Penetrometer (T301) is a manually operated device used for in-situ assessment of soil compaction and bearing capacity. It is particularly effective for evaluating the relative density of subgrade layers and engineered fills in road construction, foundation assessments, and geotechnical investigations.
- Utilizing a 10 kg drop hammer falling from a height of 500 mm, the T301 drives a cone into the soil, measuring penetration resistance per blow. This data correlates with soil strength parameters such as California Bearing Ratio (CBR) and allows for quick identification of weak zones or inconsistencies in compaction.
- The apparatus includes interchangeable drive points with cross-sectional areas of 500 mm² and 1000 mm², accommodating a range of soil conditions. Sounding rods and a lifting device facilitate penetration depending on soil stiffness.
- Constructed with durable materials and designed for ease of assembly and transport, the T301 is suitable for both field and laboratory settings, providing reliable and repeatable measurements essential for quality control and assurance in civil engineering projects.
STANDARDS
DIN 4094
SET
- Hammer mass: 10 kg
- Drop height: 500 mm
- Cone angles: 90°
- Cone cross-sectional areas:
- 500 mm² (Ø 24.2 mm)
- 1000 mm² (Ø 35.6 mm)
- Sounding rods: 1 m length, Ø 22 mm
- Maximum penetration depth: up to 11 m (soil-dependent)

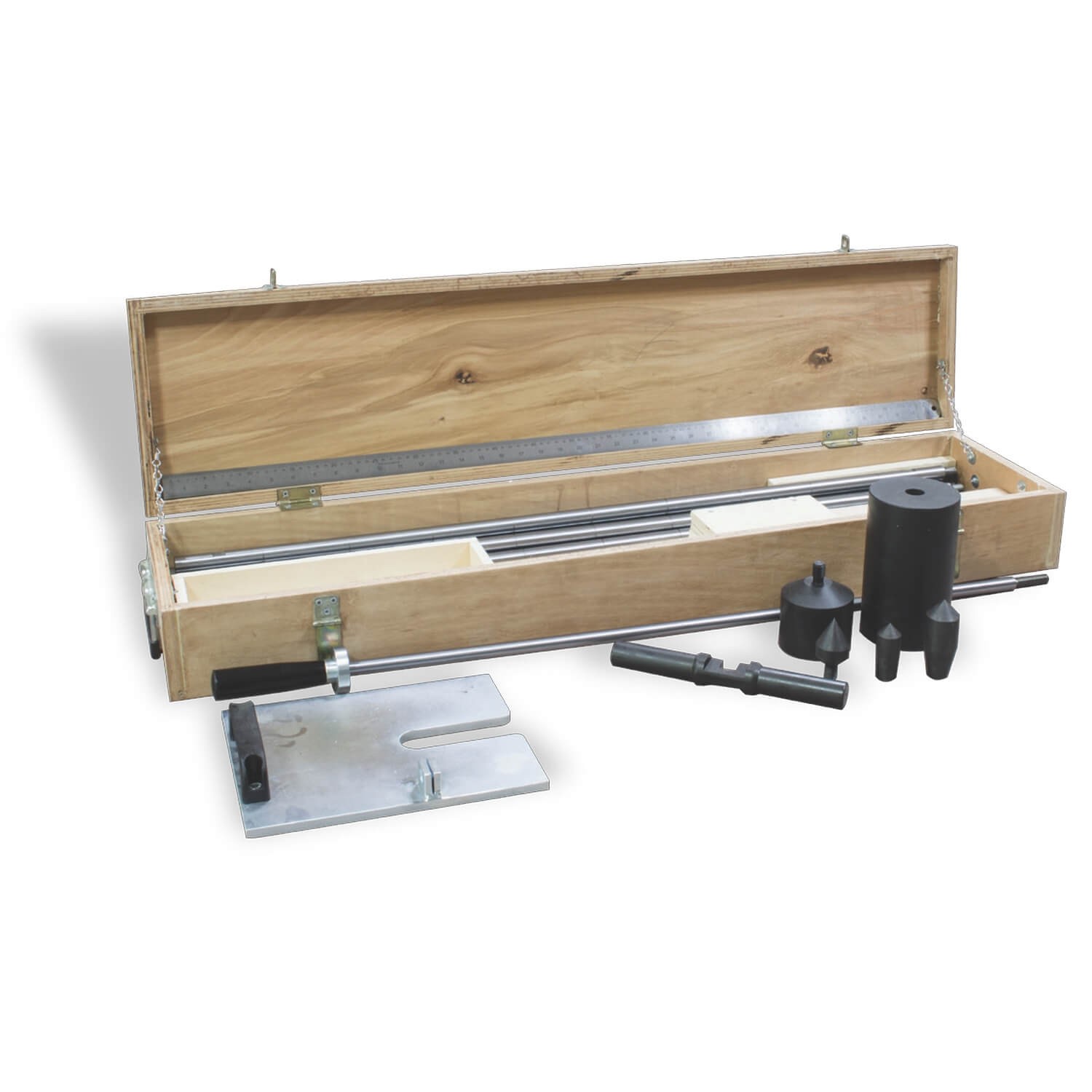

SUPPLIED WITH
- Drive point – 90°, 500 mm²
- Drive point – 90°, 1000 mm²
- Sounding rods – 1 m x 11
- Grooved rod for sample extraction
- Lifting device for sounding rods
- 10 kg hammer
- Anvil with guiding rod
- Carrying case
ORDERING INFORMATION
| Item Name | Item Code |
| DRIVE POINT – 90° x 500 mm² x Ø 24.2 mm | T301P001H |
| DRIVE POINT – 90° x 1000 mm² x Ø 35.6 mm | T301P002H |
| SOUNDING ROD – 1 m | T301P003H |
| LIFTING DEVICE for SOUNDING BAR | T301P004H |
| GROOVED ROD for SAMPLE EXTRACTION | T301P005H |
| HAMMER (10 kg) for T301 | T301P006H |
| ANVIL with GUIDING ROD for T301 | T301P007H |
| LIGHTWEIGHT DYNAMIC PENETROMETER SET | T301X00XH |
Keywords: lightweight dynamic penetrometer, T301, DIN 4094, EN ISO 22476-2, in-situ soil testing, soil compaction assessment, CBR estimation, geotechnical field equipment, dynamic cone penetration, manual penetrometer, soil strength evaluation
