PLASTIC LIMIT TEST SET (T035)

Download DatasheetPrint

Product Code: T035

Category: SOIL

Sub-Category: ATTERBERG LIMITS

• The Plastic Limit Test Set is used to determine the plastic limit of fine-grained soils, which is the lowest moisture content at which soil remains plastic. This parameter is crucial for soil classification and assessing the behavior of soils under varying moisture conditions.
• The test involves rolling a soil sample into threads of 3 mm diameter. The moisture content at which the threads begin to crumble indicates the plastic limit. This method provides a simple yet effective means to evaluate soil consistency.

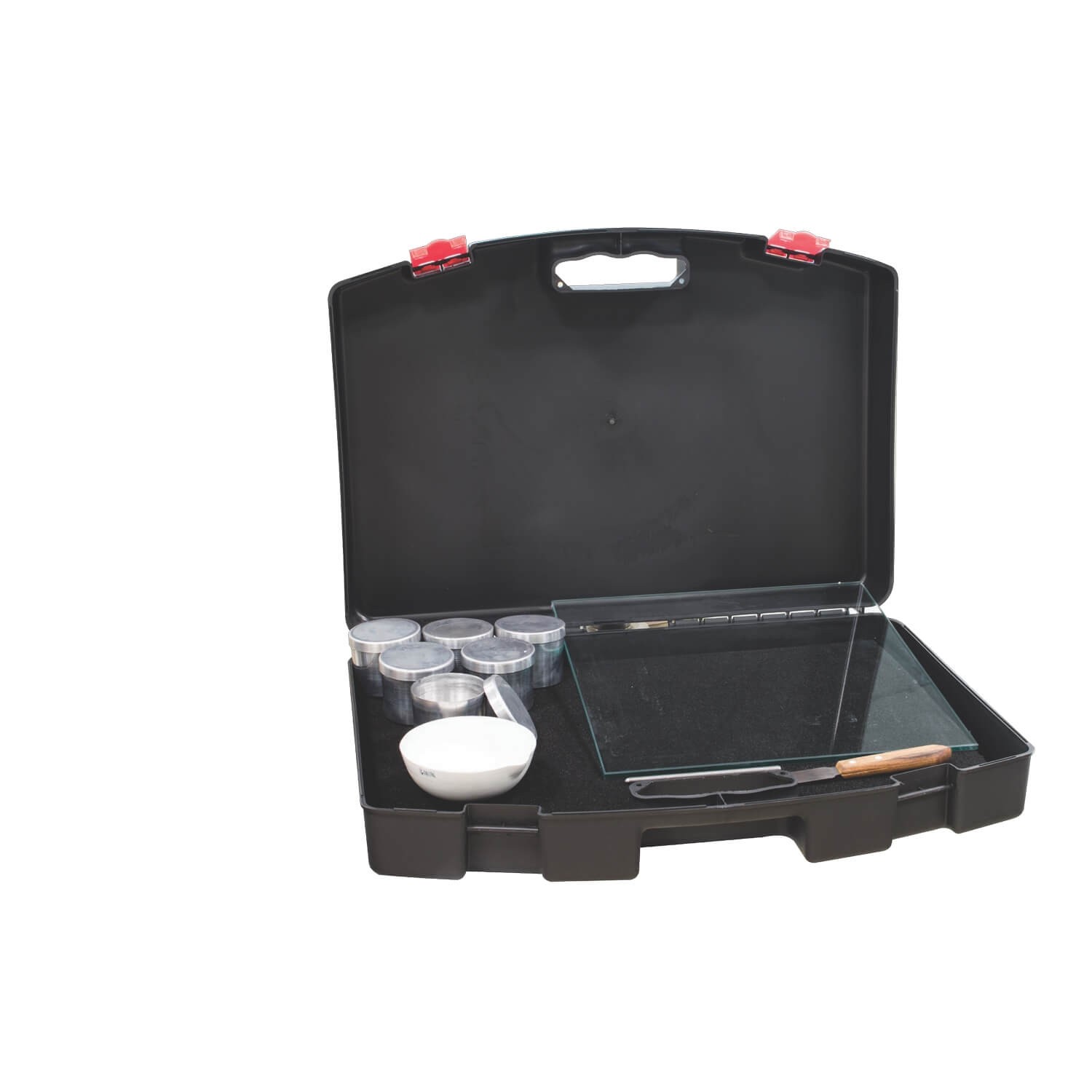

• The set includes a glass plate providing a non-porous surface for rolling, a stainless steel rod to verify thread diameter, moisture tins for sample storage, an evaporating dish for mixing, and a spatula for handling samples.
• Compliant with international standards, the Plastic Limit Test Set ensures accurate and repeatable results, making it suitable for geotechnical laboratories and field testing.
• When used alongside the Liquid Limit Test, this set facilitates the determination of the Plasticity Index, a vital parameter for evaluating soil plasticity and workability.

STANDARDS

ASTM D4318 • AASHTO T90 • BS 1377:2

TECHNICAL SPECIFICATIONS

• Glass plate: 300 x 300 mm
• Stainless steel rod: Ø 3 mm
• Moisture tins: Ø 55 x 35 mm, with lids
• Evaporating dish: 300 ml, Ø 125 mm
• Spatula: 100 mm

ORDERING INFORMATION
