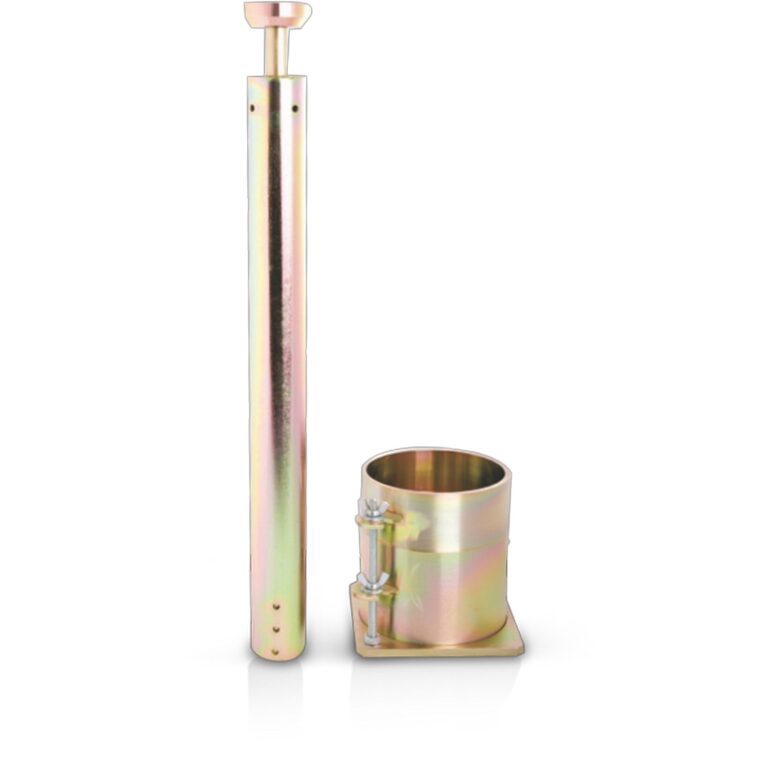

PROCTOR SET (T050)

Product Code: T050

Category: SOIL

Sub-Category: MOISTURE-DENSITY RELATIONSHIP

---



• Used to determine the relationship between molding water content and dry unit weight of soils (compaction curve) compacted in a standard / modified mold with a rammer dropped from a specific height producing a compactive effort
• Specifying this relationship will help detecting the optimum moisture contact of the compacted soil sample along with its maximum dry density
• The mould composed of base plate, mould body and collar

---

TECHNICAL SPECIFICATIONS

Item	Diameter	Height (Drop)	Weight
Standard Proctor Mould (ASTM)	4” (101.6 mm)	4.584” (116.4 mm)	–
Standard Proctor Rammer (ASTM)	2” (50.8 mm)	12” (304.8 mm)	5.5 lb (2.495 kg)
Standard Proctor Mould (EN)	100 mm	120 mm	–
Standard Proctor Rammer (EN)	50 mm	305 mm	2.50 kg
Standard Proctor Mould (BS)	105 mm	115.5 mm	–
Standard Proctor Rammer (BS)	50 mm	300 mm	2.50 kg
Modified Proctor Mould (ASTM)	6” (152.4 mm)	4.584” (116.4 mm)	–
Modified Proctor Rammer (ASTM)	2” (50.8 mm)	18” (457.2 mm)	10 lb (4.5364 kg)
Modified Proctor Mould (EN)	150 mm	120 mm	–
Modified Proctor Rammer (EN)	50 mm	457 mm	4.50 kg
Modified Proctor Mould (BS)	N/A	N/A	N/A
Modified Proctor Rammer (BS)	50 mm	450 mm	4.50 kg

ORDERING INFORMATION
Item Code
STANDARD PROCTOR SET – ASTM T 050 X10A H
STANDARD PROCTOR MOULD – ASTM T 050 P006 H
STANDARD PROCTOR RAMMER – ASTM T 050 P009 H
STANDARD PROCTOR SET – EN T 050 X10E H
STANDARD PROCTOR MOULD – EN T 050 P008 H
STANDARD PROCTOR RAMMMER – EN T 050 P011 H
STANDARD PROCTOR SET – BS T 050 X10B H
STANDARD PROCTOR MOULD – BS T 050 P007 H
STANDARD PROCTOR RAMMER – BS T 050 P010 H
MODIFIED PROCTOR SET – ASTM T 050 X15A H
MODIFIED PROCTOR MOULD – ASTM T 050 P001 H
MODIFIED PROCTOR RAMMER – ASTM T 050 P003 H
MODIFIED PROCTOR SET – EN T 050 X15E H
MODIFIED PROCTOR MOULD – EN T 050 P002 H
MODIFIED PROCTOR RAMMER – EN T 050 P005 H
MODIFIED PROCTOR RAMMER – BS T 050 P004 H

---
