Product Code: T045
Category: SOIL
Sub-Category: DENSITY DETERMINATION

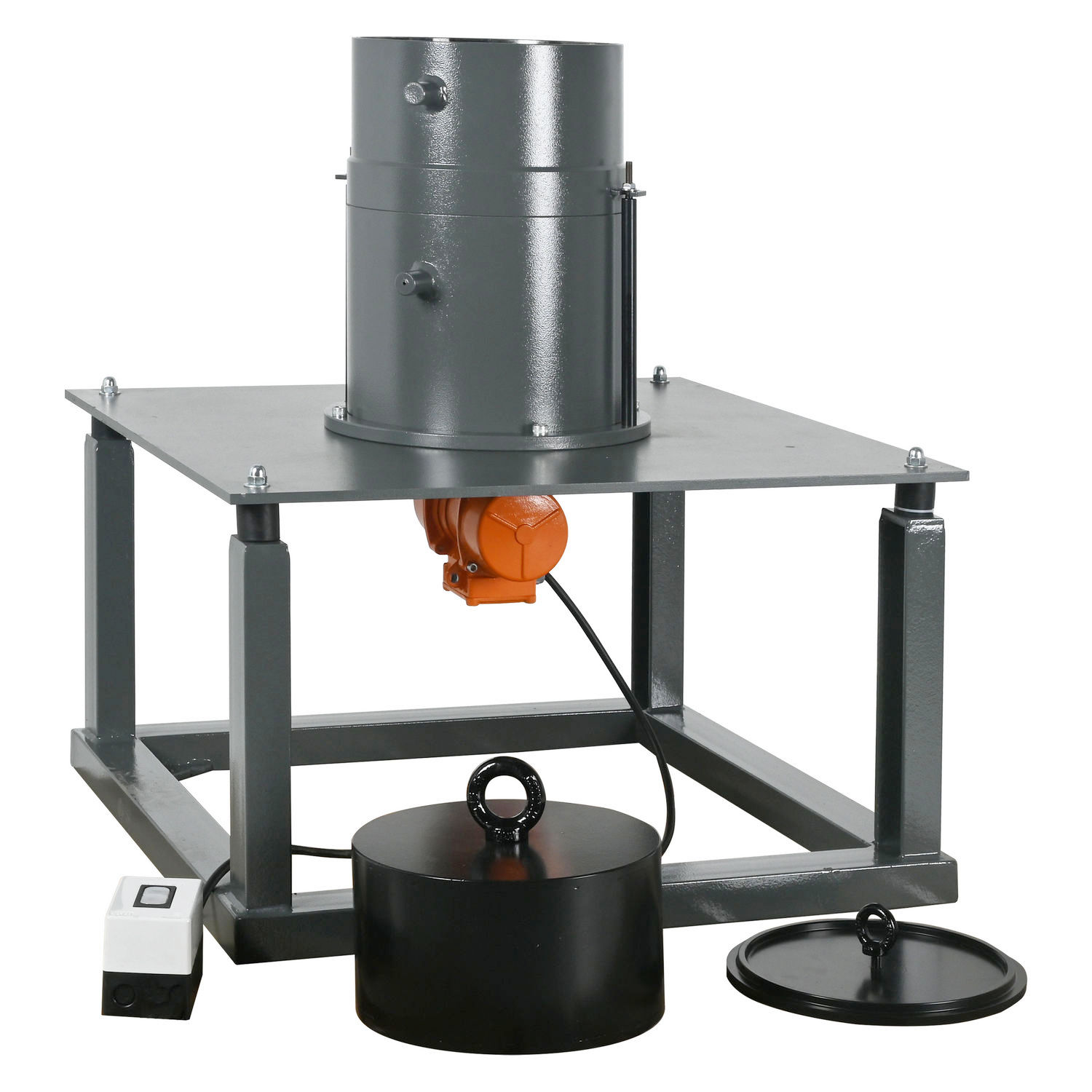

- Used to determine the maximum-index dry density/unit weight of cohesionless, free-draining soils using a vertically vibrating table.
- For many cohesionless free-draining soils, the maximum index density/unit weight is one of the key components in evaluating the state of compactness of a given soil mass that is either naturally occurring or placed during construction.
- Relative density and percent compaction are commonly used for evaluating the state of compactness of a given soil mass. Density/unit weight index is also sometimes used.
STANDARDS
ASTM D2453 • EN 13286-5
TECHNICAL SPECIFICATIONS
- Electromagnetic (760 mm x 760 mm)
- 220 – 240 V / 50 – 60 Hz
ASTM Model:
- Moulds:
- 0.500 cu.ft. (14,200 cm³) / Ø 11” (279.40 mm)
- 0.100 cu.ft. (2,830 cm³) / Ø 6” (152.40 mm)
- Surcharge Weight:
- 56.50 lb (25.6 kg) for Ø 6” mould
- 190 lb (86.2 kg) for Ø 11” mould
EN Model:
- Mould:
- 0.500 cu.ft. (14,200 cm³) / Ø 11” (279.40 mm)
- Surcharge Weight:
- 190 lb (86.2 kg) for Ø 11” mould
ORDERING INFORMATION
| Item | Code |
| RELATIVE DENSITY SET – ASTM | T045X00AU |
| RELATIVE DENSITY SET – ASTM [60 Hz] | T045X00AK |
| RELATIVE DENSITY SET – EN | T045X00EU |
| RELATIVE DENSITY SET – EN [60 Hz] | T045X00EK |
| RELATIVE DENSITY MOULD – 0.5 ft³ | T045P001H |
| RELATIVE DENSITY MOULD – 0.1 ft³ | T045P002H |
| POURING FUNNEL – Ø 25 mm | T045P003H |
| POURING FUNNEL – Ø 12.5 mm | T045P004H |
