Product Code: T061
Category: SOIL
Sub-Category: DENSITY DETERMINATION
- The Sand Cone / Replacement Test Set is used to determine the in-situ density of compacted fine-grained soils using the sand replacement method, providing accurate measurements essential for quality control in earthworks and pavement construction.
- The test involves excavating a hole in the compacted soil layer, filling it with calibrated sand from a container, and measuring the volume of sand required to fill the hole, thereby calculating the soil's density.
- This apparatus is particularly effective for soils with particles smaller than 50 mm and is widely used in geotechnical investigations and construction projects to ensure compliance with compaction specifications.

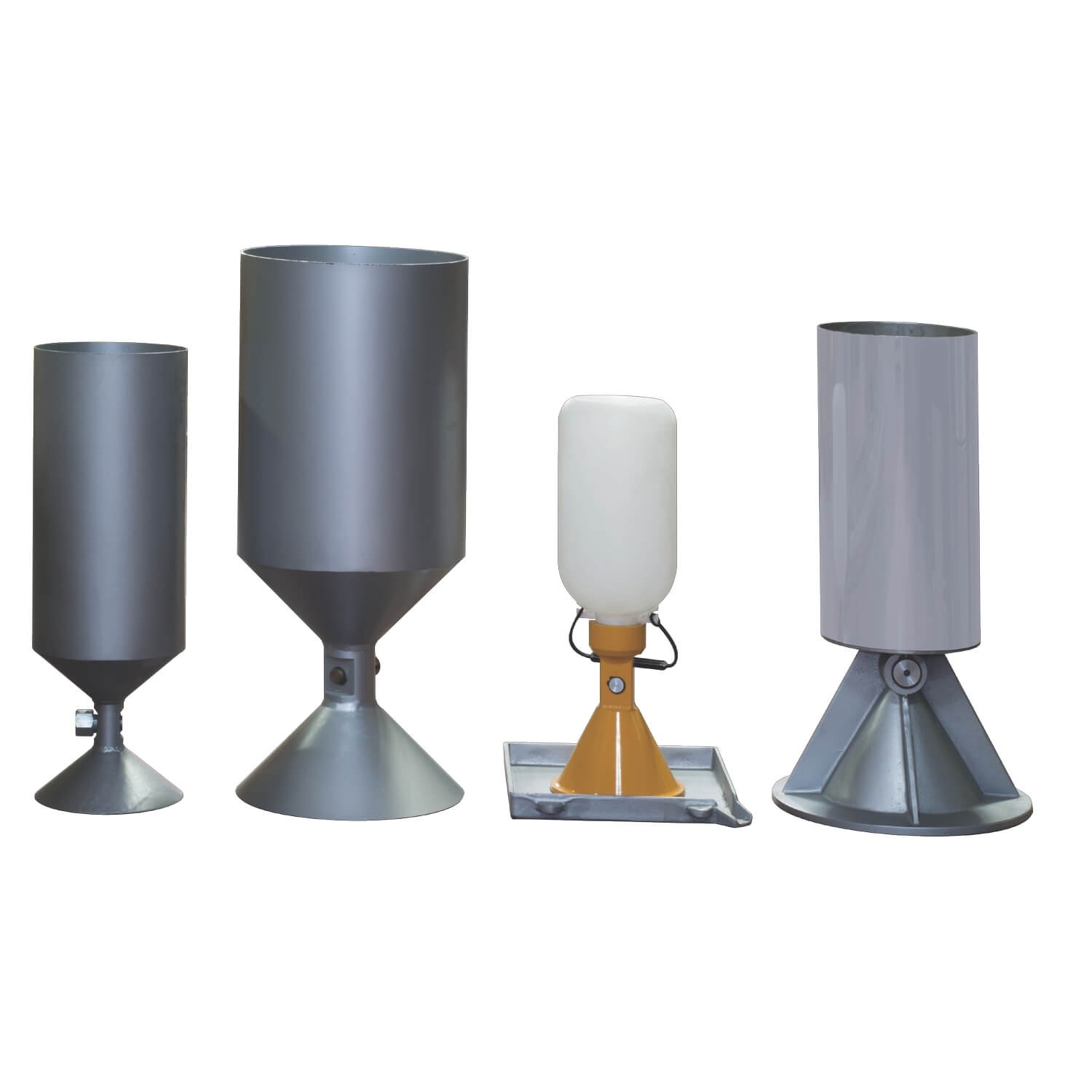

- The set includes a sand cone, base plate, and a sand pouring cylinder or plastic jar, all constructed from durable materials to withstand rigorous field conditions and repeated use.
- Optional accessories, such as calibration containers and standard sand, are available to enhance the accuracy and reliability of test results, aligning with international testing standards.
STANDARDS
ASTM D1556 • AASHTO T191 • BS 1377-9 • BS 1924-2
SET
| ASTM Set | SAND CONE SET – Ø 6.5″ | SAND CONE SET – Ø 12″ |
| Double-Cone | Cast-Aluminum (Ø 6.5″) | Ø 12″ |
| Base Plate | Cast-Aluminum | ✔ |
| Plastic Jar | ✔ | ✘ |
| BS Set | SAND REPLACEMENT TEST SET – Ø 100 mm | SAND REPLACEMENT TEST SET Ø 150 mm | SAND REPLACEMENT TEST SET – Ø 200 mm |
| Cone Diameter | Ø 100 mm | Ø 150 mm | Ø 200 mm |
| Base Plate | ✔ | ✔ | ✔ |
| Sand Pouring Cylinder | ✔ | ✔ | ✔ |
| Calibration Container | Ø 100 mm x 150 mm | Ø 150 mm x 200 mm | Ø 200 mm x 250 mm |
ORDERING INFORMATION
| Item Name | Item Code |
| BASE PLATE for SAND CONE SET – Ø 6.5″ | T061P001H |
| CALIBRATING CONTAINER for SAND CONE SET – Ø 6.5″ | T061P002H |
| CONE for SAND CONE SET – Ø 6.5″ | T061P003H |
| PLASTIC JAR for SAND CONE SET – Ø 6.5″ | T061P004H |
| BASE PLATE for SAND CONE SET – Ø 12″ | T061P005H |
| DOUBLE-CONE for SAND CONE SET – Ø 12″ | T061P006H |
| BASE PLATE for SAND REPLACEMENT TEST SET – Ø 100 mm | T061P007H |
| CALIBRATING CONTAINER for SAND REPLACEMENT TEST SET – Ø 100 mm | T061P008H |
| SAND POURING CYLINDER and CONE for SAND REPLACEMENT TEST SET – Ø 100 mm | T061P009H |
| BASE PLATE for SAND REPLACEMENT TEST SET – Ø 150 mm | T061P010H |
| CALIBRATING CONTAINER for SAND REPLACEMENT TEST SET – Ø 150 mm | T061P011H |
| SAND POURING CYLINDER and CONE for SAND REPLACEMENT TEST SET – Ø 150 mm | T061P012H |
| BASE PLATE for SAND REPLACEMENT TEST SET – Ø 200 mm | T061P013H |
| CALIBRATING CONTAINER for SAND REPLACEMENT TEST SET – Ø 200 mm | T061P014H |
| SAND POURING CYLINDER and CONE for SAND REPLACEMENT TEST SET – Ø 200 mm | T061P015H |
| STEEL PEG | T061P016H |
| STANDARD SAND – 1350 g | T061P017H |
| STANDARD SAND – 25 kg | T061P018H |
| CALIBRATING CONTAINER for SAND CONE SET – Ø 12″ | T061P019H |
| SAND CONE SET – Ø 6.5″ | T061X06AH |
| SAND REPLACEMENT TEST SET – Ø 100 mm | T061X10BH |
| SAND CONE SET – Ø 12″ | T061X12AH |
| SAND REPLACEMENT TEST SET – Ø 150 mm | T061X15BH |
| SAND REPLACEMENT TEST SET – Ø 200 mm | T061X20BH |
