STANDALONE DE-AIRING SYSTEM (T235)

Category: Soil

Product Code: T235

Category: SOIL

Sub-Category: SPECIMEN PREPARATION

  • Used to remove dissolved air from water before it is used in soil mechanics testing, such as triaxial, permeability, and related geotechnical test methods

AVAILABLE MODELS

Standalone De-Airing System:

  • Capacity: 20 lt
  • Equipped with:
    • Magnetic stirrer
    • Front valve panel
    • Tube inlet and outlet
    • Vacuum Pump
  • Tubes outer diameter: Ø 6 mm
  • 220 – 240 V / 50 – 60 Hz

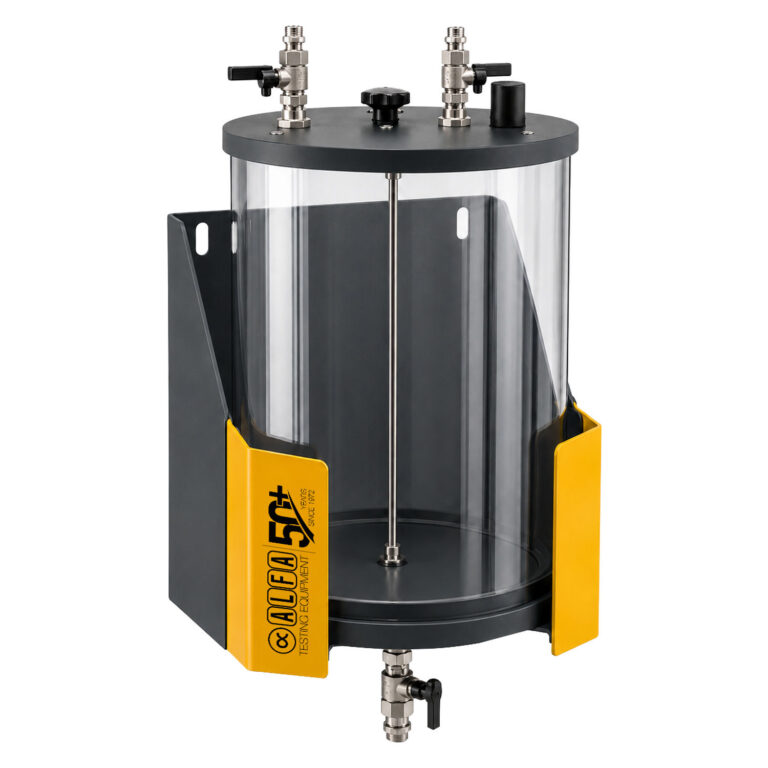

Standalone De-Airing Tank:

  • Capacity: 7 lt
  • Wall-Mounted
  • Equipped with 3 valves:
    • Water Inlet/Outlet Valve (at the bottom)
    • Vacuum Pump Inlet Valve (at the top)
    • Pressure Release Valve (at the top)
  • Tubes outer diameter: Ø 6 mm
  • Tubes and vacuum pump should be ordered separately

ORDERING INFORMATION

Item Name Item Code
STANDALONE DE-AIRING TANK – 7 lt T235H007H
STANDALONE DE-AIRING SYSTEM – 20 lt T235X020U
