Product Code: T575
Category: SOIL
Sub-Category: SOIL CLASSIFICATION
- Determines undrained shear strength of soft to medium cohesive soils on undisturbed, remoulded, or reconstituted specimens using a motorized vane with constant rotation rate and automatic peak capture.
- Fully automatic drive provides standard-compliant rotation control, ensuring repeatable shearing and accurate peak/remoulded strength evaluation with minimal operator influence.
- Integrated software manages test staging (pre-shear, shear, optional remould/second shear), logs torque–angle data in real time, and outputs results and charts suitable for technical reports.
- Interchangeable vane sets and sample-holding fixtures support moulds, jars, and tube samples, enabling rapid testing without extensive re-trimming.
- Ideal for routine laboratory strength profiling and sensitivity assessment as a fast, economical complement to triaxial and unconfined compression programs.
STANDARDS
ASTM D4648 • BS 1377-7
TECHNICAL SPECIFICATIONS
- Rotation Control: Constant-rate motorized drive with ASTM/BS preset ranges
- Measurement: High-resolution torque and angular displacement with live torque–angle plot
- Vane Sets: Assorted vane sizes compliant with ASTM/BS requirements
- Sample Holding: Base plate for moulds/containers; tube-sample clamp (up to standard lab diameters)
- Outputs: Peak strength, remoulded strength, sensitivity (St), vane geometry, rate, correction factors
- Compliance Features: Rotation-rate verification/logging; operator prompts for vane and specimen dimensions
- Software: Test setup templates, real-time charts, tabular results export
- Optional ALFA Cloud integration for secure, real-time data upload, centralized storage, and web access to results.
EQUIPPED WITH
- Motorized vane shear head with constant-rate controller
- Interchangeable vane set
- Base plate for moulds/containers and tube-sample holding attachment
- Digital torque and angular displacement module with connection cable
- PC software for control, visualization, and report output
SUPPLIED WITH
- Assorted vane blades (standard kit)
- Torque verification accessories (as applicable to model)
- Essential clamps, fixtures, and fittings for moulds and tube samples
ORDERING INFORMATION
| Item Name | Item Code |

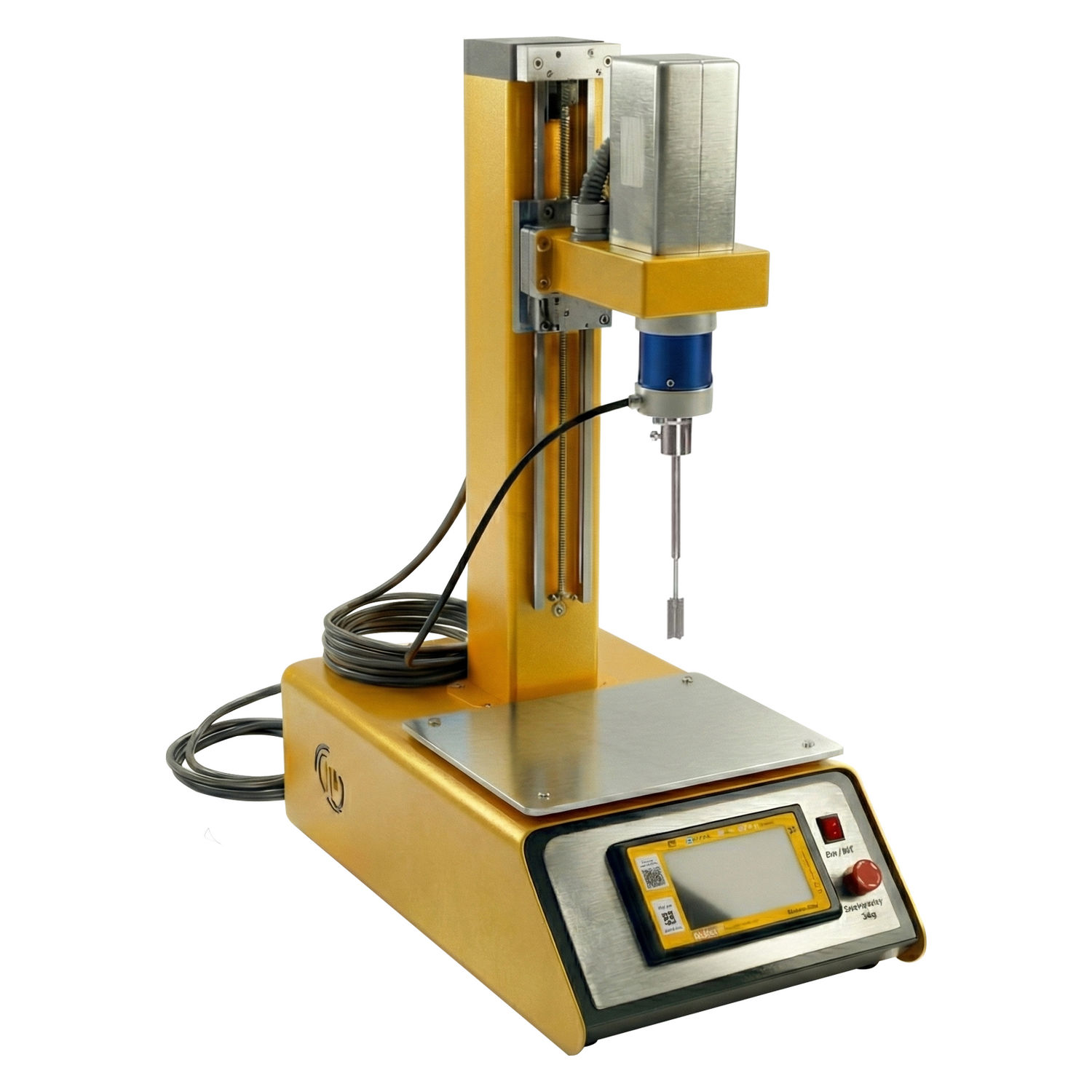

| AUTOMATIC VANE SHEAR TESTING MACHINE | T575A01XU |
