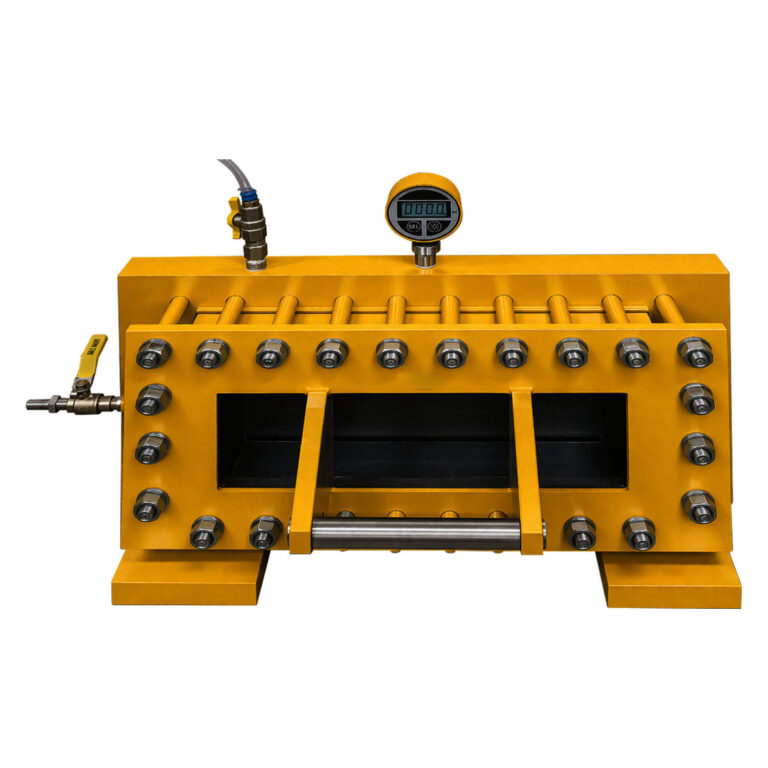

HYDROSTATIC PRESSURE RESISTANCE MOULD of WATERPROOFING MEMBRANES (U067)

Category: Universal

Product Code: U067

Category: UNIVERSAL

Sub-Category: PERMEABILITY

  • Purpose-built rectangular, gasketed pressure fixture for ASTM D5385 hydrostatic pressure resistance testing of waterproofing membranes, including assemblies bonded to concrete substrates.
  • Rigid chamber and clamping bracket create a flat, uniform compression of the membrane and substrate using a continuous flat gasket , replicating the standard’s sealing method and minimizing edge leakage/false failures.
  • Configurable for membrane-only or membrane-on-substrate testing; includes substrate support and spacer system to accommodate concrete blocks or manufacturer-specified backings according to the method.
  • Service-friendly construction with replaceable flat gaskets and fastener hardware; safety features include mechanical relief and over-pressure interlock suited to prolonged dwells at elevated pressures.
  • Pressure Actuator should be ordered separately.

STANDARDS

ASTM D5385

TECHNICAL SPECIFICATIONS

  • Mould can withstand up to 1000 kPa (~ 10 bar)

EQUIPPED WITH

  • Rectangular pressure chamber and mating clamping bracket
  • Continuous flat gasket set
  • Water fill inlet valve
  • Air oulet valve

SUPPLIED WITH

  • Spare flat gasket
  • Bolt set with hardened washers
  • Substrate/support spacers for membrane-on-substrate tests

ORDERING INFORMATION

Item Name Item Code
HYDROSTATIC PRESSURE RESISTANCE MOULD OF WATERPROOFING MEMBRANES U067H10AH
