Product Code: R036
Category: AGGREGATE
Sub-Category: PARTICLE SHAPE

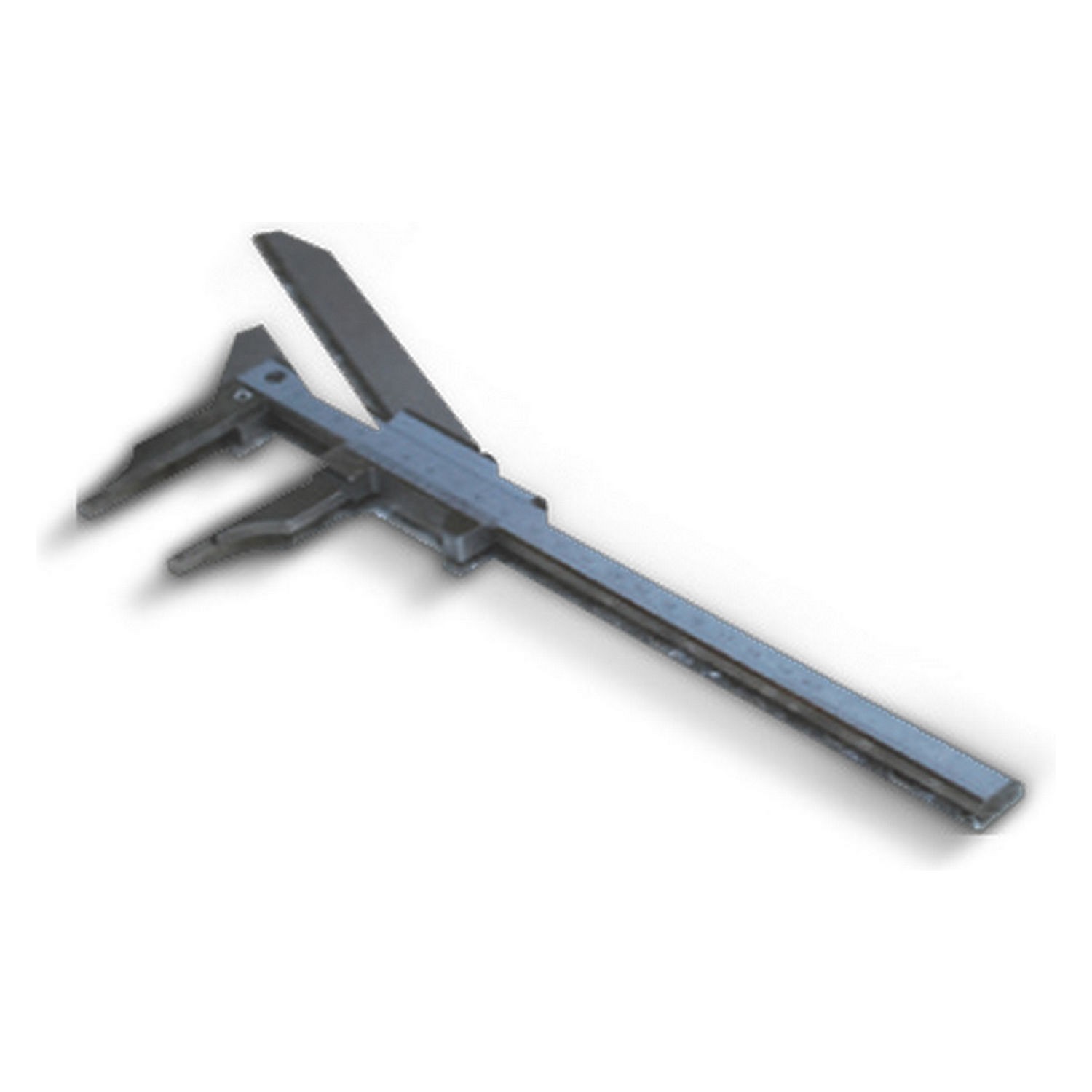

- The Aggregate Shape Gauge is designed to determine the shape index of coarse aggregate particles by assessing the ratio of length to thickness.
- This evaluation is essential for understanding aggregate shape characteristics, which can significantly influence the mechanical properties and durability of construction materials.
- The gauge facilitates the classification of individual particles, identifying those with a length-to-thickness ratio exceeding 3:1, which are considered elongated.
- Constructed from durable steel, the device ensures longevity and compliance with international testing standards.
- The shape index is calculated as the mass percentage of elongated particles relative to the total dry mass of the sample.
STANDARDS
EN 933-4
TECHNICAL SPECIFICATIONS
- Material: Steel
- Measurement Capability: Determines shape index by assessing length-to-thickness ratio of aggregate particles
- Classification Threshold: Identifies particles with length-to-thickness ratio greater than 3:1
ORDERING INFORMATION
| Item Name | Item Code |
| SHAPE GAUGE (Shape Index) | R036X00EH |
