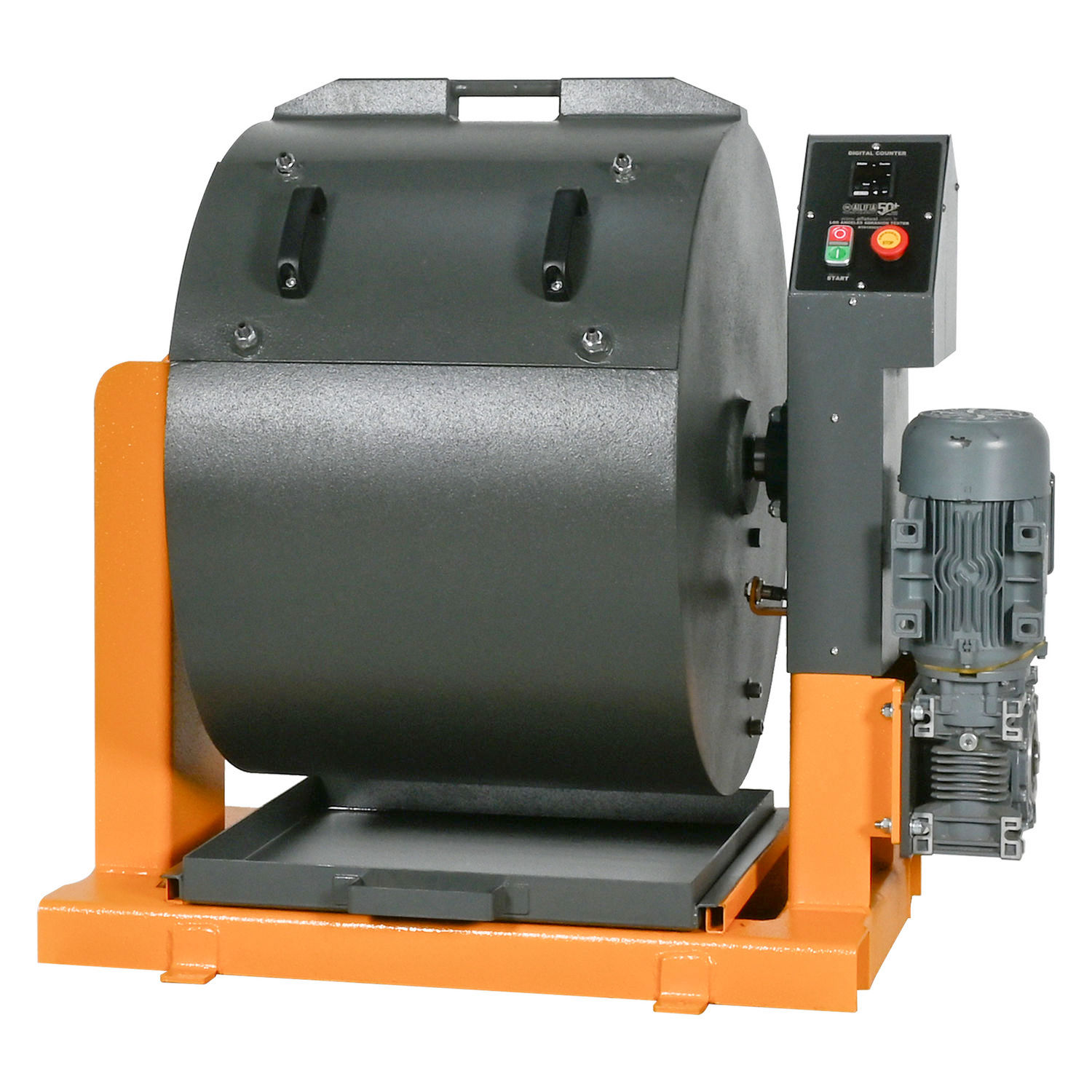

LOS ANGELES ABRASION TESTING MACHINE (R191)

Download DatasheetPrint

Product Code: R191

Category: AGGREGATE

Sub-Category: ABRASION RESISTANCE

• The Los Angeles Abrasion Tester is used to evaluate the resistance of coarse aggregates to abrasion and impact, simulating real-world conditions that aggregates face in pavements and other structures.
• This apparatus assesses the degradation of aggregates through a combination of abrasion, impact, and grinding actions within a rotating steel drum containing a specified number of steel spheres.
• The test provides an indicator of the relative quality or competence of various sources of aggregate having similar mineral compositions, aiding in material selection for construction projects.
• The machine features a robust steel cylinder with a wall thickness of 12 mm, an internal diameter of 711 mm, and a length of 508 mm, ensuring durability and compliance with international standards.
• An automatic digital counter is integrated to display the number of drum revolutions and automatically stop the motor after the required number of revolutions, enhancing test accuracy and repeatability.
• Abrasive Charges and Noise Reduction and Safety Cabinet should be ordered separately.

STANDARDS

ASTM C131 • ASTM C535 • EN 1097-2 • EN 12697-17 • EN 12697-43 • AASHTO T96

TECHNICAL SPECIFICATIONS

• Drum Internal Diameter: 711 mm
• Drum Internal Length: 508 mm
• Wall Thickness: 12 mm
• Rotation Speed: 31–33 rpm
• Digital Counter: Displays drum revolutions; auto-stop feature
• Power Supply: 220 – 240 V / 50 or 60 Hz

SUPPLIED WITH

• Collecting tray for post-test material recovery
