Product Code: A069
Category: ASPHALT
Sub-Category: SURFACE PROPERTIES
- Used for checking planeness/irregularities in concrete and bituminous road surfaces.
- The travelling beam is 3 meters long.
- Deviation of the surface is shown on a scale;
- in increments of 2 mm from 0 – 10 mm
- in increments of 5 mm from 10 – 25 mm
STANDARDS
British Department of Transport
TECHNICAL SPECIFICATIONS
- Length : 3 m
- Equipped with scale (up to 25 mm)
ORDERING INFORMATION
| Item | Code |

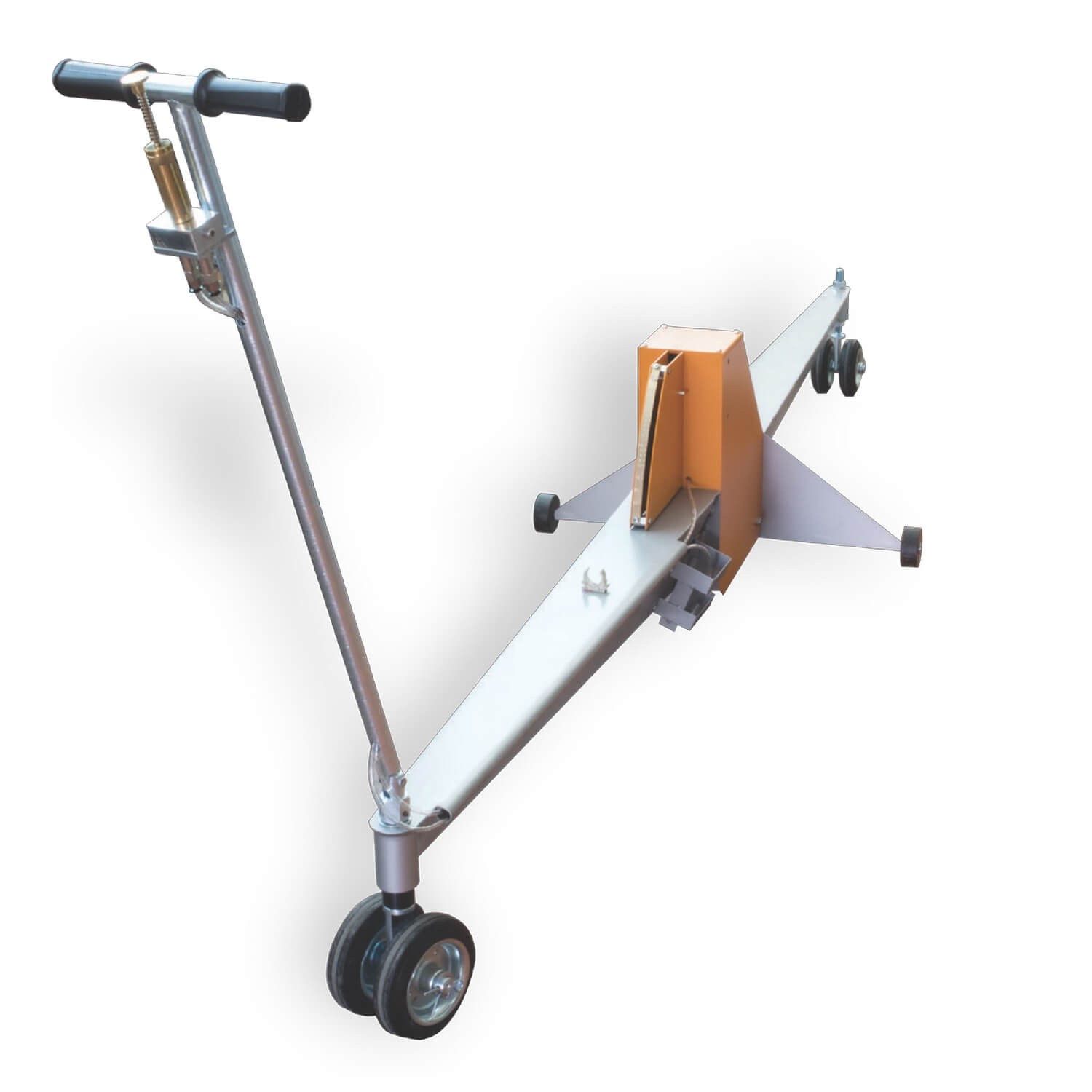

| ROLLING STRAIGHTEDGE, TRAVELLING BEAM (High-Low Detector) – 3 m | A069X03XH |
