Product Code: G906
Category: GENERAL
Sub-Category: GENERAL PURPOSE

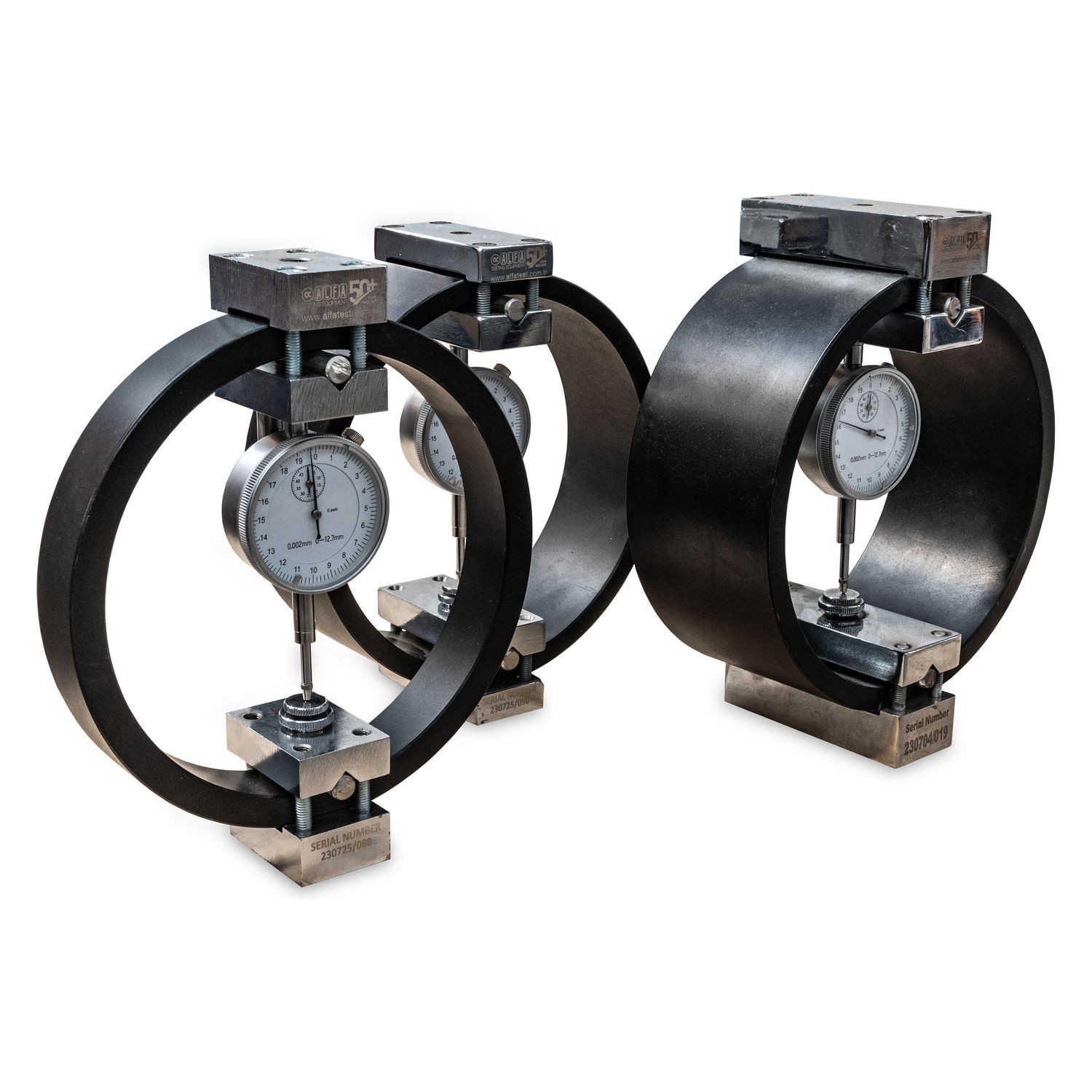

- Proving rings, also known as load rings, are precision instruments designed to measure force or load in various testing and calibration applications.
- They convert mechanical force into measurable deflection, ensuring accurate and reliable load measurements in both laboratory and field environments.
- These instruments are essential for calibrating testing machines, verifying applied loads, and conducting materials testing.
STANDARDS
ASTM E74 • ISO 376 • BS 1610 • EN 10002-3
TECHNICAL SPECIFICATIONS
- Capacity Options:
- 5 kN
- 10 kN
- 30 kN
- 50 kN
- Deflection at Full Load: Not less than 1 mm
SUPPLIED WITH
- Factory Calibration Report
- Durable Carrying Case
ORDERING INFORMATION
| Item | Code |
| LOAD RING – 2 kN | G906X002H |
| LOAD RING – 5 kN | G906X005H |
| LOAD RING – 10 kN | G906X010H |
| LOAD RING – 30 kN | G906X030H |
| LOAD RING – 50 kN | G906X050H |
