Product Code: M041
Category: MINING & COAL
Sub-Category: MINING
- Used wherever accepting the ore to the factory
- There are 4 functions in the system:
- Lifting the sample:
- Capacity of the crane winch is 2000 kg
- Travel beam of the winch is limited by switchers
- Manual controlling device of the winch to be used by operator
- Feeding:
- The bigbag is filled to the feeding tank by using the crane
- The feeding tank is carried on to the sieving system
- The bottom door is opened hydraulically by the operator
- Grading:
- Grading is done by the 3 deck screening
- Each size is collected in the collector
- Weighing:
- Different sizes of the materials are weighed by the platform scale
TECHNICAL SPECIFICATIONS

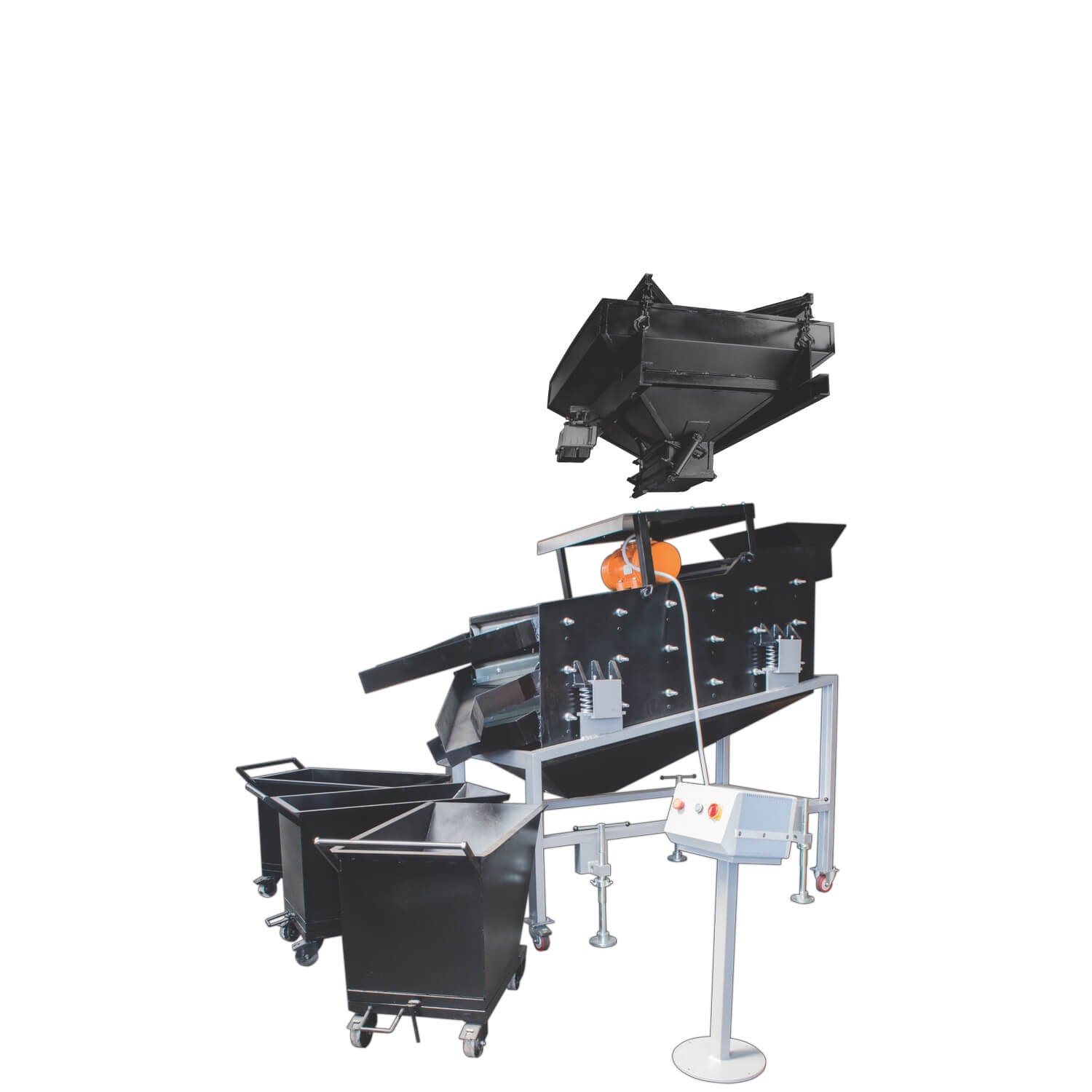

- The system is complete with:
- Platform scale with 2000 kg capacity (digital)
- Crane winch and supporting system with control unit
- Three dech grading machine with each deck 1000 x 2000 mm size
- Feeding tank with capacity of 1500 kg with hydraulic bottom door
- Trolleys made of steel construction (4 pcs)
ORDERING INFORMATION
| Item | Code |
| GRADING and WEIGHING SYSTEM | M041X00XV |
