PROCTOR SET (T050)

image_pdfDownload Datasheetimage_printPrint

Product Code: T050

Category: SOIL

Sub-Category: MOISTURE-DENSITY RELATIONSHIP



  • Used to determine the relationship between molding water content and dry unit weight of soils (compaction curve) compacted in a standard / modified mold with a rammer dropped from a specific height producing a compactive effort
  • Specifying this relationship will help detecting the optimum moisture contact of the compacted soil sample along with its maximum dry density

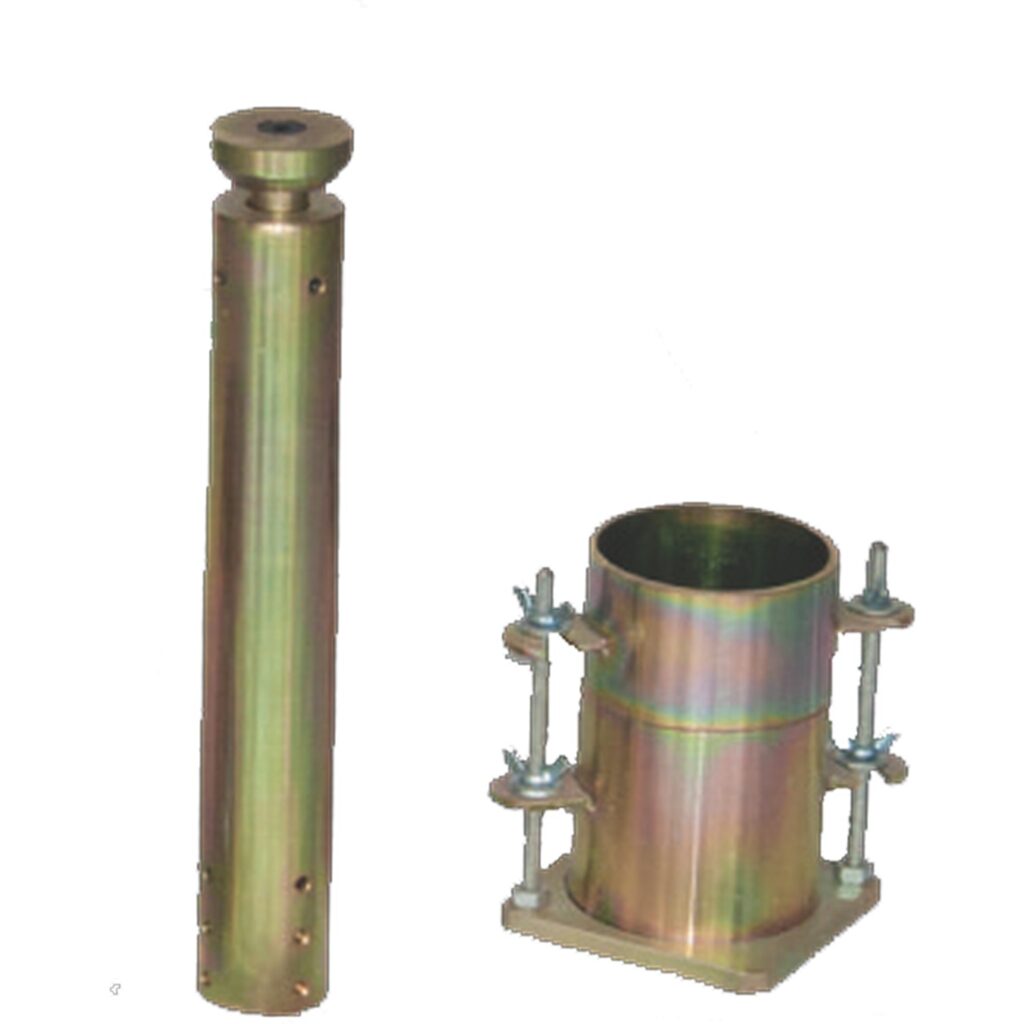

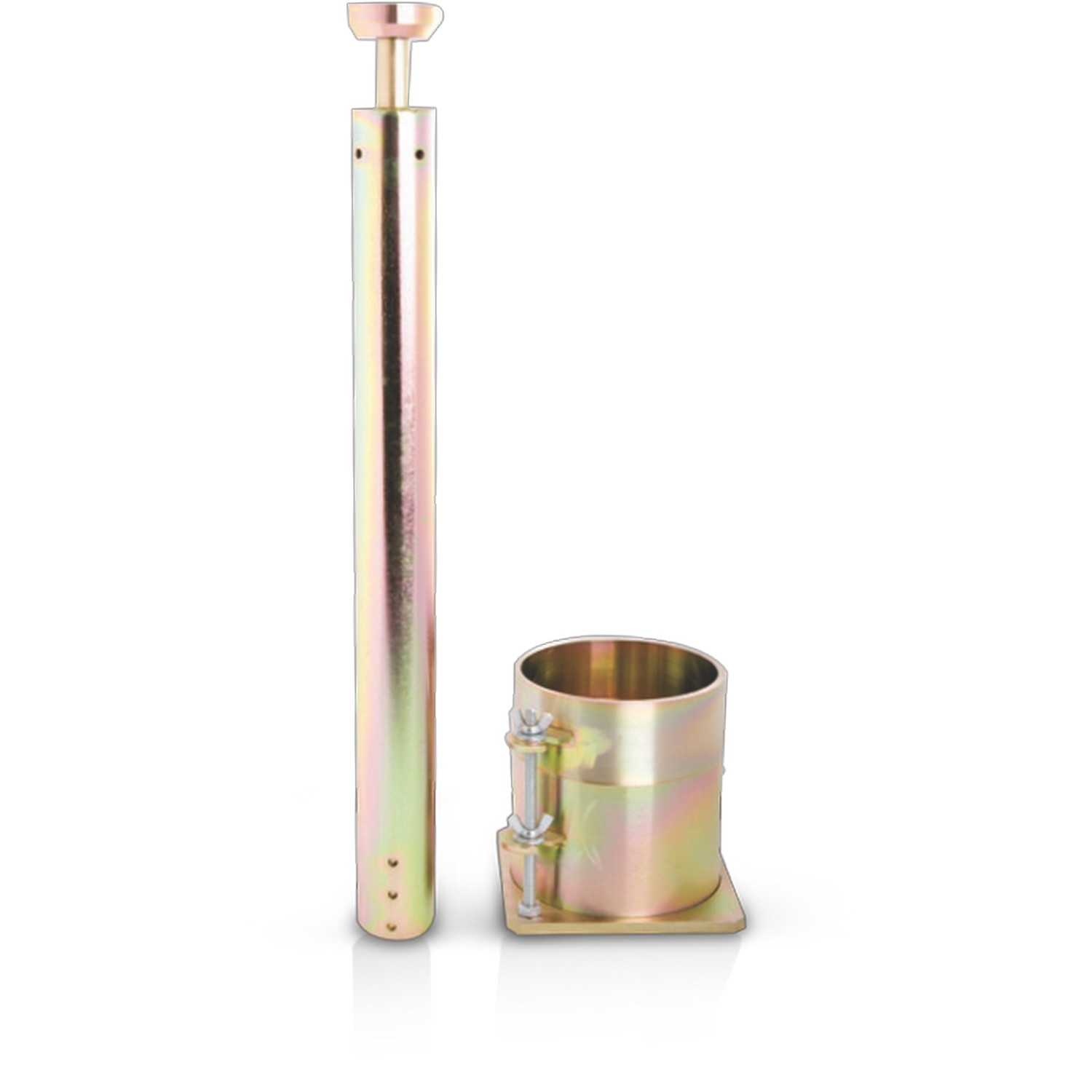

  • The mould composed of base plate, mould body and collar

TECHNICAL SPECIFICATIONS

Item Diameter Height (Drop) Weight
Standard Proctor Mould (ASTM) 4” (101.6 mm) 4.584” (116.4 mm) –
Standard Proctor Rammer (ASTM) 2” (50.8 mm) 12” (304.8 mm) 5.5 lb (2.495 kg)
Standard Proctor Mould (EN) 100 mm 120 mm –
Standard Proctor Rammer (EN) 50 mm 305 mm 2.50 kg
Standard Proctor Mould (BS) 105 mm 115.5 mm –
Standard Proctor Rammer (BS) 50 mm 300 mm 2.50 kg
Modified Proctor Mould (ASTM) 6” (152.4 mm) 4.584” (116.4 mm) –
Modified Proctor Rammer (ASTM) 2” (50.8 mm) 18” (457.2 mm) 10 lb (4.5364 kg)
Modified Proctor Mould (EN) 150 mm 120 mm –
Modified Proctor Rammer (EN) 50 mm 457 mm 4.50 kg
Modified Proctor Mould (BS) N/A N/A N/A
Modified Proctor Rammer (BS) 50 mm 450 mm 4.50 kg

ORDERING INFORMATION
Item Code
STANDARD PROCTOR SET – ASTM T 050 X10A H
STANDARD PROCTOR MOULD – ASTM T 050 P006 H
STANDARD PROCTOR RAMMER – ASTM T 050 P009 H
STANDARD PROCTOR SET – EN T 050 X10E H
STANDARD PROCTOR MOULD – EN T 050 P008 H
STANDARD PROCTOR RAMMMER – EN T 050 P011 H
STANDARD PROCTOR SET – BS T 050 X10B H
STANDARD PROCTOR MOULD – BS T 050 P007 H
STANDARD PROCTOR RAMMER – BS T 050 P010 H
MODIFIED PROCTOR SET – ASTM T 050 X15A H
MODIFIED PROCTOR MOULD – ASTM T 050 P001 H
MODIFIED PROCTOR RAMMER – ASTM T 050 P003 H
MODIFIED PROCTOR SET – EN T 050 X15E H
MODIFIED PROCTOR MOULD – EN T 050 P002 H
MODIFIED PROCTOR RAMMER – EN T 050 P005 H
MODIFIED PROCTOR RAMMER – BS T 050 P004 H
