Product Code: T010
Category: SOIL
Sub-Category: CALIFORNIA BEARING RATIO

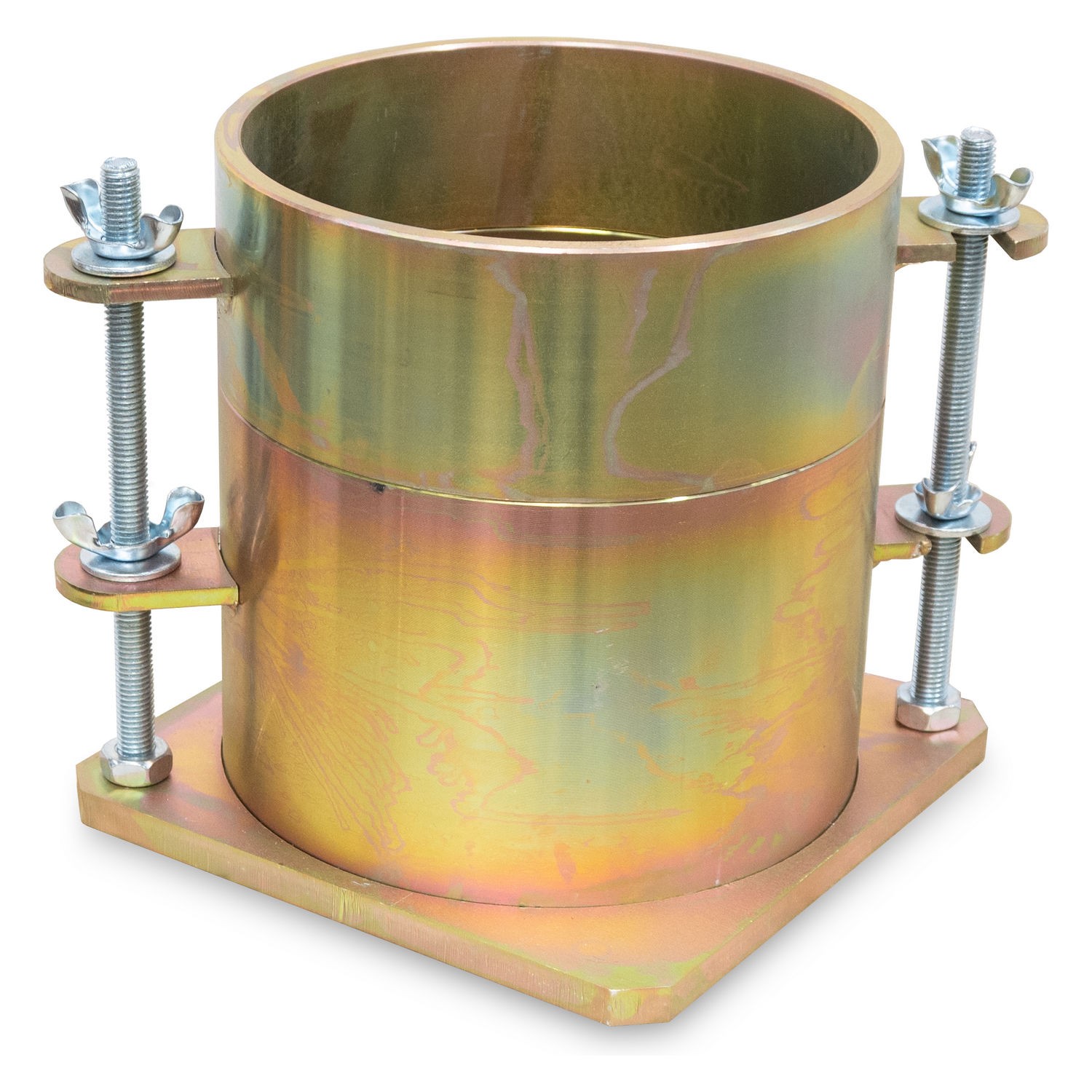

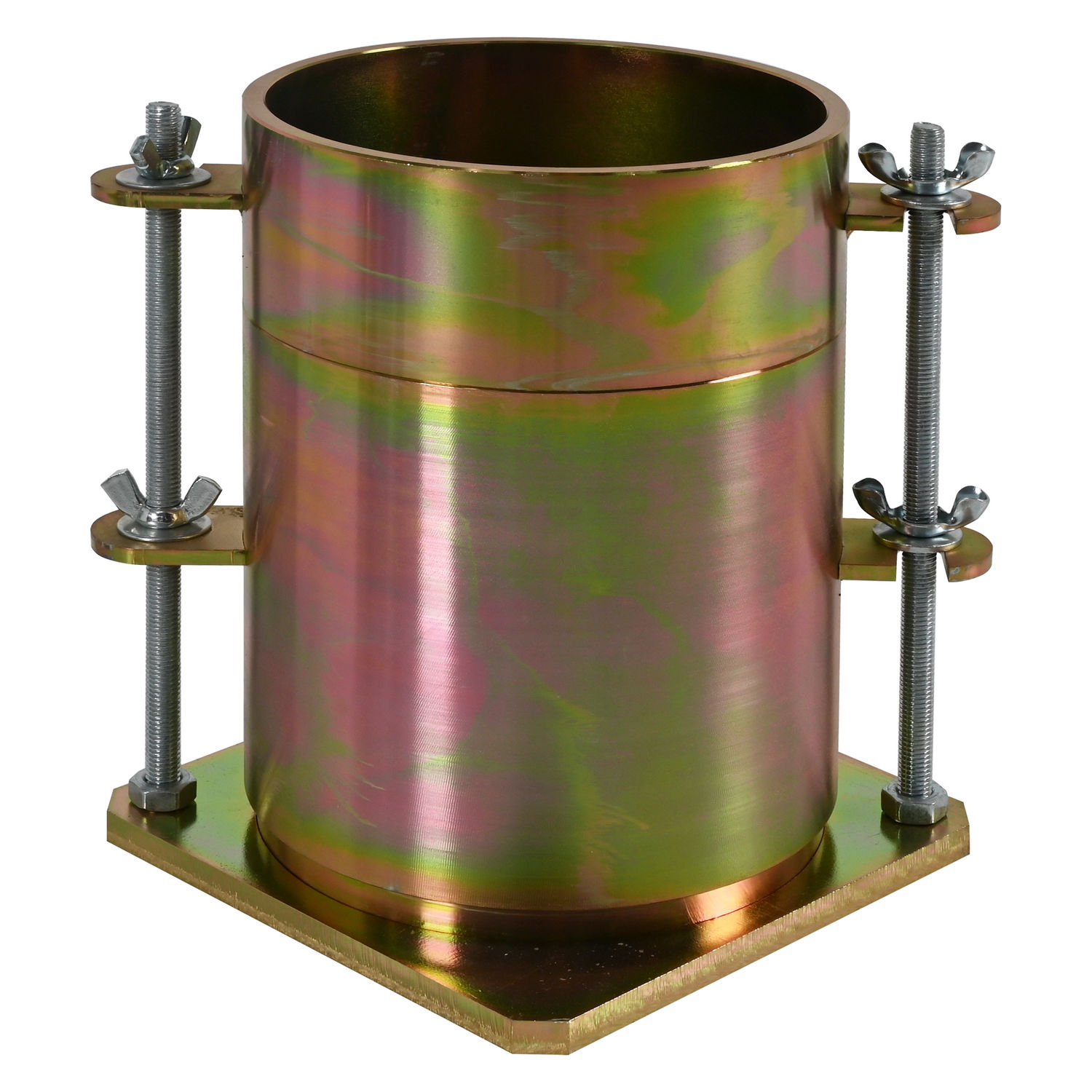

- The CBR Mould is used for laboratory determination of the California Bearing Ratio (CBR) of soil specimens, a critical parameter in evaluating subgrade strength for road construction and pavement design.
- Constructed from steel, coated against corrosion, providing consistent performance over extended periods.
- Each mould set includes an extension collar and a perforated base plate, facilitating proper specimen preparation and drainage during testing.
- The mould is compatible with both manual and automatic compactors, allowing flexibility in laboratory compaction procedures.
- Optional accessories, such as spacer discs, surcharge weights, and filter papers, are available (purchased separately) to accommodate various testing requirements and standards.
- The modular design allows for easy assembly and disassembly, streamlining the testing process and maintenance.
STANDARDS
ASTM D1883 • EN 13286-47 • BS 1377-4 • BS 1924-2 • AASHTO T193
TECHNICAL SPECIFICATIONS
- Base Plate: Perforated, detachable
- Material: Steel, Coated against corrosion
- Construction: Machined to precise dimensions for standard compliance
TECHNICAL SPECIFICATIONS
coming soon …
ORDERING INFORMATION
| Item Name | Item Code |
| COLLAR for CBR MOULD – ASTM | T010P001H |
| COLLAR for CBR MOULD – BS | T010P002H |
| COLLAR for CBR MOULD – EN | T010P003H |
| CUTTING EDGE for CBR – ASTM | T010P004H |
| CBR MOULD BODY – ASTM | T010P005H |
| CBR MOULD BODY – BS | T010P006H |
| CBR MOULD BODY – EN | T010P007H |
| FILTER PAPER – CBR | T010P008H |
| FILTER SCREEN – CBR | T010P009H |
| CBR MOULD – ASTM | T010X00AH |
| CBR MOULD – BS | T010X00BH |
| CBR MOULD – EN | T010X00EH |
| CBR MOULD – NF | T010X00FH |
| CBR MOULD – AS | T010X00SH |
